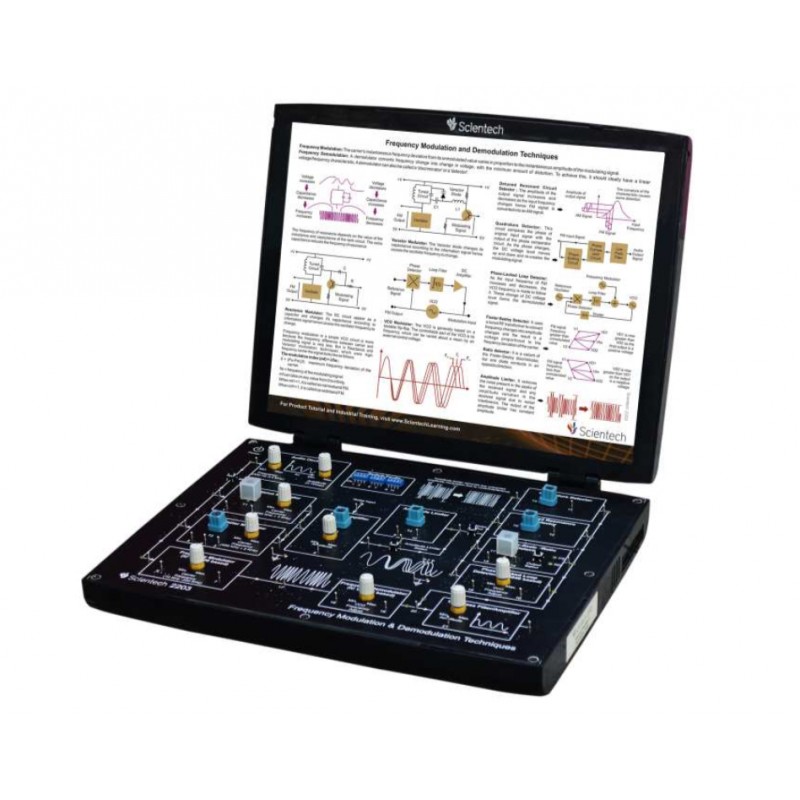

Scientech2203 TechBook for Frequency Modulation & Demodulation Techniques

Block wise modular organization of circuit function with supporting technical information makes it easy to understand the process of FM generation and detection. The exercises conceived to provide a practical approach to the subjects enable a deep analysis of the subjects and will guide the students to understand each function.

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

Product Features:

• A self contained TechBook

• Functional blocks with self explanatory waveforms and technical details indicated on board

• On board Audio Oscillator, Frequency modulators/demodulators, Mixer/Amplifier, Amplitude limiter & Filter circuits

• Effect of noise on the detection of FM signal can be investigated

• LED indication for signal flow and selection

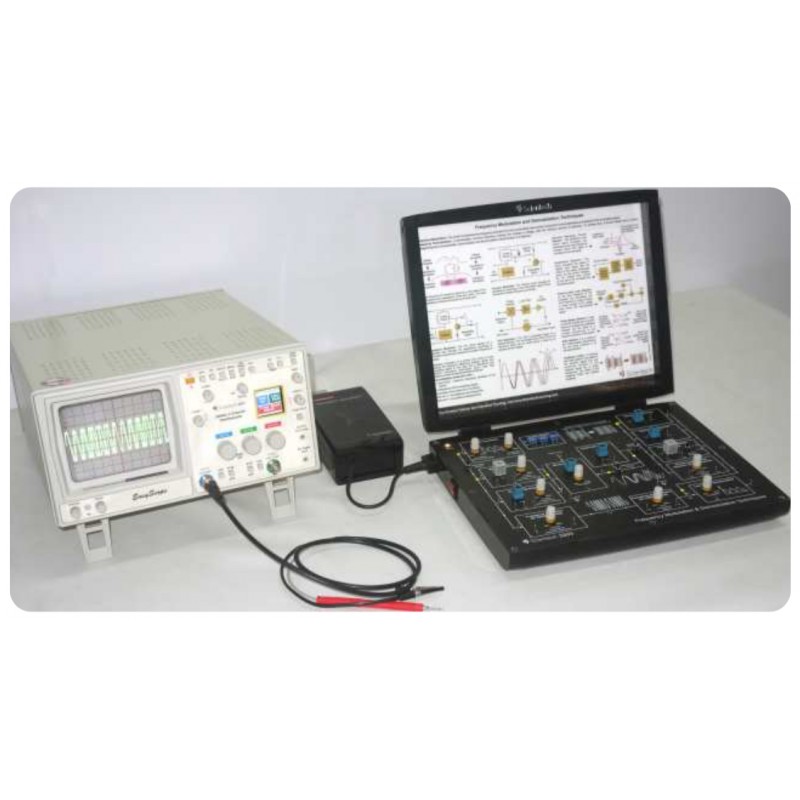

• More than 35 nos. Test points for waveform observation and analysis

• 12 Switched faults for troubleshooting at different functional blocks

• Online Product Tutorial

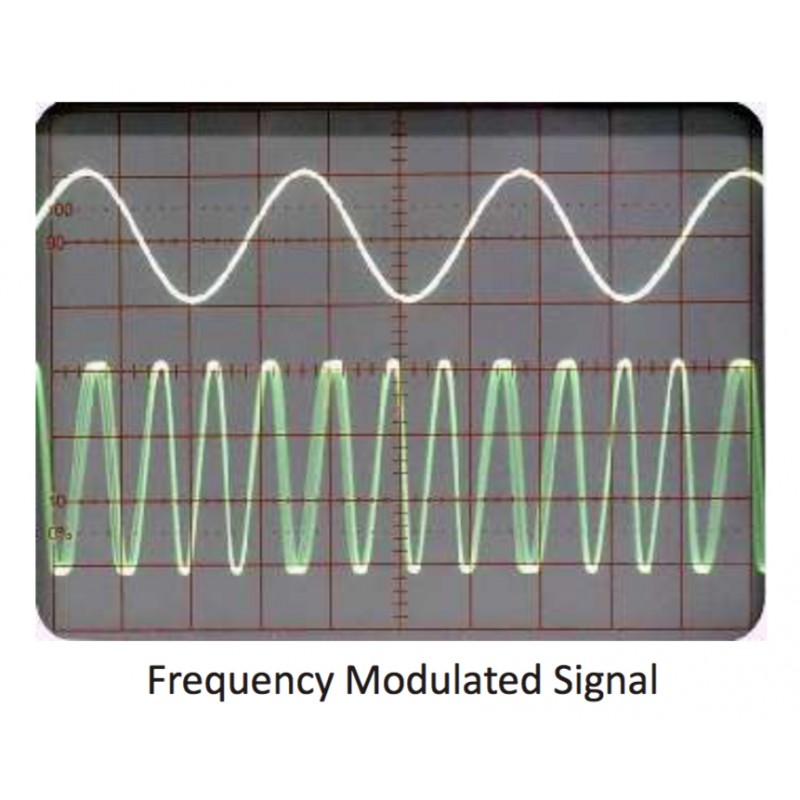

• Frequency Modulation using Reactance Modulator
• Frequency Modulation using Varactor Modulator
• Operation of Quadrature Detector
• Operation of Detuned Resonance Detector
• Operation of Foster - Seeley Detector
• Operation of Ratio Detector
• Operation of Phase-Locked Loop Detector (IC4046 based)
• Frequency Modulation using VCO based Frequency Modulator (IC XR2206 based)
• Phase-Locked Loop detector (IC LM565 based) as a Frequency Demodulator

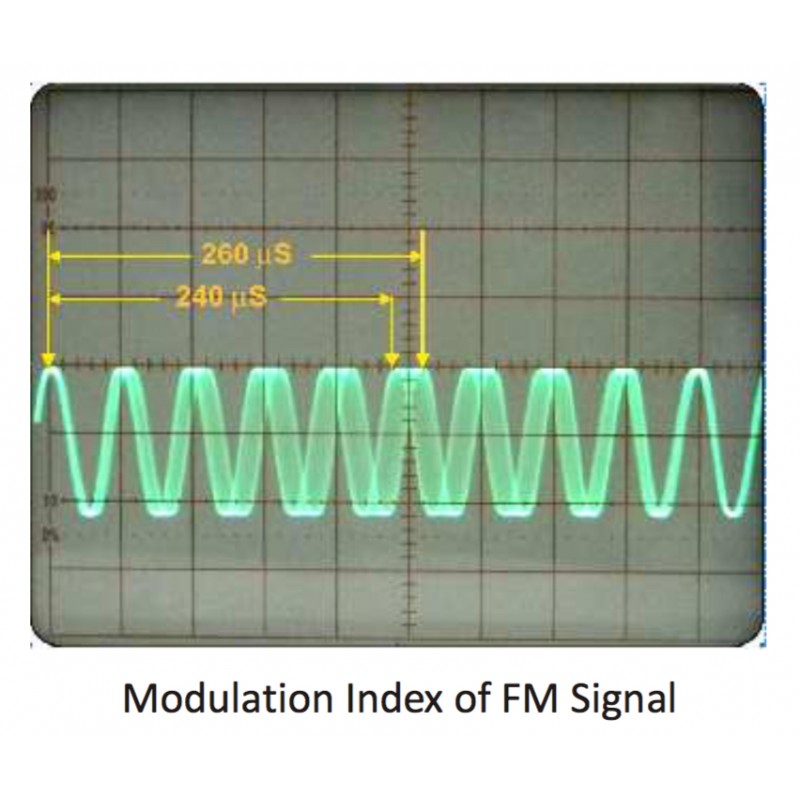

• Frequency deviation and modulation index using VCO based Frequency Modulator (IC XR2206 based)
