Nvis 7068 Single and Three Phase Inductive Load

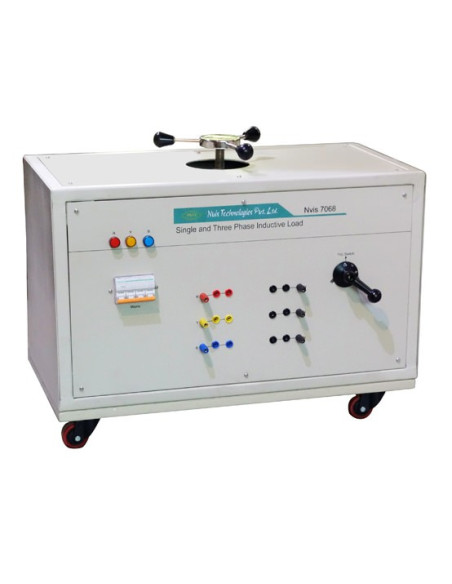

Nvis 7068, Single and Three Phase Inductive Load is an ideal platform to enhance education, training, skills & development amongs our young minds.

All banks of inductors are electrically isolated and separate terminals for each phase are provided on panel through a star/delta switch so that the students can connect as a star or delta load for three-phase circuits. Each bank has a set of switches to bring each inductor into the circuit. This allows students to study the effects of balanced or unbalanced inductive loads. MCB`s are used to change the inductance of the load. Students can connect the loads to experiment circuits using specially designed patch cords on the enclosed front panel. The load is mounted on a trolley to provide facility of easy movement in laboratories.

• Features:

- Suitable for loading Single Phase and Three Phase supply
- Suitable for both static & rotating machines
- Star/ Delta switch provides easy switching
- MCBs are used to switch values and provide protection at the same time
- Heavy duty wheel for easy movement
- Suitable for balanced and unbalanced loading conditions
- Designed by considering all the safety precautions

- Single Phase Operation:
               -- Voltage: 230 V AC ±10 %, 50 Hz
               -- Current: 15 A
               -- Power: 3.5 KVAR
- Three Phase Star Operation:
               -- Voltage: 415 V AC ±10 %, 50 Hz
               -- Current: 5 A (per Phase)
               -- Power: 3.5 KVAR
- Three Phase Delta Operation:
               -- Voltage: 415 V AC ±10 %, 50 Hz
               -- Current: 15 A (per Phase)
               -- Power: 10 KVAR
- Star / Delta Switch: 415 V, 25 A
- MCB: 16 A
- Dimensions (mm): 700 W x 350 D x 500 H
- Weight: 70 kgs (approximate)
