Nvis 6102 Measurement of Susceptibility of Paramagnetic Solution

Nvis 6102 Measurement of Susceptibility of Paramagnetic Solution is a laboratory setup to measure susceptibility of paramagnetic solution by Quinck`s tube Method. Susceptibility refers to that quantity of a substance by virtue of which the substance get magnetized.

In other words, it refers to the extent of induced magnetization in unit field. On the basis of Susceptibility, a substance can be classified as diamagnetic, paramagnetic and ferromagnetic substance, which is an important observation in material science.

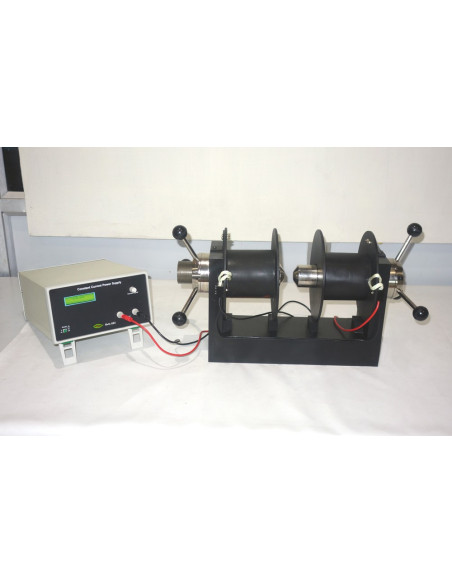

Setup consists of the following equipments:

• Quinck`s tube with stand
• Electromagnet
• Travelling Microscope (optional)
• Gauss and Tesla Meter Nvis 621 with InAs probe
• Constant current power supply Nvis 623
• Paramagnetic sample

Nvis 6102, Measurement of Susceptibility of Paramagnetic Solution is an ideal platform to enhance education, training, skills & development amongs our young minds.

• Quink`s tube is provided with measuring scale
• Provided with a magnifying lens
• Gauss and Tesla meter for measuring magnetic field with LCD and PC interface facility
• InAs Probe for better sensitivity of magnetic field
• Provided with an Electromagnet
• Field direction reversible
• Gap between poles (Minimum 1mm and Maximum upto 40mm)
• Field adjustment smoothly
• Constant current source with LCD display
• Online Product Tutorial
