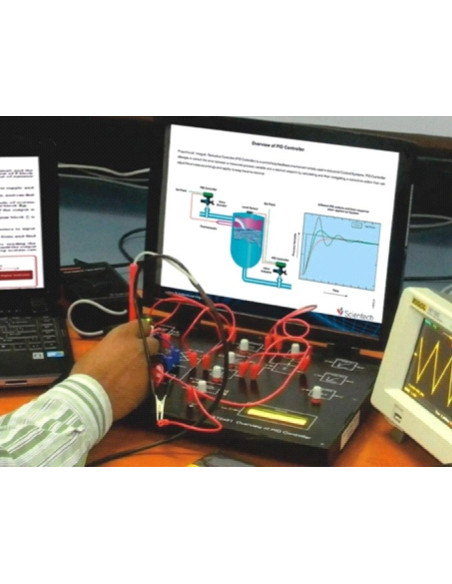

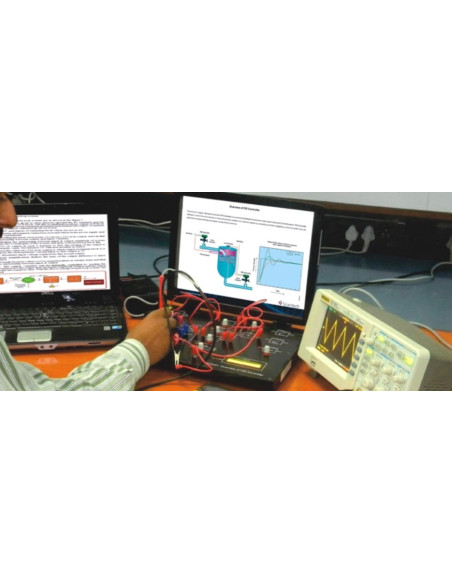

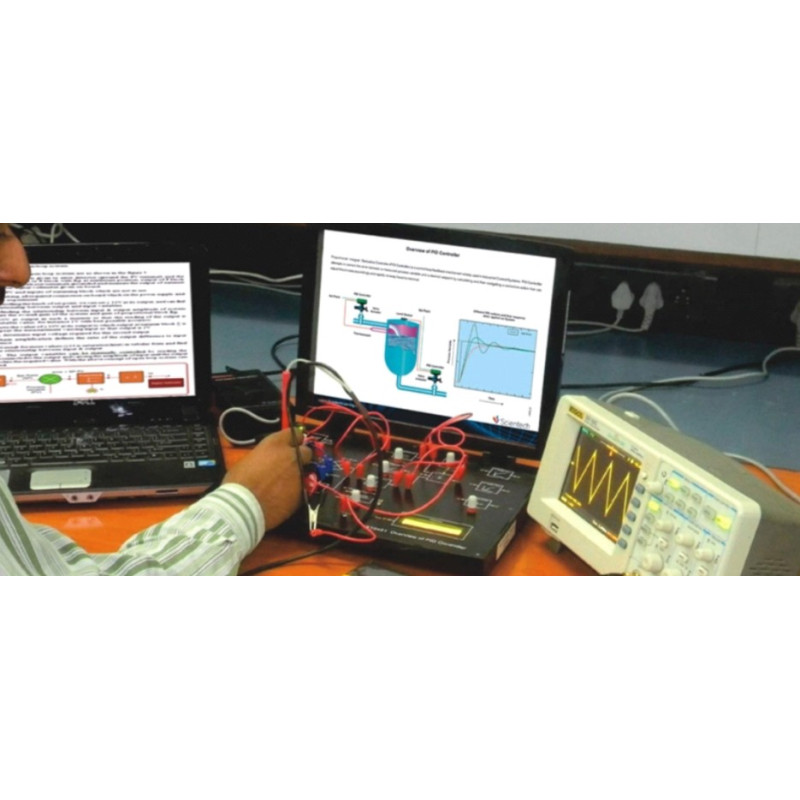

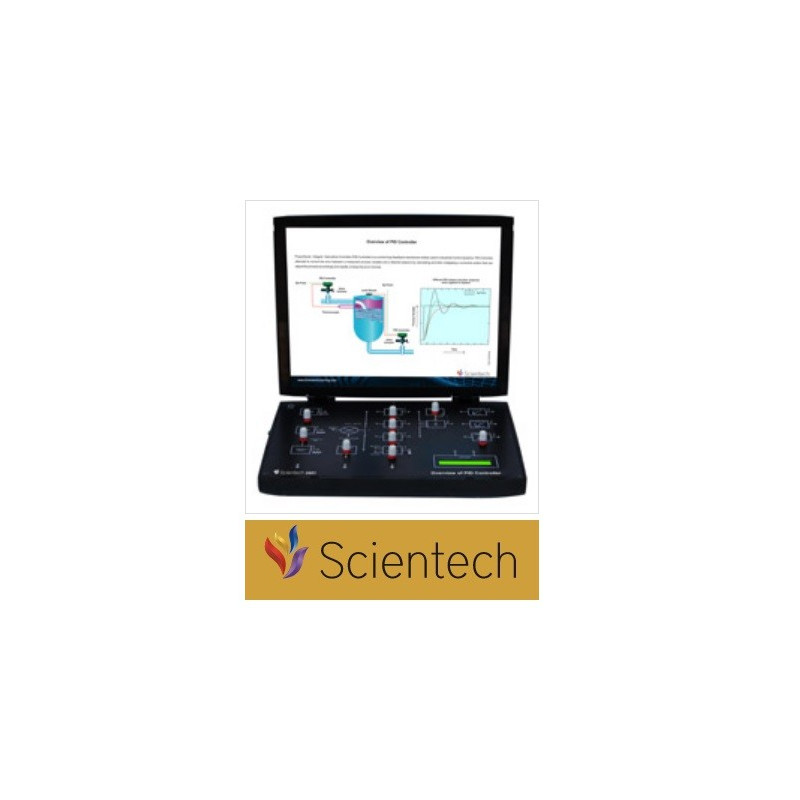

Scientech2451 Overview of PID Controller

View larger

Scientech2451 TechBook for Overview of PID Controller

Reference Scientech2451

Condition: New

Scientech TechBooks are compact and easy-to-use learning platforms to provide a modern, portable, complete and practical way to learn Technology. Each TechBook is provided with detailed multimedia learning material that covers the basic theory, the step-by-step procedure for conducting the experiment and other useful information.
The PID Techbook controllers have been designed to be used by students to investigate PID principles by applying different signals.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
SPECIFICATIONS
EXPERIMENT LIST
Data sheet
Download

Category	PID

Scientech2451 Download (463.56k)

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

In Control System there are different types of Controllers. Study of twoposition mode as ON/OFF Controller and continuous Controller modes as PID controller is a very important part of control engineering. To have a basic idea and practical hands on Controllers PID Techbook has been designed to be used by students to investigate the principles of PID by applying different signals. With Scientech TechBook 2451 Overview of PID Controller Students can study two-position mode as ON/OFF Controller and continuous Controller modes as P-control mode, I-control mode, D-control mode, PI-control mode, PD-control mode and PID control mode. These modes of Controller can be performed individually and also with different combinations in open loop and close loop system.

Users can easily understand the difference between the different modes of Controllers used. Square wave, triangular wave generator variable DC supply as set point and disturbance generator are provided on board.
Effect of PID can be seen on first order system and second order system in open loop and close loop system.

Proportional, Integral and Derivative functions can be checked on same board ( configurable as P,I,D, PI, PD,PID )
ON/OFF controller.
Square and triangular wave with variable frequency for testing PID.
Variable DC for set point.
Error detector.
Ist order system & IInd order system.
In built power supply.
Dead zone and disturbances generator.
Built-in 3 DVM for DC measurement with three range selection.
Voltmeter for DC measurement
Signals can be observed and measured at various blocks
On board Touch Switch
