Nvis 630 Data Acquisition Card

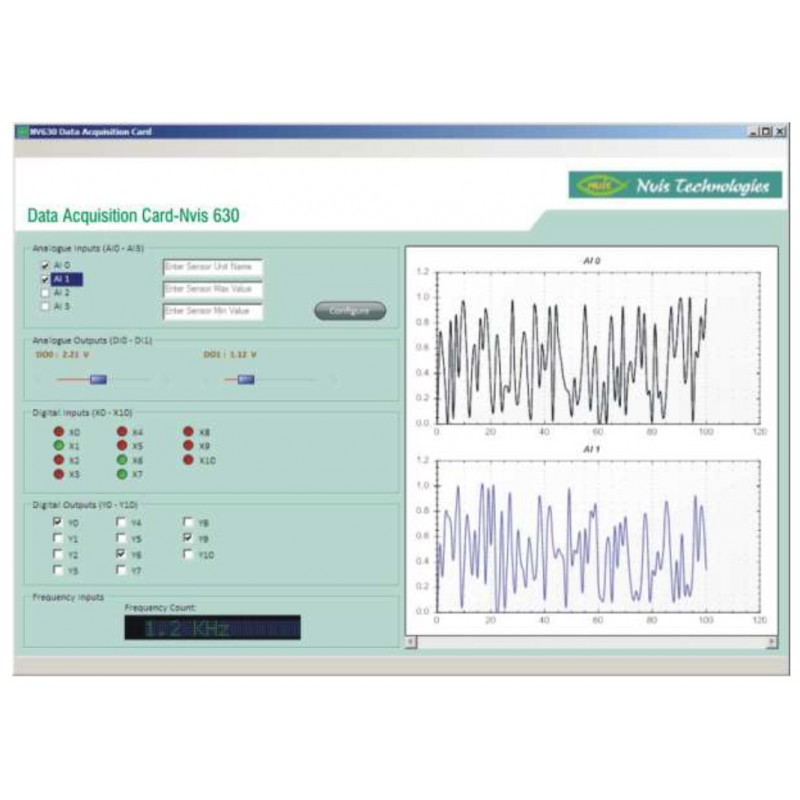

Nvis 630 Software

Nvis 630 Data Acquisition Card

Nvis 630 Data Acquisition Card

Nvis 630 Software

Nvis 630 Data Acquisition Card

Nvis 630 Data Acquisition Module

Reference: Nvis630 - Manufacturer: NVIS TECHNOLOGIES

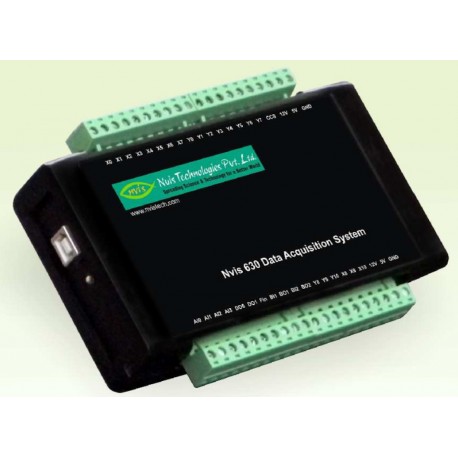

Nvis 630 Data Acquisition System is very useful for sensing and controlling Analog and Digital signals for any process.

It facilitates the interfacing of real world signals with PC through the USB bus. Screw terminals are provided for easing connections.
All pins are multi-functional and user can change the operation of selected pins as per the requirement.

4 Analog Inputs
2 Analog Outputs
22 digital Inputs and outputs
Two unity gain amplifiers given to strengthen the weak signal from any sensor
User can change I/O as per need
Removable screw terminals for easy signal connectivity
User can make desired software by using VB6 or VB.net
Multifunction board to control from PC using USB
User friendly software

Number of Channels: 4 Analog I/P's, 2 Analog O/P's, 22 Digital I/O
ADC Bits: 10 bit
With Display: No
IP Classification: Indoor IP50
Communications: USB
Battery Life: 12 Vdc external supply
Maximum Pulse Rate: 6 MHz
Category: Data Logging

Download (224.44KB)
