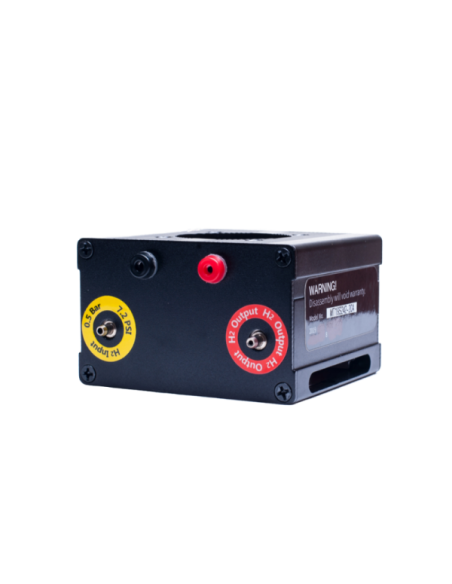

FCS-B20 H-20 PEM Fuel Cell 20W

Reference: FCS-B20 - Manufacturer: Horizon Educational

20 W PEM fuel cell with integrated fan for advanced STEM projects, lab work, and hands-on hydrogen learning with clean, stable power.

€339.00
Tax excluded Envío: 3 a 6 semanas



FCS-B20 H-20 PEM Fuel Cell 20W takes renewable energy projects to the next level with a powerful, efficient hydrogen system designed for advanced learning and dependable performance. It delivers up to 20 W of clean, reliable power for ambitious STEM applications, classroom integration, and hands-on exploration of fuel cell technology.

An integrated cooling fan improves thermal management and durability during extended use, helping the stack maintain stable output in both educational and prototyping environments. Its flexible design and real-world relevance make it ideal for students, educators, and innovators working with sustainable energy concepts.

Beyond power generation, the H-20 helps users examine stack behavior, system electrical requirements, humidification, and the safety practices involved in hydrogen-based operation.

  • Rated power: 20 W.
  • Number of cells: 13.
  • Required hydrogen pressure: 0.45-0.55 bar.
  • Recommended ambient temperature: 5-30 C.
  • Self-humidifying operation.
  • Stack weight including fan and casing: 275 g.
  • System efficiency at full power: 40%.
  • Performance: 7.8 V at 2.6 A.
  • Hydrogen consumption at rated power: 0.28 l/min.
  • Dimensions: 7.5 x 4.7 x 7.0 cm.

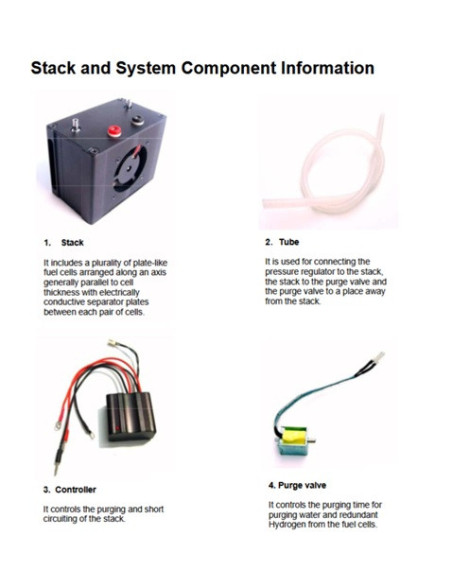

  • Included components: 1 filter, 2 black plastic pins, 1 valve, 2 M3-4 inlet/outlet gas fittings, 1 x 20 W fuel cell stack, 1 controller, and 1 silicon tube 50 cm long.
  • Safety: do not connect or disconnect cables while powered, do not disassemble the unit, and always operate in a well-ventilated area with a highly accurate hydrogen sensor.
