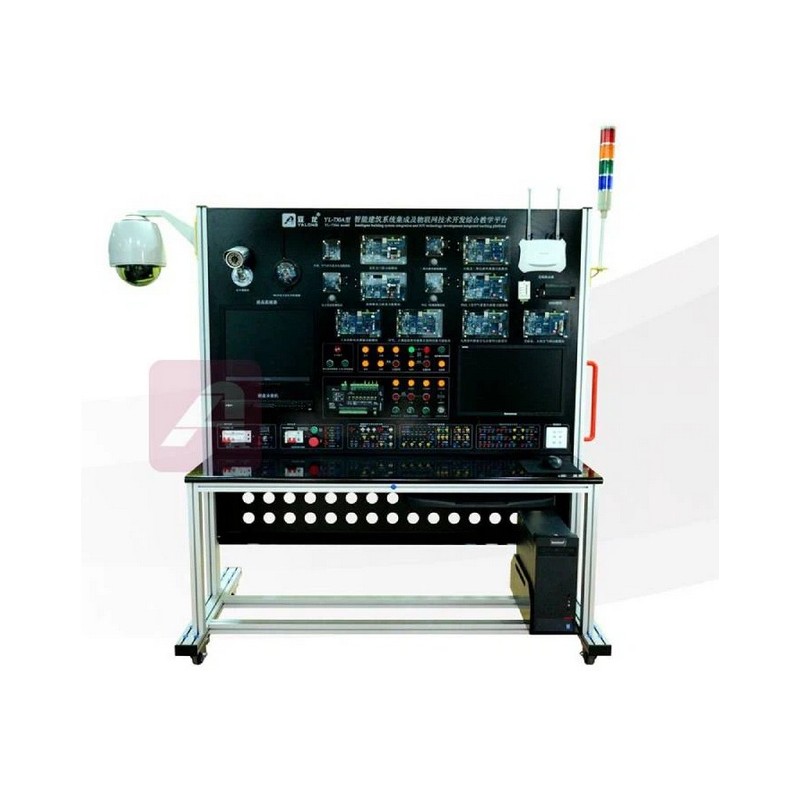

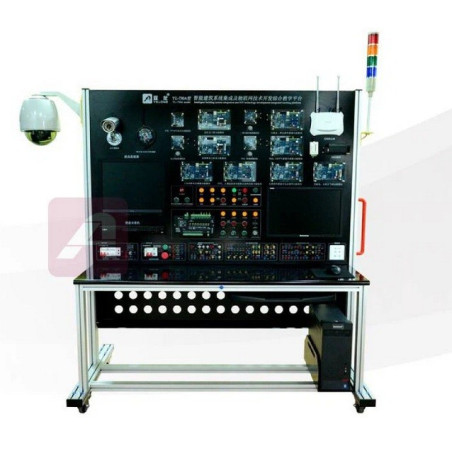

YL-730A IoT Internet of Things Technology Training Equipment

Reference: YL-730A - Manufacturer: Yalong Intelligent

◆ The YL-730A Intelligent Building System and IoT Technology Training Equipment integrates a platform, an alarm and power monitoring module, a safety plug terminal module, a system master control device, system load simulation components, and related programming development software.

help_outlineAsk for Quote

YL-730A IoT Internet of Things Technology Training Equipment

I accept privacy policy rules



► The platform is equipped with an aluminum structure, a fireproof panel, a heavy-duty electrical box, and more. The power monitoring and alarm module is equipped with trip override protection, short-circuit detection protection, and alarm indication functions.

► The safety plug terminal module is equipped with a high-insulation safety plug and a high-strength safety socket, which can distinguish various plug and socket specifications with strong and weak currents, ensuring the safety of operating personnel.

► The system master control device is equipped with a real intelligent building central master control device and an embedded ARM system bus network IoT system, enabling complete applications in wiring, programming, configuration, integration, commissioning, operation, diagnosis, and secondary design. The system load simulation components are equipped with the required analog input and output loads.

► The programming development software is equipped with development software related to IoT network technology, with fully open source code and communication protocols.

● Power Input: Single-phase, three-wire / AC 220V/50Hz

● Safety Protection: Grounding/Leakage (action current less than or equal to 30mA)/Overvoltage/Overload/Short-circuit, Stall Protection

● Total Power Consumption: Less than or equal to 100W (no computer, computer less than or equal to 300W)

● AC Power Output: Dual-path isolation

● DC Power Output: 5V DC/2.5A, 12V DC/2A, 24V DC/1.5A

● Adjustable DC Power Output: DC 0-30V/2A

● Total weight: 200 kg

● Dimensions (length x width x height)

1580 mm x 720 mm x 1760 mm (frame part)

2040 mm x 720 mm x 1760 mm (fixed with spherical camera on both sides and warning lights)
