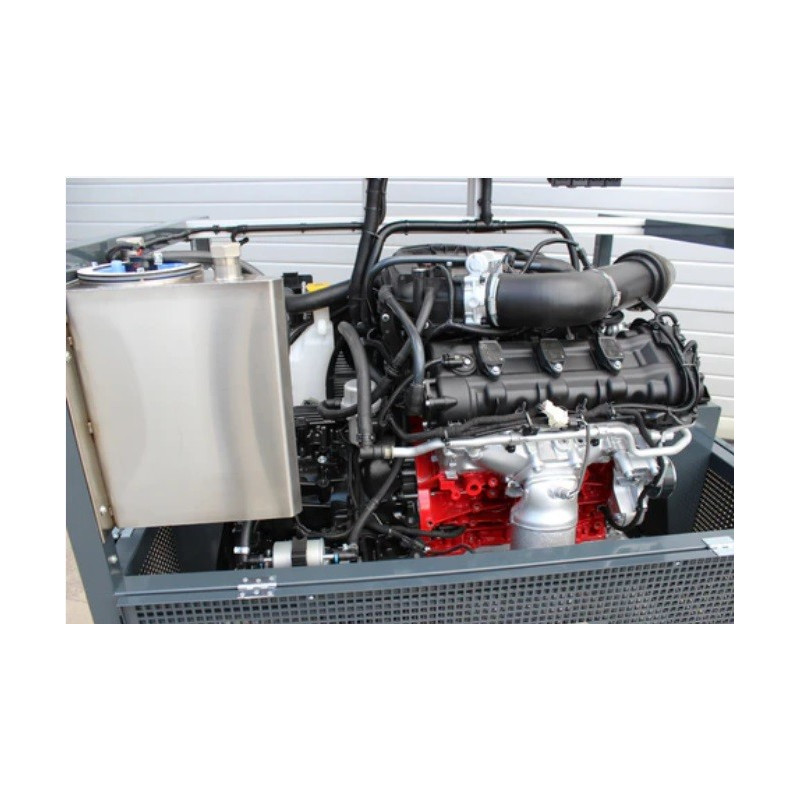

AutoEDU MVMPI03-V6 New Innovative Engine Model - New learning experience

The system’s parameters can be measured by connecting to the banana connectors. This allows the measurement of electrical signal parameters for each system component, including sensors and actuators, and the high voltage circuit of the ignition system.

Diagnosis is conducted through an OBD 16-pin diagnostic connector, enabling electronic control unit (ECU) identification, reading and erasing fault codes, displaying operating system parameters (live data), actuator tests (depending on the control unit), and control unit coding/configuration.

Additional Features:
The training stand has a closed structure, with internal wiring hidden from view. An integrated instrument cluster, measurement, and fault simulation panel are encased in a robust aluminum frame construction. The system dimensions are approximately 1300 x 1100 x 1450 mm, and it weighs around 490 kg. This equipment is manufactured in the EU and holds a CE certificate, ensuring compliance with safety and quality standards.

This advanced automotive training equipment is an invaluable resource for professional teachers and technicians. It aids in explaining to students the intricate processes and technology involved in the Educational Petrol Engine Trainer with Multipoint Injection System (MPI) MVMPI03-V6 AutoEDU. This tool is poised to revolutionize vocational automotive education, providing students with hands-on experience and a deeper understanding of modern automotive technology.

This educational engine model includes a fuel supply system, instrument cluster, cooling system, power supply system, and exhaust system. It is equipped with removable safety panels to protect against hot and rotating parts, ensuring safe hands-on learning. The system comes with an electrical wiring diagram and built-in banana plug jumpers, allowing the measurement and simulation of over 20 fault codes. Removing the safety panels provides clear visibility and easy access to the engine and its components for service and maintenance. An integrated engine emergency stop button adds an extra layer of safety.
