Nvis 6501 Laboratory for Experimentation with Diodes

Reference Nvis6501

Condition: New

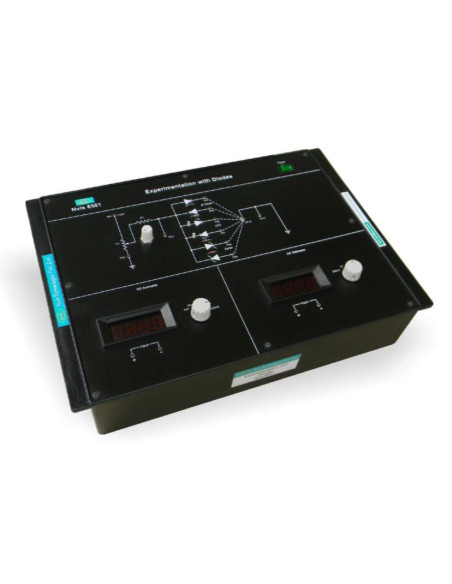

Nvis 6501 Laboratory for Experimentation with Diodes very useful for basic Electronic Laboratories. This is useful for students to plot different characteristics of diode in all different type of configurations and to understand various region of operation of diode. This is a stand alone unit with inbuilt DC power supply and inbuilt Voltmeter and Ammeter. This is a complete system to study the diode characteristics. It is designed such that student can easily plot the forward and reverse characteristics of different Diode.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
List of Experiments
Data sheet
Download

Category	Laboratories

Nvis6501 Download (174.94k)

Nvis 6501 Laboratory for Experimentation with Diodes is an ideal platform to enhance education, training, skills & development amongs our young minds.

Features:

- A complete system to study the diode characteristics
- Forward and reverse characteristics experiment can be performed on this trainer kit
- Silicon, Zener and Light Emitting Diode (LED) are provided with this system
- Inbuilt Ammeter and Voltmeter are provided
- Digital display for displaying voltage and current
- Different test points are provided
- Online product tutorial

- Study of V-I characteristics of Silicon Diode
- Study of V-I characteristics of Zener Diode
- Study of V-I characteristics of Light Emitting Diode (LED)
