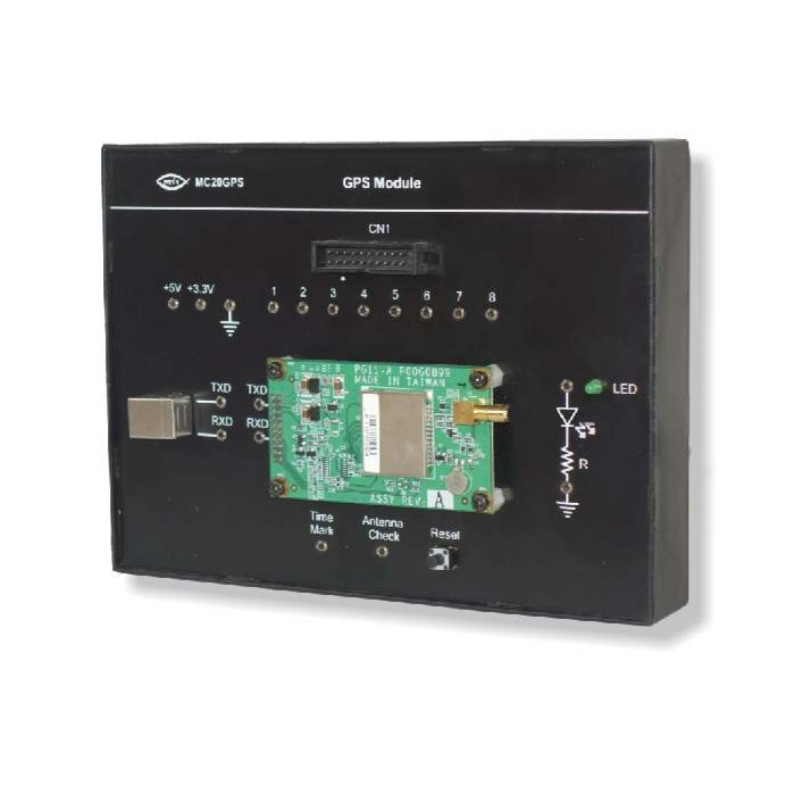

MC20GPS GPS Module for Embedded Platforms

It has various terminals for connection to external real world applications. Nvis GPS module will provide a basic understanding of the GPS fundamentals, Satellites & Design aspects of GPS receiver by actually connecting to the Satellite by GPS antenna.

MC20GPS GPS Module for Embedded Platforms is an ideal platform to enhance education, training, skills & development amongs our young minds.

• Features:

- 12 channel GPS & carrier
- Fast Cold/Warm/Hot start TTFF time of 45/38/8 sec
- Fast requisition time of 0.1 second

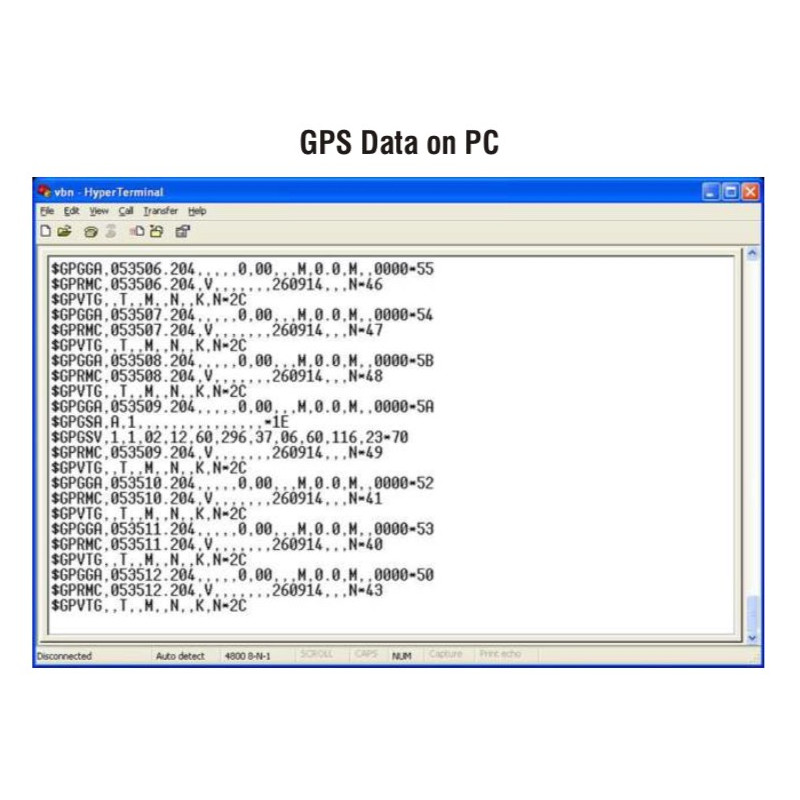

- NMEA 0183 Ver 2.2 GGA, GLL, GSA, GSV, RMC and VTG standard output
- SiRf binary protocol output
- On board real time RTCM SC-104 differential
- 1PPS (one pulse per second) signal
- USB powered
- USB for PC communication
- GPS Software for analysis
- Expansion connectors for plug in with Microcontroller unit and prototyping area

- Channel: 12
- Receiver Frequency: 1575.42 MHz
- Position Accuracy: 25 meters CEP without SA
- Velocity Accuracy: 0.1 meters/second, without SA
- Time Accuracy: Synchronized to GPS time
- Update rate: 1 sec.
- Receiver Sensitivity: -175 d
- Serial Communication: 4800 Baud Rate (default)
- Protocol Messenger: NMEA0183 V 2.2, SiRf binary & RTCMSC-104 V2.0 type 1,2,9
- Maximum Speed: 515 meters/sec.
- Maximum Altitude: 18000 meters
- Time to First Fix: 45 / 38 / 8 sec
- Power Supply: From Scientech 620X series or Nvis 500X series Microcontroller development platforms
- USB: 5V
- Power Consumption: 2 VA approximately
- Dimensions (mm): W 326 × D 252 × H 52
- Weight: 0.8 kg.
- Product Tutorial: Online (Theory, procedure, reference, results, etc).
- Included Accessories:
      -- B-Type USB Cable: 1 no.
      -- GPS antenna: 1 no.
- Optional accessory:
      -- Battery

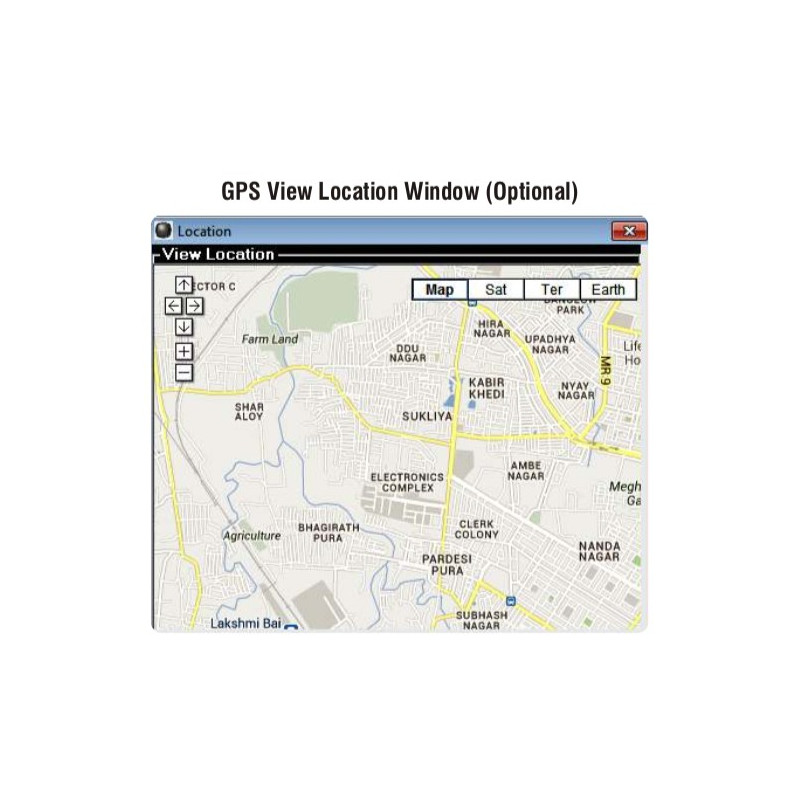

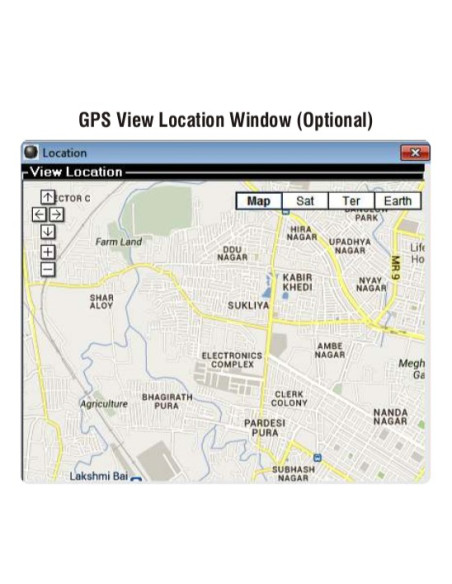

      -- GPS Software


+ Note:
1. This module is compatible with Scientech 620X series and Nvis 5001A/2/3/4/4A/5 series Microcontroller development platforms.
2. To run MC20GPS module with Nvis 5004, add-on board is required.
