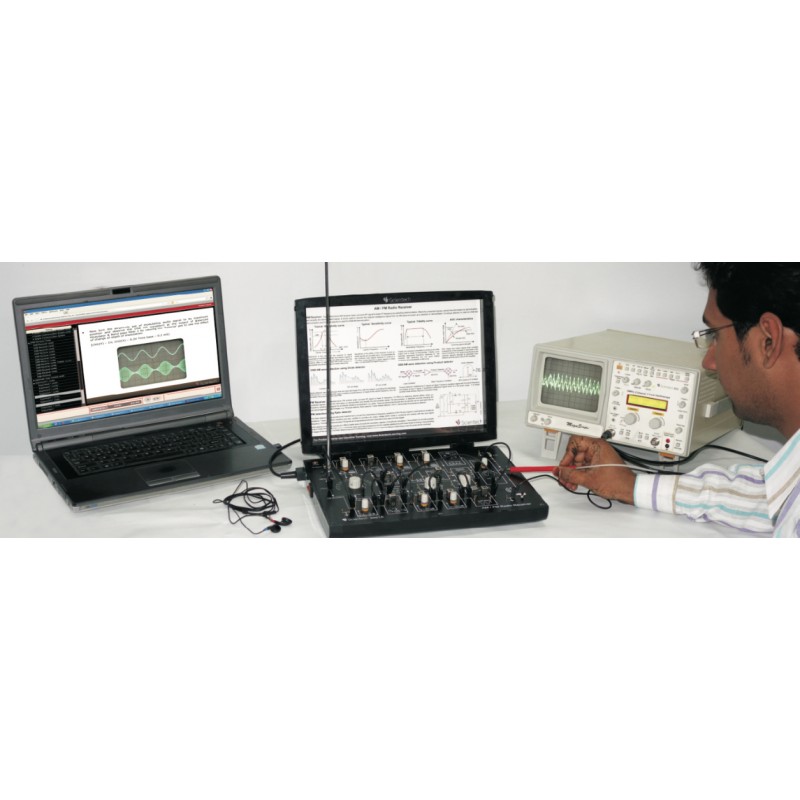

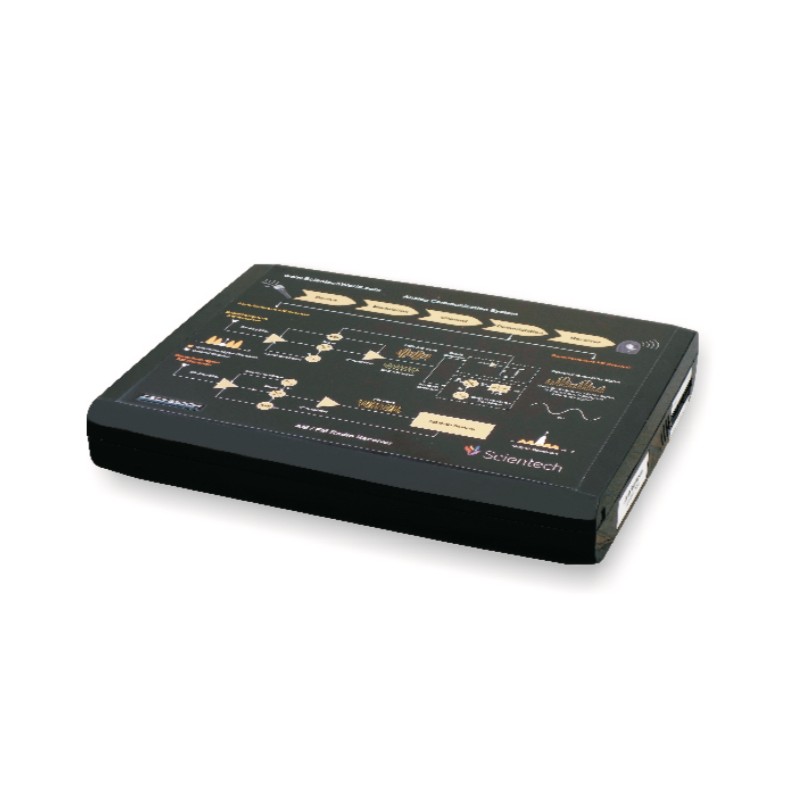

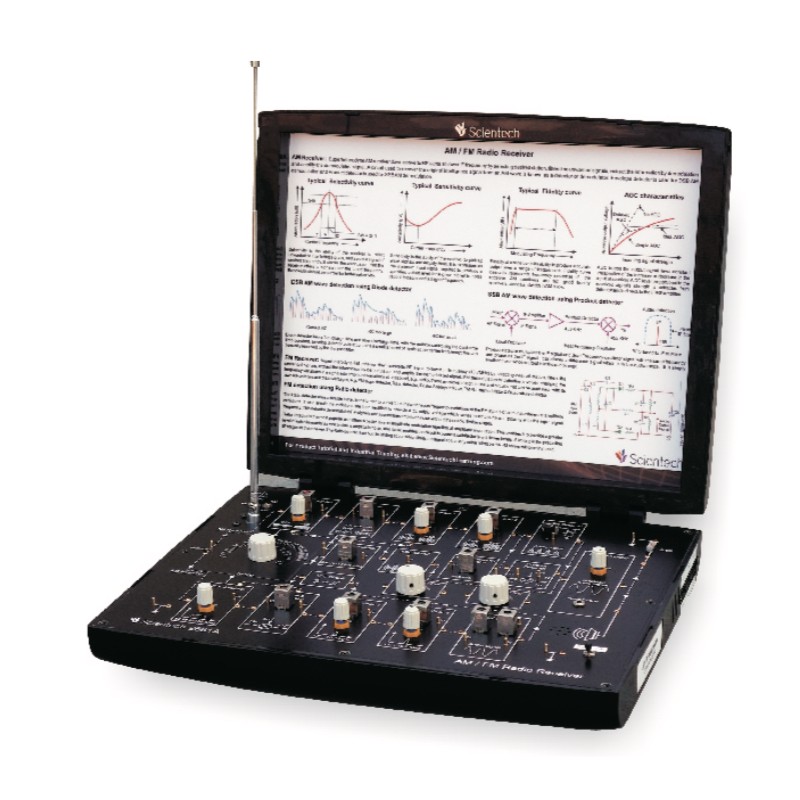

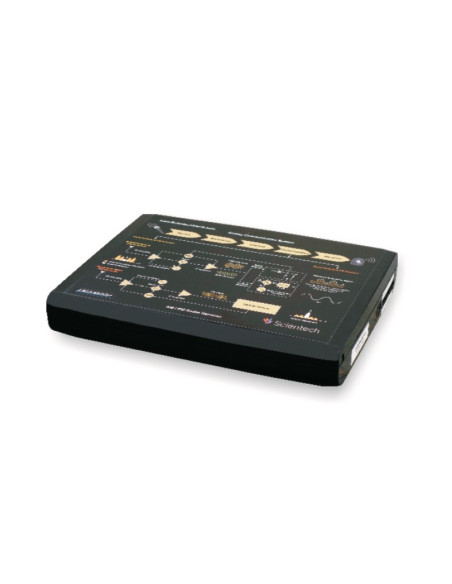

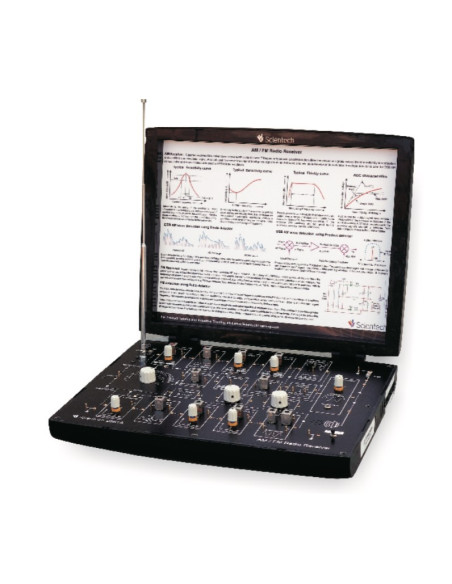

Scientech2661A TechBook AM / FM Radio Receiver

Scientech2661A TechBook AM / FM Radio Receiver is an ideal platform to enhance education, training, skills & development amongs our young minds.

The TechBook provides the conceptual and step by step understanding of a superheterodyne receiver system through measurement of voltages and observation of waveforms at various test points. Block wise modular organization of circuit function with supporting technical information makes it easy to understand the process of AM / FM reception and demodulation. The exercises conceived to provide a practical approach to the subjects enable a deep analysis of the subjects and will guide the students to understand each function.

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia Product Tutorial which covers basic theory, step by step procedure to conduct the experiment and other useful information.

Product Features:

• A self contained TechBook

• Functional blocks with self explanatory waveforms and technical details indicated on board

• On board Tuner provided for tuning the AM/FM transmitting stations

• Interconnections between different section using 2mm patch cords

• More than 50 test points for waveform observation and analysis

• 12 Switched faults for troubleshooting at different functional blocks

• Telescopic antenna for reception of AM/FM signal

• On board audio jack provided for Earphone connection

• On board Speaker provided for audio communication

• Product Tutorial

• Double Sideband AM Reception and study of Diode Detector

• Single Sideband AM Reception and study of Product Detector

• Operation of the Automatic Gain Control Circuit (AGC)

• To plot Selectivity curve for AM radio receiver

• To plot Sensitivity curve for AM radio receiver

• To plot Fidelity curve for AM radio receiver

• FM Reception and study of Ratio Detector

• AM / FM Radio Receiver
