SONO-MIX-mini LD Mixing Probe that measures Moisture and Conductivity on bulk materials

Reference SONO-MIX-mini LD

Manufacturer: IMKO

Condition: New

This sensor is the perfect solution for applications that require compact and durable integration, while maintaining reliable performance in real-time measurement and monitoring.

◆ Ref.: 308111 SONO-MIX-mini: The mixer probe for special mixing units and process technology.
◆ Made of stainless steel with a wear-resistant ceramic window, it measures moisture and conductivity of low-density bulk materials such as granulates, powders, grains, and oilseeds.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS

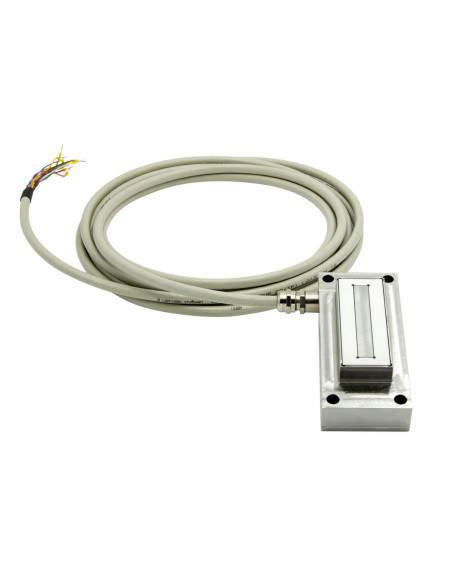

Ultra-Compact Rectangular Sensor
◆ This ultra-compact rectangular sensor is ideal for installation in container walls, along screw conveyors, pipelines or similar applications.

Key Features:
◆ Rugged Construction: Sensor surface made of high-quality steel (V2A) and aluminum oxide ceramic, ensuring durability and resistance to demanding conditions.
◆ Temperature Range: Operating in a range of 0 to 70°C, suitable for various industrial applications.
◆ Compact Dimensions: 135 x 60 x 40 mm, designed to fit into tight spaces.
◆ Connection Cable: Includes a 5-meter fixed cable for easy installation and connection.

Made of stainless steel with a wear-resistant ceramic window, the mixer probe is suited to build in intensive mixers and special mixing units as well as for process technology. The patented TRIME transducer measures high frequency TDR impulses with 1 GHz and a solution of one picosecond (1×10^-12) and determines with this moisture and conductivity.

Benefits:

The compact rectangular moisture probe measures the moisture of bulk solids with a low density between 0.3kg/dm³ and 1.0kg/dm³.
Robust probe body of stainless steel V2A and special ceramics
Ideal for bulk solids with low density like granulates, powders, grains, and oilseeds
Up to 15 different material calibration curves may be saved directly in the probe
Further evaluation units are not necessary
Integrated signal processing and output with intelligent filter algorithms directly in the probe

Ref.: 308111 SONO-MIX mini
Ultra-compact rectangular sensor for installation into bin wall, along screw-conveyors, pipes or similar.
Sensor surface made of high-grade steel (V2A) and silicon nitride ceramic.
Temperature range: 0..70°C
Dimensions: 135x60x40mm
Cable: 5m fixed

The SONO-MIX Mini mixer probe is perfect e.g. to be built in:

► Intensive mixers
► Special mixing units
► Containers
► Screw conveyors
► Material funnels
► Conveyor belts
► As special version LD or Xtrem it is also suitable for general applications in the process technology
