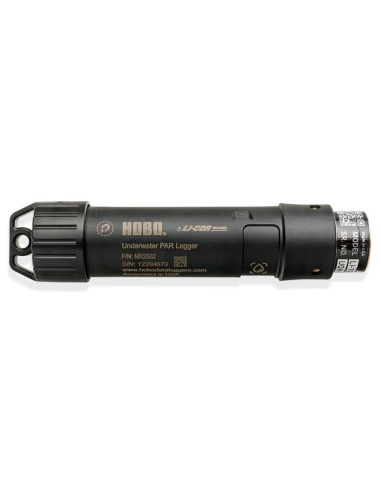

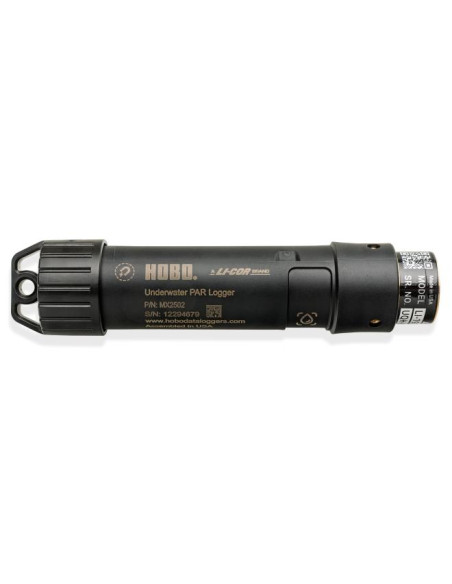

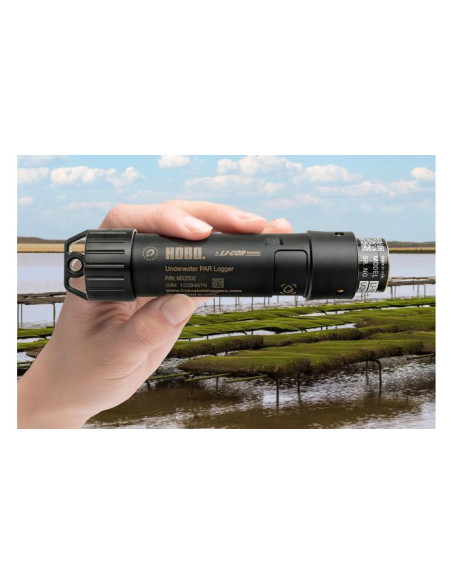

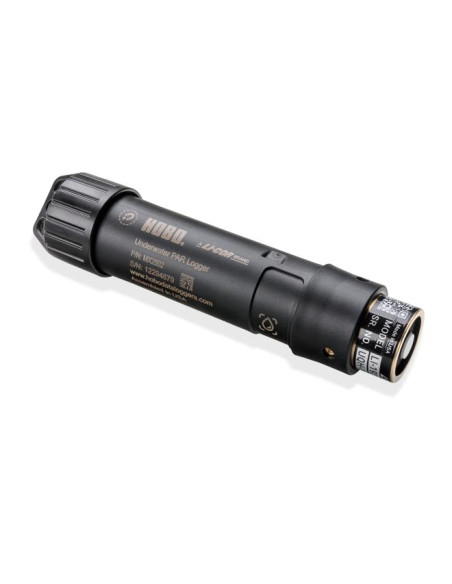

MX2502 HOBO MX Underwater PAR Data Logger

Reference: MX2502 - Manufacturer: Onset

Bluetooth data logger for measuring photosynthetically active radiation (PAR), temperature, and tilt in underwater applications with the high-accuracy LI-COR LI-192 sensor.

Its IP68 housing for fresh and salt water enables rugged deployments and wireless offload through HOBOconnect without cables or a laptop in the field.

■  Bluetooth connectivity for cable-free data download.

■  Integrated LI-COR LI-192 sensor for high-accuracy PAR measurements.

■  Waterproof design suitable for freshwater and saltwater applications.

■  Measures PAR, temperature and tilt within a single compact logger.

€1,245.00
Tax excluded Envío: 3 a 6 semanas



The MX2502 is an underwater data logger in the HOBO MX family designed for ecosystem research, protection, and restoration. It features Bluetooth connectivity for configuring the logger, viewing data, and offloading measurements through the free HOBOconnect app, eliminating the need for cables or laptops in wet or difficult field locations.

This model integrates the LI-COR LI-192 quantum sensor, an industry reference for photosynthetically active radiation (PAR) measurement, together with internal temperature and tilt sensors. With calibration factors for both air and water, the logger delivers accurate PAR data in either environment and improves quality control through water-detect events and tilt monitoring during deployment.

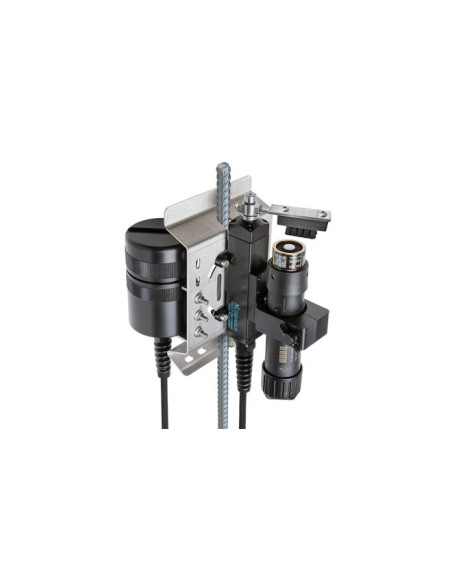

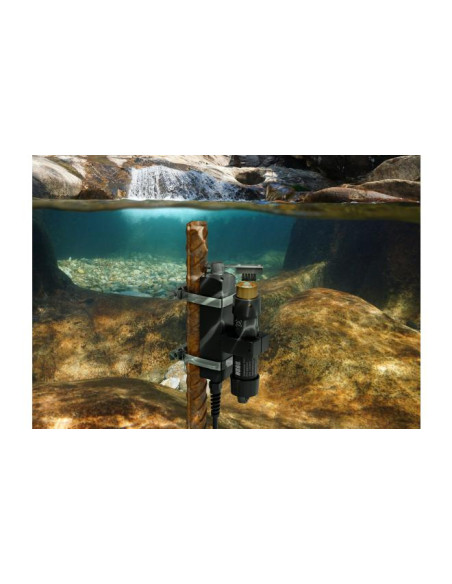

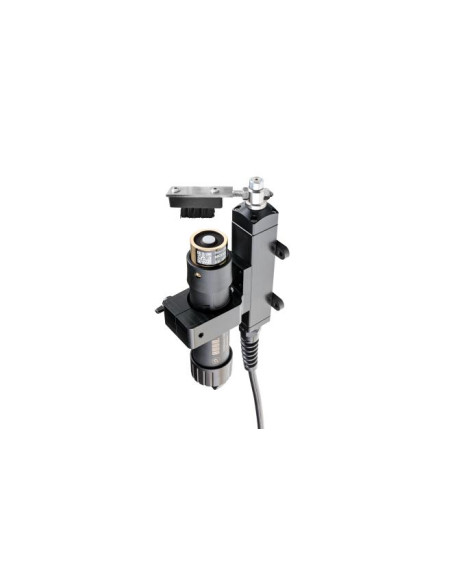

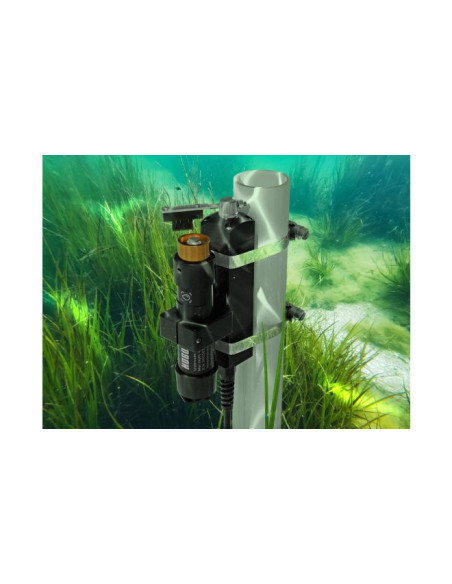

Its compact, rugged, and waterproof design with an IP68 rating to 30 m makes it suitable for both fresh and salt water. It is also designed to mount easily to third-party wipers such as the ZebraTech Hydro-Wiper using the M-CLP clamp, and it can be deployed with lowering frames or compatible mounting brackets for aquaculture, aquatic ecology, stream metabolism, and advanced environmental studies.

  • Wireless Bluetooth Low Energy data offload.
  • PAR, temperature, and tilt measurements in one logger.
  • Dedicated air and water calibration factors.
  • Compatible with HOBOconnect and LI-COR Cloud with an optional MX data plan.
  • Built for long-term operation in demanding aquatic environments.

Sensors and measured parameters

  • PAR with water calibration.
  • PAR with air calibration.
  • Temperature.
  • Tilt angle.

PAR sensor performance

  • Range: 0 to 3000 umol/m2/s in full sunlight.
  • Typical accuracy: +/-5% with LI-192 factory calibration.
  • Wavelengths: 400 to 700 nm with close-to-ideal PAR response.
  • Cosine correction optimized for underwater and atmospheric use.

Temperature

  • Range: -20 to 50 C in non-freezing water.
  • Accuracy: +/-0.2 C.
  • Resolution: 0.1 C.

Tilt

  • Range: 0 to 180 degrees from vertical.
  • Accuracy: +/-5 degrees.
  • Resolution: 1 degree.

Logger

  • User-selectable logging interval: 1 second to 18 hours.
  • Memory capacity: 195,000 measurement sets.
  • Water-detect events record submersion and emergence.
  • Wireless range: up to 30.5 m line-of-sight via Bluetooth Low Energy.
  • Enclosure rating: IP68 to 30 m.
  • Factory-replaceable battery with approximately 6-year life at nominal interval with Bluetooth off.
  • Operating environment: -20 to 50 C, fresh or salt water, not for freezing in ice.
  • Dimensions: 1.695 in diameter; 7.190 in length.
  • Weight: 274 g logger only; 495 g with packaging.

Key features

  • Built-in measurement averaging to reduce environmental noise.
  • Compatible with ZebraTech wipers and dedicated mounting accessories.
  • Data visualization, configuration, offload, and sharing through HOBOconnect.
  • Recalibration options through LI-COR factory service or self-checking against a precision reference.
