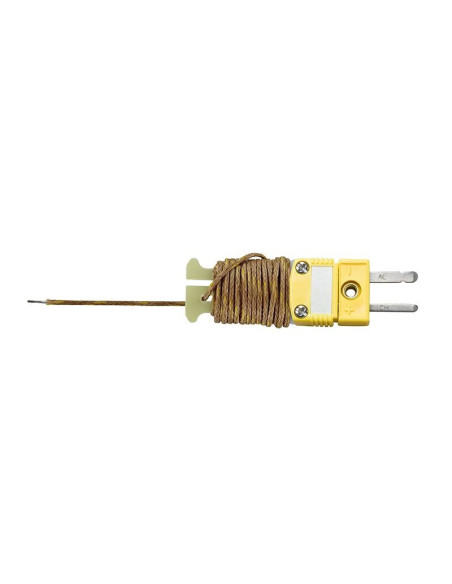

TC6-K K type Thermocouple (0º to 285ºC, 285º to 482ºC)

Reference TC6-K

Manufacturer: Onset

Condition: New

Ranges:
0 to 285°C (32° to 545°F)
285 to 482°C (545° to 900°F)

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Compatible Loggers
Data sheet

The Sensor measures:	Temperature
Output Signal:	mV
Cable Length:	1.8 m
Sensor for use in:	Indoor

The Type K 6 ft Beaded Thermocouple probe includes 1.8m (6 feet) of insulated 30-AWG wire wound on an integrated spool caddy /sub miniature connector. Color-coded for type K (yellow) thermocouples according to the ANSI standard, this probe is insulated with glass braid and responsive over a range of 0°C to 285°C (32°F to 545°F) with an initial accuracy of ±2.2°C (±4°F) for probe only over the range of 285°C to 482°C (545°F to 900°F). Overall accuracy varies with attached logger. Initial Accuracy: ±0.75%

Range: 0°C to 285°C (32°F to 545°F)
Initial Accuracy: ±2.2°C (±4°F)
Range: 285°C to 482°C (545°F to 900°F)
Initial Accuracy: ±0.75%^***Insulation: Glass Braid
Notes: Glass braid is rated up to 482°C (900°F) continuous, and 537°C (1000°F) for single exposure.

^*** Percentage is of degrees above or below 0°C (32°F)
