ML3-Kit ThetaKit (Soil Moisture Measurement Kit and Temperature)

Reference ML3-KIT

Manufacturer: Delta T

Condition: New

Soil Moisture Measurement Kit from Delta-T ML3-KIT ThetaKit

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
video
Data sheet
Accessories

The Sensor measures:	Soil Humidity

ML-RODS-3 Stainless steel rods for ML3 and ML2x
69,00 €

Add to cart

Rapid, accurate measurement of water content in soil

Used by many of the world's leading golf courses and sporting venues
Soil moisture with ± 1% accuracy
View, store and retrieve readings with the HH2 Moisture Meter
International reputation for ruggedness and reliability
Fast and easy to use research grade instrument

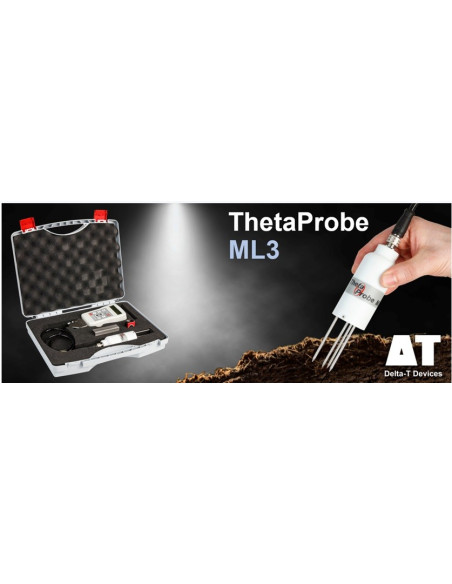

Supplied in a convenient carry case, the ThetaKit (based around the new ML3 ThetaProbe Soil Moisture Sensor) contains everything you need to obtain accurate soil moisture measurements. The kit comes complete with a dedicated HH2 Moisture Meter for instant readout, an insertion tool for penetrating hard soils, and a set of spare replacement rods.

With a proven reputation for reliability and robustness, the new ML3 probe has extra features, improved performance and a new look. With class leading 1% accuracy it continues to set the standard for fast, easy soil moisture measurement.

Golf & sports turf applications
A leading international sports turf consultancy, STRI, provides independent advice to around 2,100 sports clubs and leisure facilities every year. STRI has produced a video on putting green quality, in which the ThetaKit is recommended. Please click here to see the video - the section covering the ThetaKit begins at 2 minutes 55 seconds.

ThetaKit - the ideal tool for turf professionals

For over fifteen years the ThetaProbe Soil Moisture Sensor has gained a reputation among scientific researchers worldwide for its accuracy, stability, and robustness. This research grade performance is now available to turf managers - offering an unrivalled level of accuracy for the determination of soil water content.

With the ThetaKit it is possible to rapidly check irrigation uniformity and turf characteristics. Regular measurement of soil moisture content allows continual assessment of grass health - giving early warning of potential problems and enabling the turf manager to take preventative action - before damaging physical change in the turf has occurred.

Use the ThetaKit to:

Spot check soil moisture content quickly and easily
Identify areas too dry or too wet before turf problems become visible
Quantify background levels of water content that underpin good turf performance
Schedule optimised irrigation
Check the performance of automatic sprinklers – and the uniformity of water application

Please note that although the ML3 has a built in temperature sensor, temperature can only be recorded if the probe is connected to a data logger (and the probe is fully buried). The HH2 Meter is unable to provide temperature indication.

Highly accurate yet very easy to use
With the ML3 ThetaProbe Soil Moisture Sensor it's easy to make reliable, accurate soil moisture measurements. Simply insert the soil moisture probe into the soil, switch on the HH2 readout meter, and within seconds you can be logging soil moisture.

ML3-ThetaKit

Range	0-100% soil water content
Accuracy	±1% (for 0-50% range)
Power	9V PP3 battery (over 6000 readings)
Sampling volume	6cm x 3cm diameter cylinder
Environmental Sealing	Waterproof (IP68)
Memory	Over 2000 readings

Measurement	volumetric water content	Pore water conductivity	Temperature
Accuracy	± 0.03 m³.m^-3 (3%)	see graph below	± 1.5°C
Soil moisture measurement range	Full accuracy over: 0 to 1 m³.m^-3	see graph below	0 to 50°C
Salinity range	0 to 300 mS.m^-1
	Supplied with extended range calibrations which should be used for readings between 300 to 500 mS.m^-1
Temperature range	-5 to 50°C
Output	Serial TTL data providing permittivity, bulk conductivity and temperature, from which water content and pore water conductivity are calculated
Power requirement	6-10 V, ~38 mA for 2.5s
Environmental	IP68
Sample volume	~500 ml
	Sample volume is weighted towards soil immediately surrounding the rods
Dimensions and weight	Overall: 120 x 45 x 13 mm Rods: 68 mm x 3 mm diameter Outer rods 68mm x 3.0 mm dia Central rod 65 mm x 5.0 mm dia Weight: 0.1 kg
Sensor calibrations	Sensor calibrations supplied in WET Sensor EEPROM Recalibration advised every 3 years (dependent on use)
Soil calibrations	Generalised Mineral ,Organic, Sand and Clay calibrations are supplied, specialist calibrations are available for horticultural substrates (please enquire at sales@delta-t.co.uk for more information) .
