MQ-210X Underwater Quantum Meter

Apogee Instruments

New

The MQ-210X quantum meter is designed for underwater PAR measurements and already applies the sensor's immersion effect correction factor to the meter readings through firmware.
The meter is excellent for all light sources, except LEDs, where post-measurement correction factors need to be applied to achieve accurate readings.

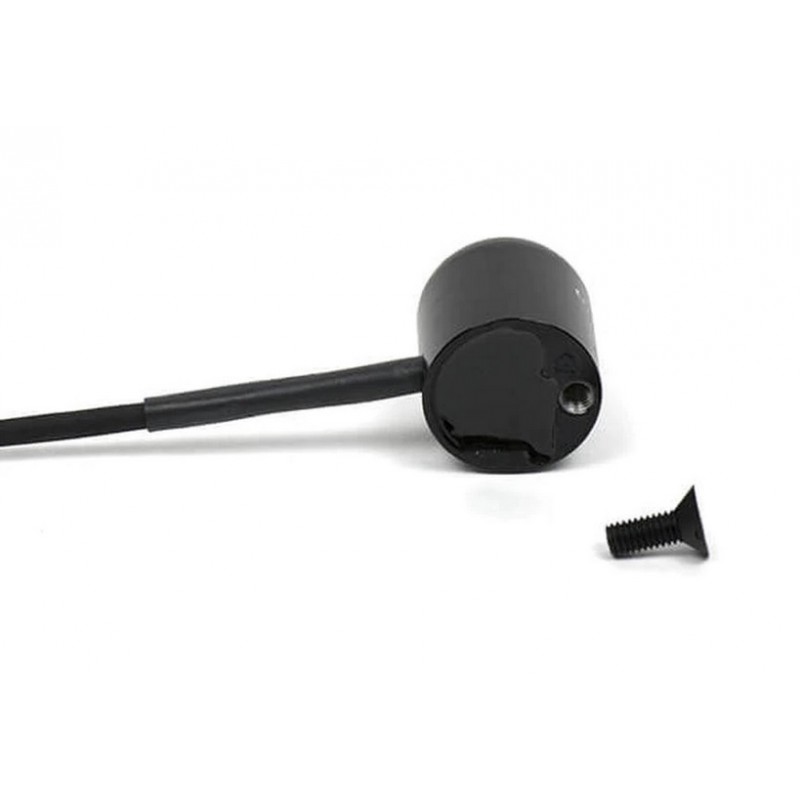

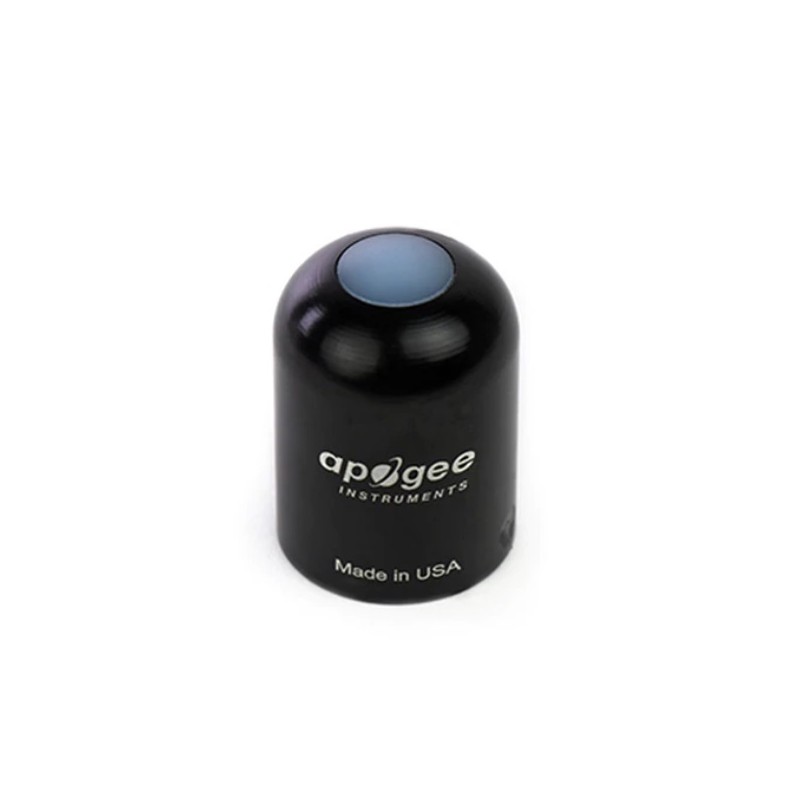

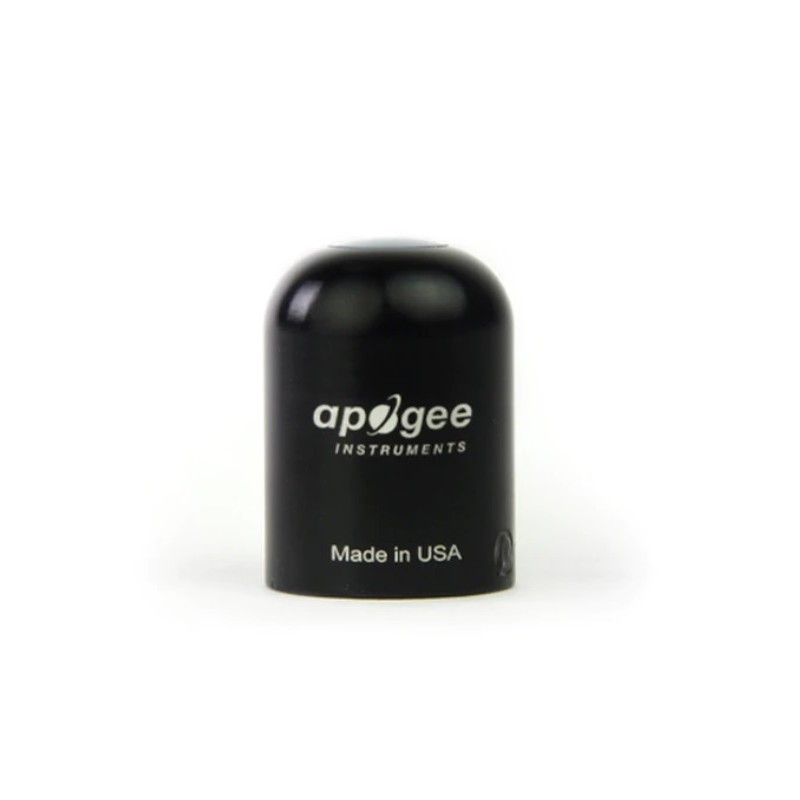

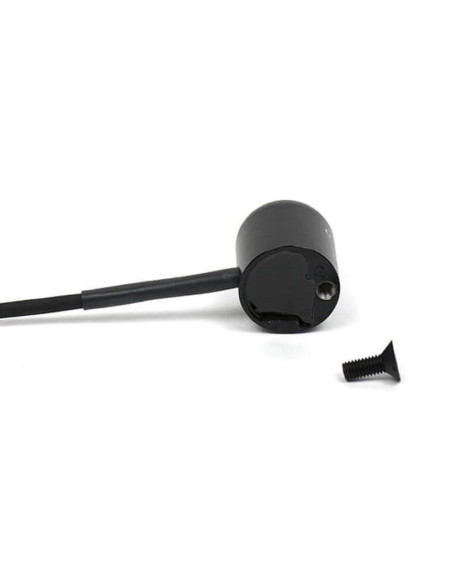

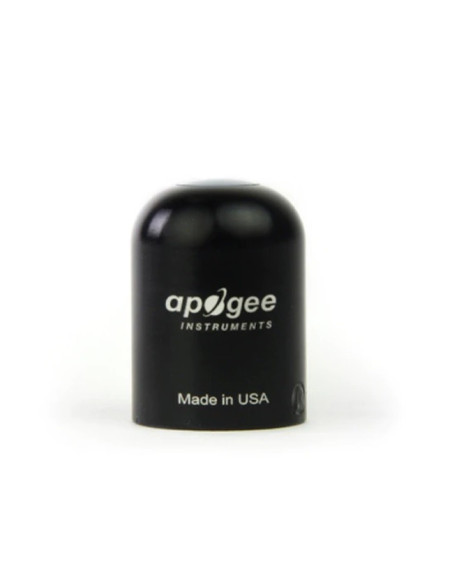

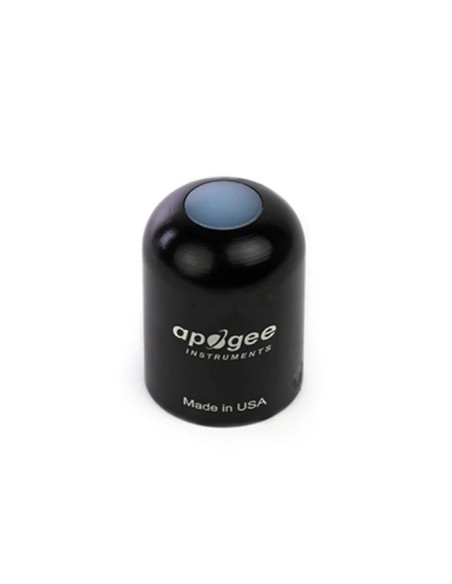

The waterproof sensor incorporates a blue-enhanced silicon photodiode and custom optical filters with a rugged, anodized aluminum body with acrylic diffuser.
The underwater quantum sensor is typically used in salt water aquariums where corals are grown.

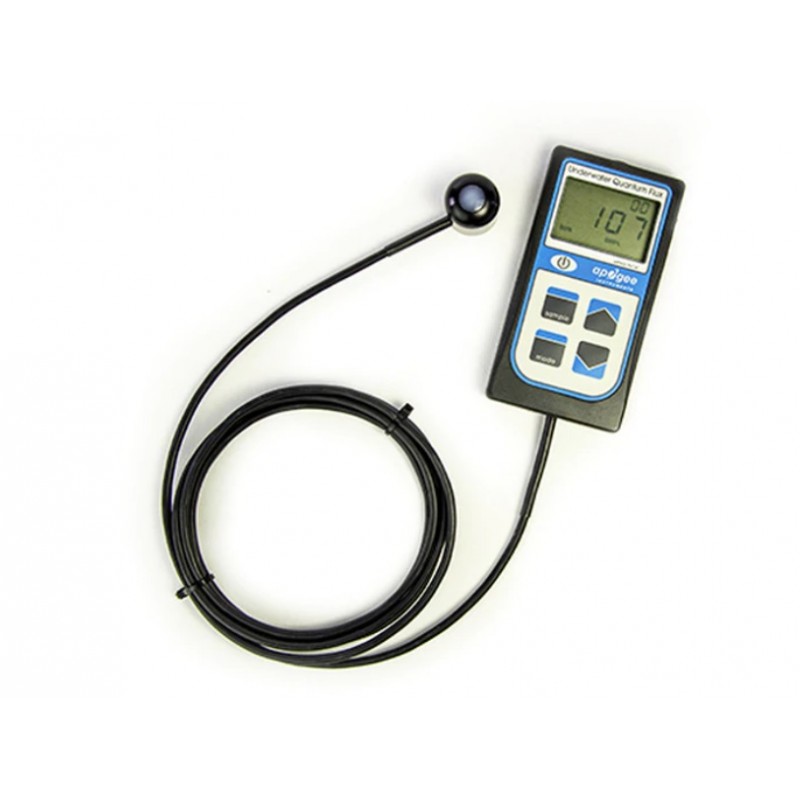

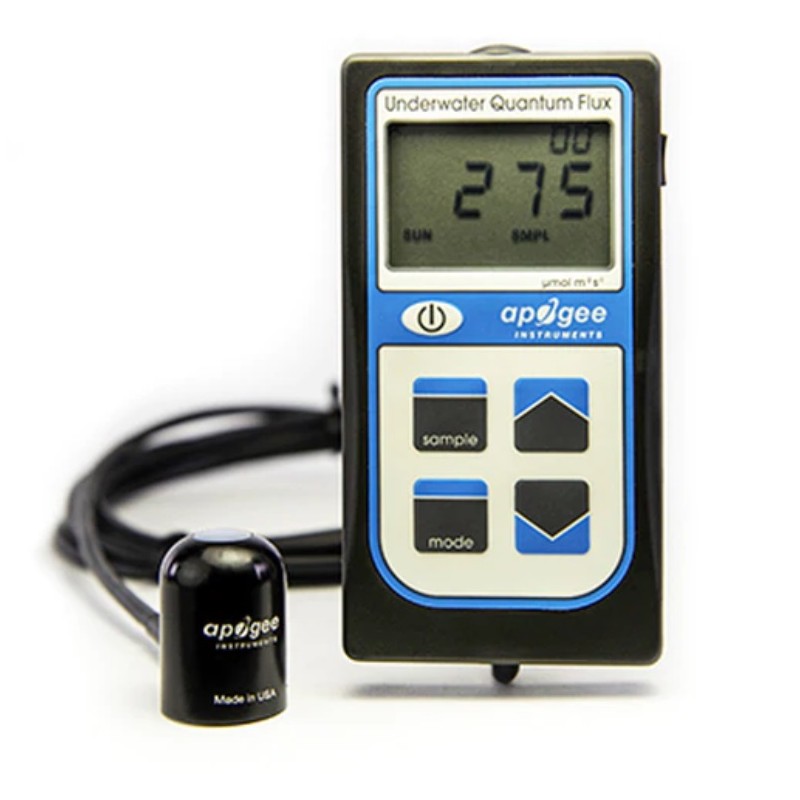

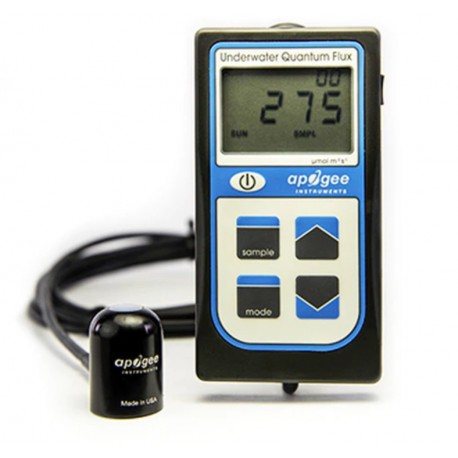

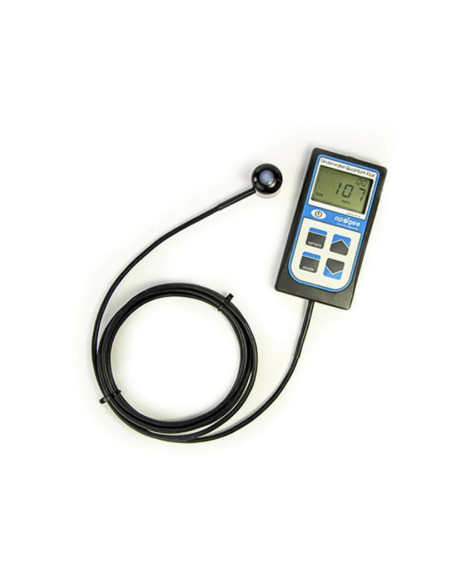

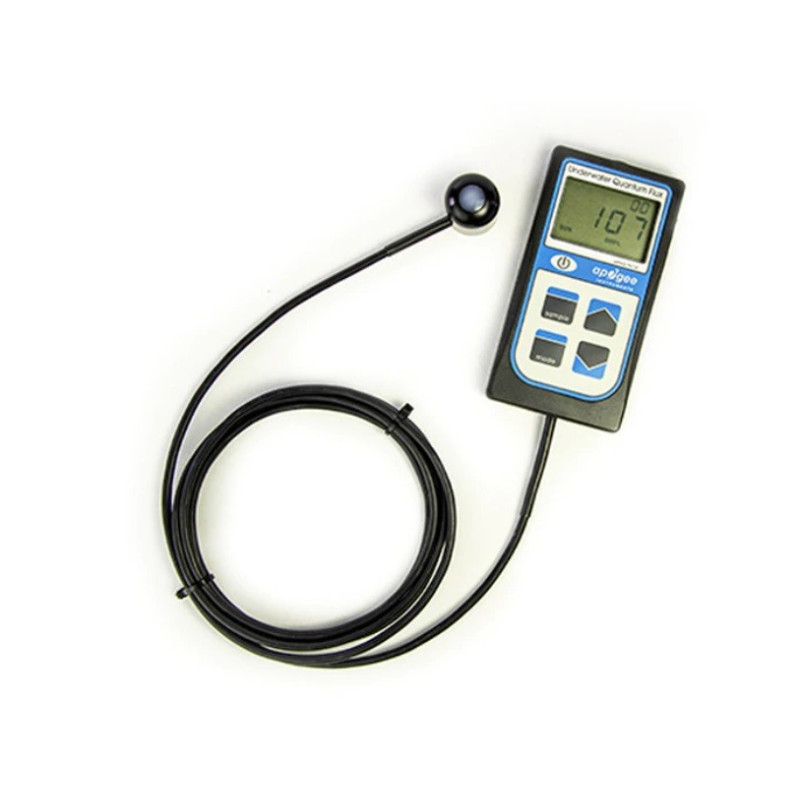

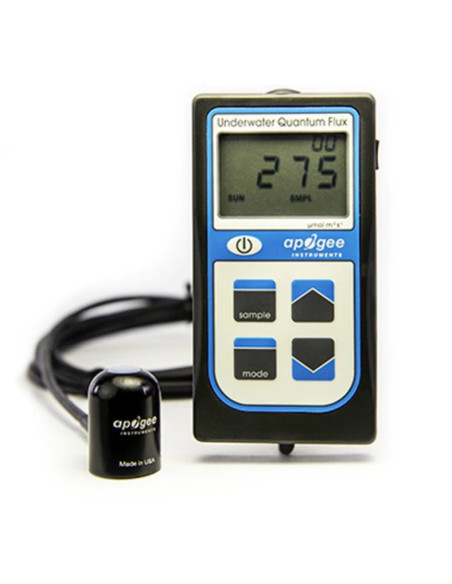

The meter consists of a waterproof quantum sensor attached via waterproof cable to a handheld meter.
Note: The handheld meter is not waterproof, only the sensor and cable are waterproof.

515,00 €

tax excl.

Add to wishlist

The Sensor measures: Quantum Light Meter
Cable Length: 2m
Sensor for use in: Outdoor & Underwater

MQ-210 Data Sheet Download (383.39k)

MQ-210 Manual Download (1.65M)

MQ-210 Dimensions Download (385.38k)

The meter has a sample and log mode, and will record an integrated daily total in mol m-2 d-1. The sample mode will record up to 99 manual measurements.
The log mode will turn the meter on/off to make a measurement every 30 seconds.

Every 30 minutes the meter will average the sixty 30 second measurements and record the average value in memory.
The meter can store up to 99 averages, once it is full it will start overwriting the oldest measurement with new ones.
An integrated daily total will be recorded from the 48 averaged measurements (making a 24 hour period).

Sample and log measurements can be reviewed on the LCD or by downloading the data to a PC (via the optional AC-100 Cable and drivers); however, the integrated daily total can only be viewed by downloading the data to the PC.

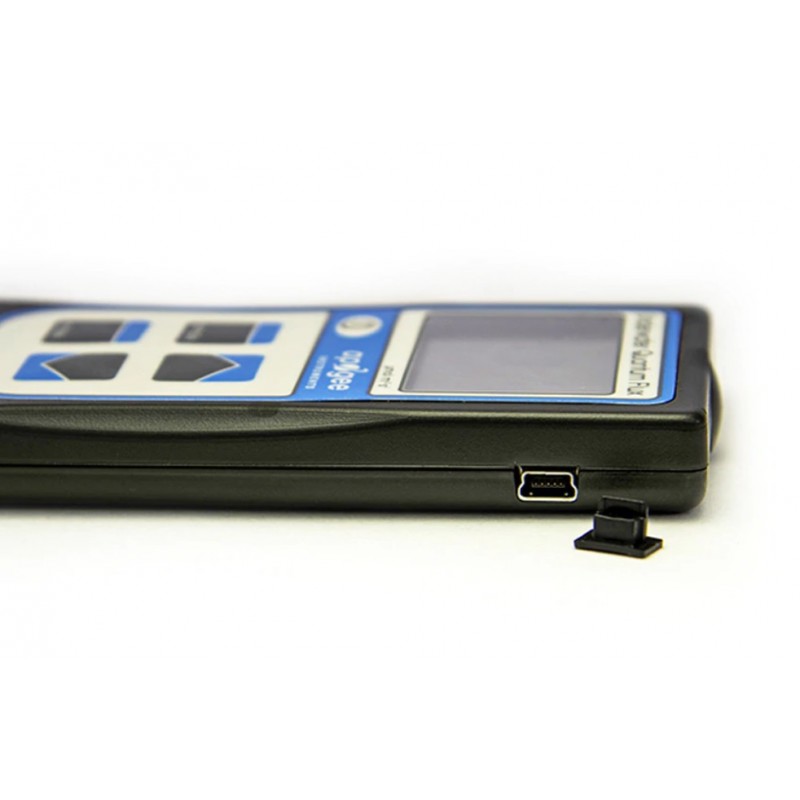

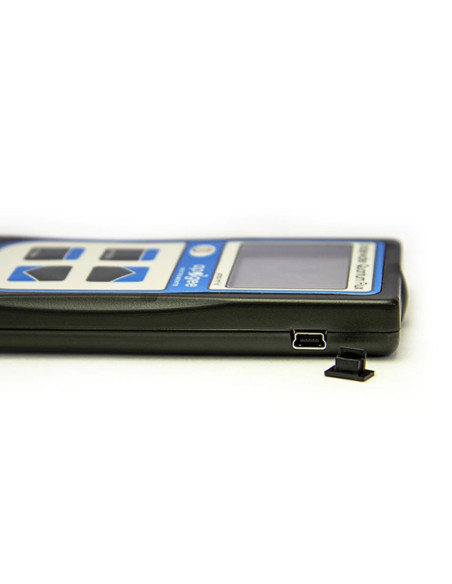

Downloading data to a computer requires the AC-100 communication cable (a standard USB cable will not work) and ApogeeAMS software and drivers.

- Calibration Uncertainty: ± 5 %
- Measurement Repeatability: Less than 1 %
- Long-term Drift (Non-stability): Less than 2 % per year
- Non-linearity: Less than 1 % (up to 3000 µmol mˉ² sˉ¹)
- Response Time: Less than 1 ms
- Field of View: 180˚

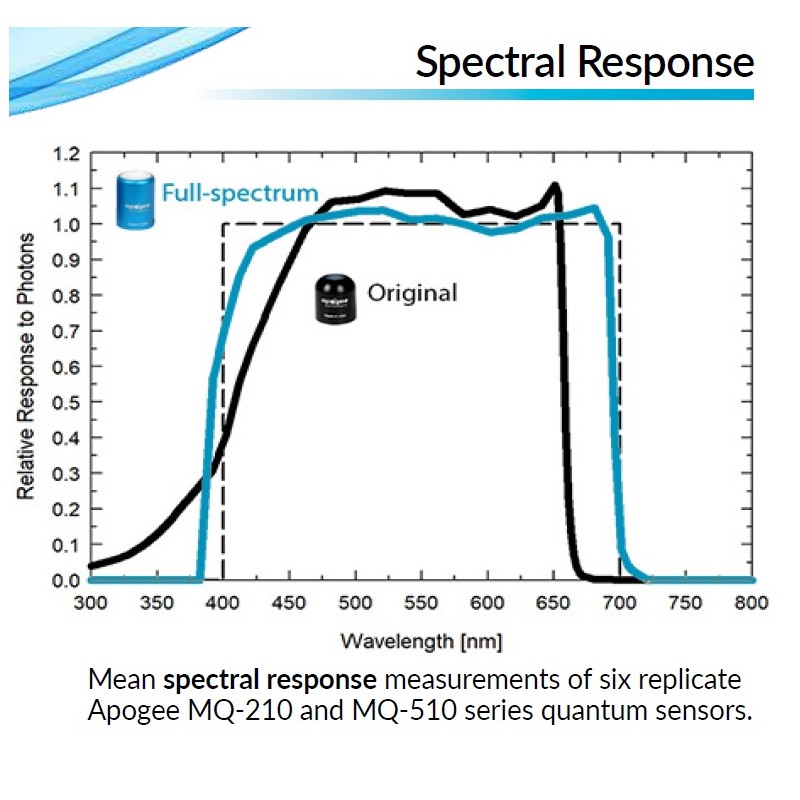

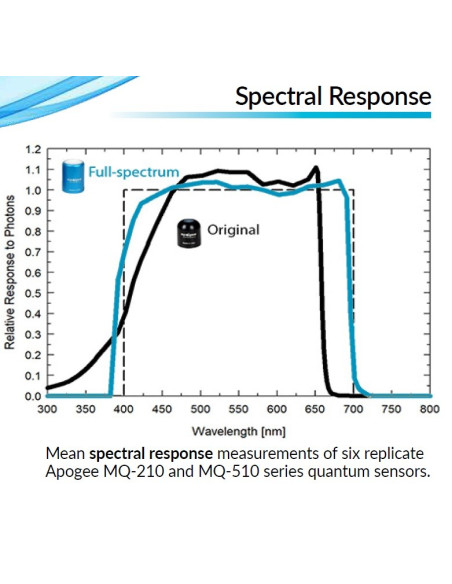

- Spectral Range: 410 to 655 nm
- Directional (Cosine) Response: ± 5 % at 75˚ zenith angle
- Temperature Response: 0.06 ± 0.06 % per C
- Operating Environment: 0 to 50 C; less than 90 % non-condensing relative humidity up to 30 C; less than 70 % non-condensing relative humidity from 30 to 50 C; separate sensor can be submerged in water up to depths of 30 m
- Meter Dimensions: 126 mm length, 70 mm width, 24 mm height
- Sensor Dimensions: 24 mm diameter, 33 mm height
- Mass: 180 g
- Cable: 2 m of two conductor, shielded, twisted-pair wire with TPR jacket ( high water resistance, high UV stability, flexibility in cold conditions)
- Warranty: 4 years against defects in materials and workmanship
