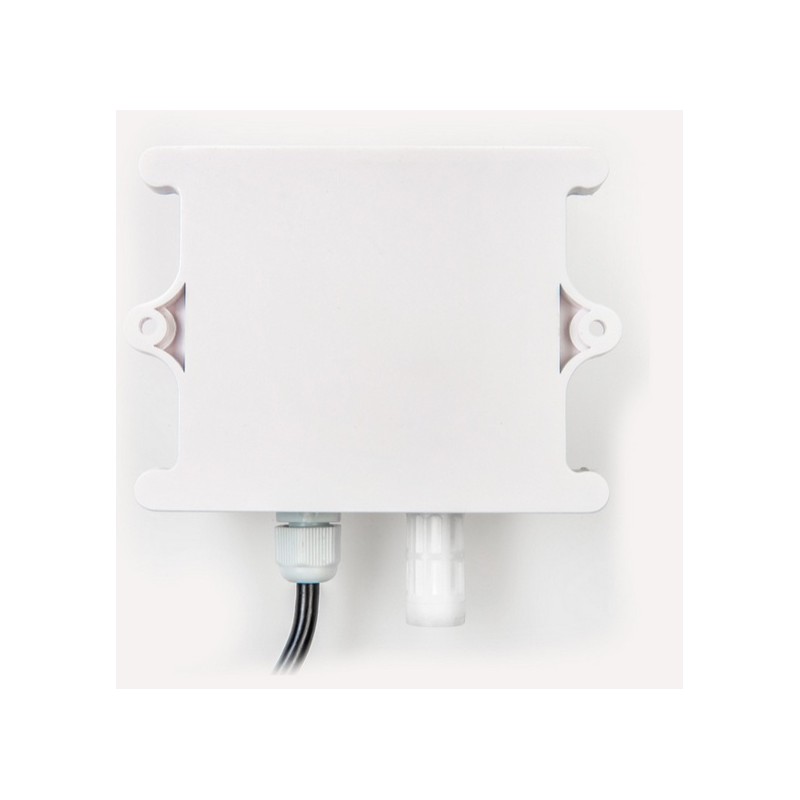

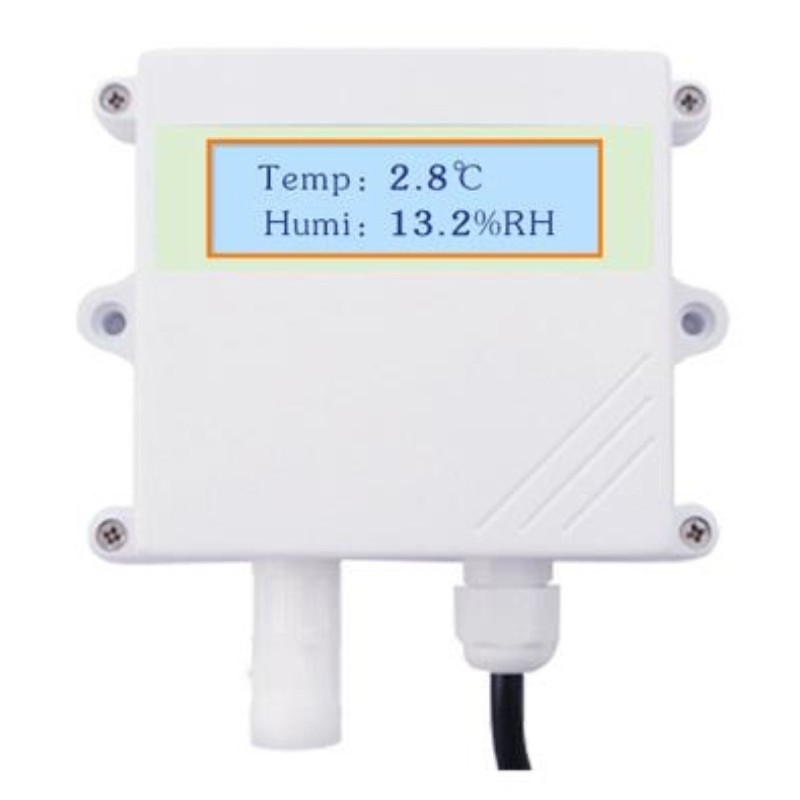

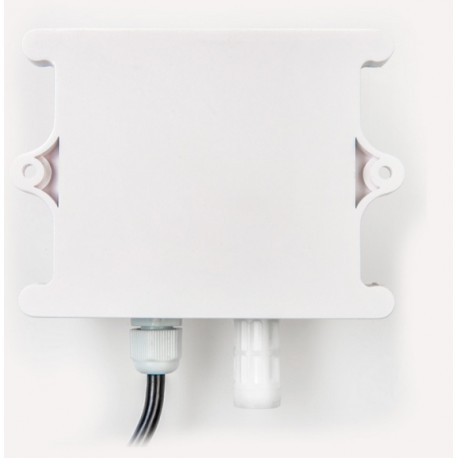

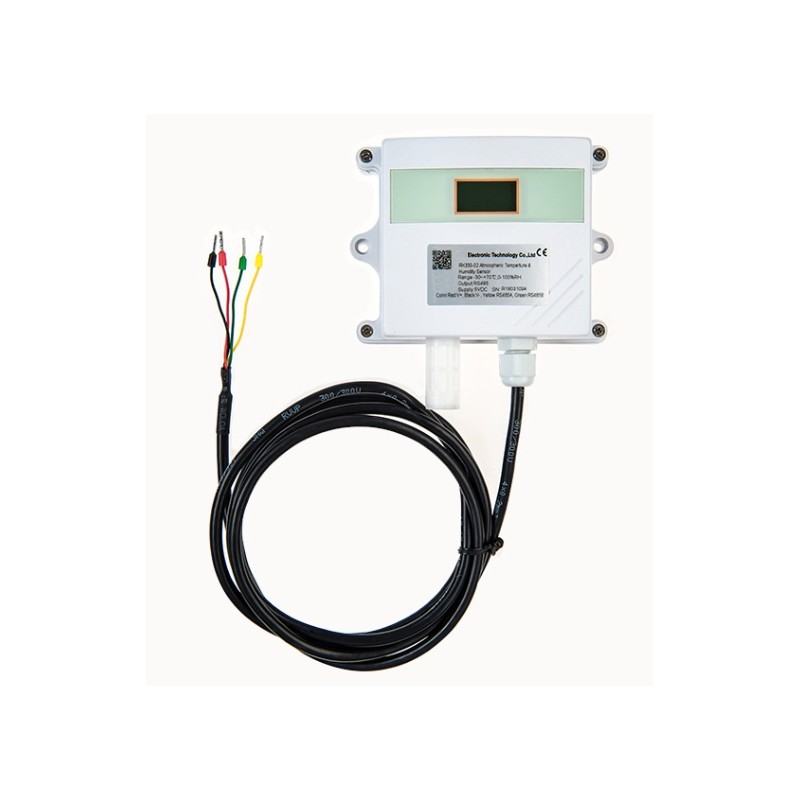

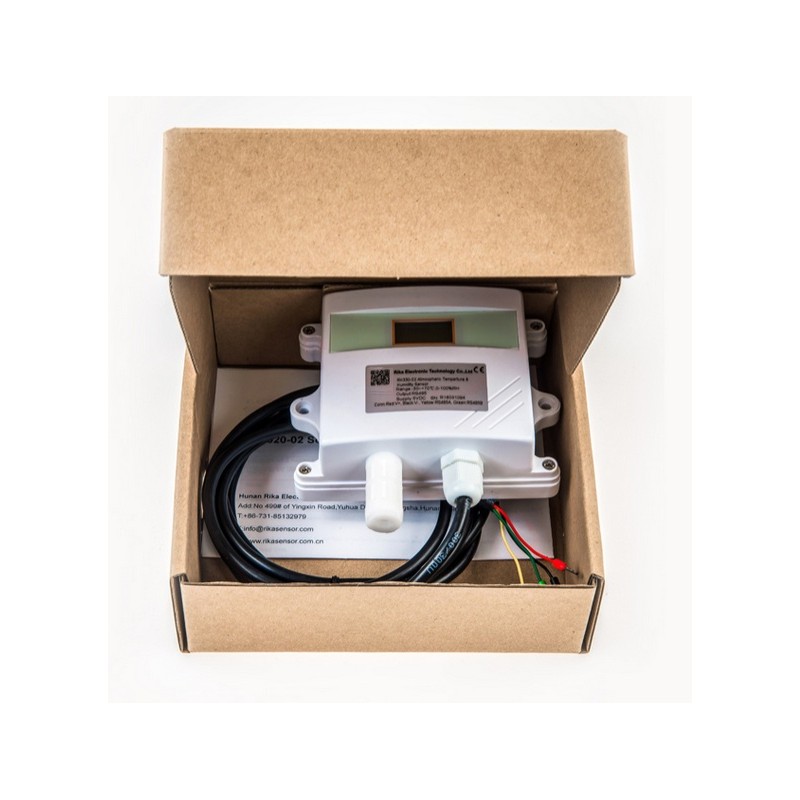

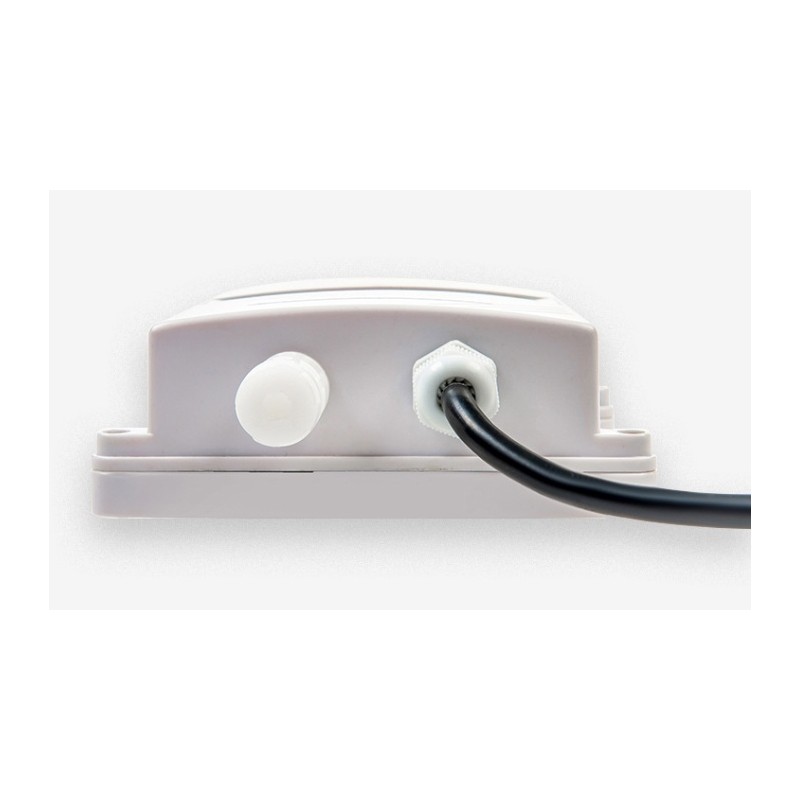

AO-330-02 Atmospheric Temperature & Humidity Sensor (Output Signals: 4-20mA, 0-5V, 0-10V, RS485) wall mount

Reference: AO-330-02 - Manufacturer: AO-Electronics
- The humidity and atmospheric temperature sensor AO-330-02 is a professional measurement of air temperature and relative humidity.
Output Type
€230.00
Tax excluded Envío: 3 a 6 semanas

Quantity Unit discount You Save
3 5% €34.50
5 7% €80.50
11 10% €253.00

The sensors are incorporated in the waterproof and anti-UV shelter.
It is widely used in agriculture, forestry, meteorology, as well as in a climatic chamber, warehouses and other places.

- Range -40-120℃,0-100%RH
- Accuracy ±0.5℃ ±3%RH
- Supply 12-24VDC
- Output Signal 4-20mA, 0-5V, 0-10V, RS485
- Display LCD

4-20mA,0-5V, 0-10V output is proper for one or two measurement parameters. If three elements required, only RS485 output is acceptable.

DIMENSIONS

MOUNTING

1. Install the product in stable environment area, avoid direct sunlight,away from windows air-conditioning, heating and other equipment.Otherwise it will cause measurement inaccuracies.

2. Fixing rail is optional.

3. If you use indoor, recommends clamp to install.

The Sensor measures:
Temp./Rel. Humidity
Output Signal:
4-20mA, 0-5V, 0-10V, RS485
Power Supply:
12-24VDC
Sensor for use in:
Outdoor
