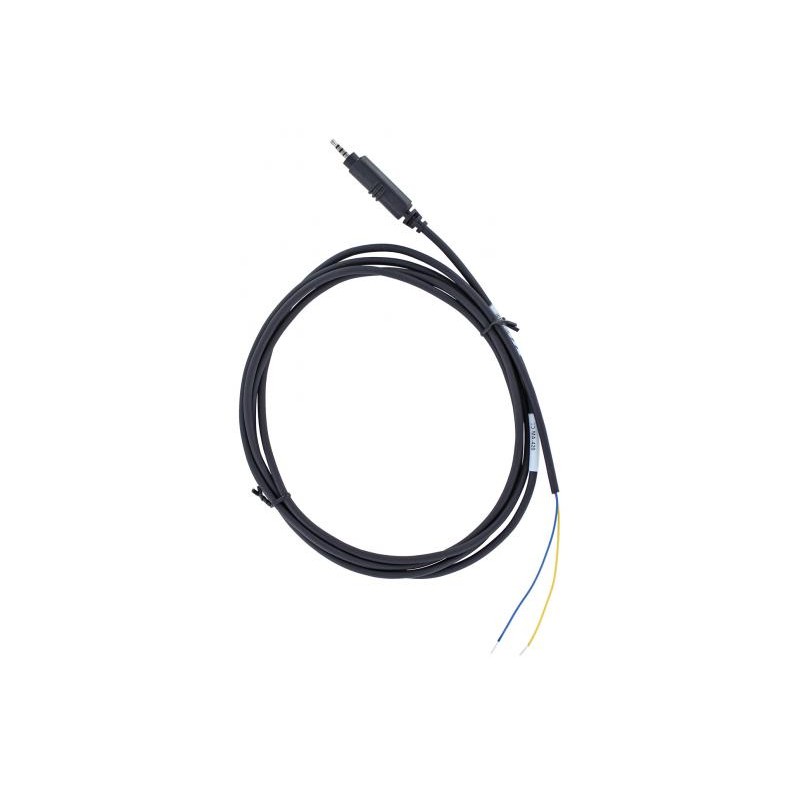

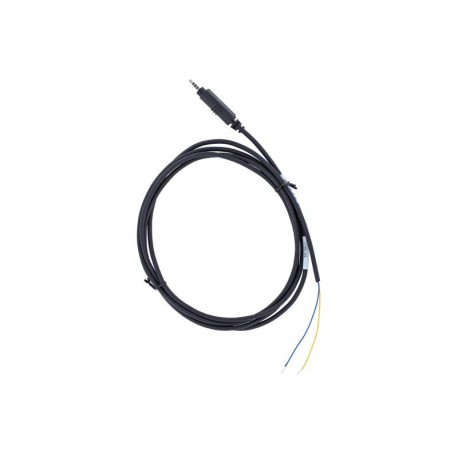

> >>SD-MA-420 HOBO Self-Describing 4-20 mA Input Cable Sensor
SD-MA-420 HOBO Self-Describing 4-20 mA Input Cable Sensor View larger

SD-MA-420 HOBO Self-Describing 4-20 mA Input Cable Sensor

SD-MA-420

Onset

New

  • Self-Describing technology for quick, easy setup of the data logger

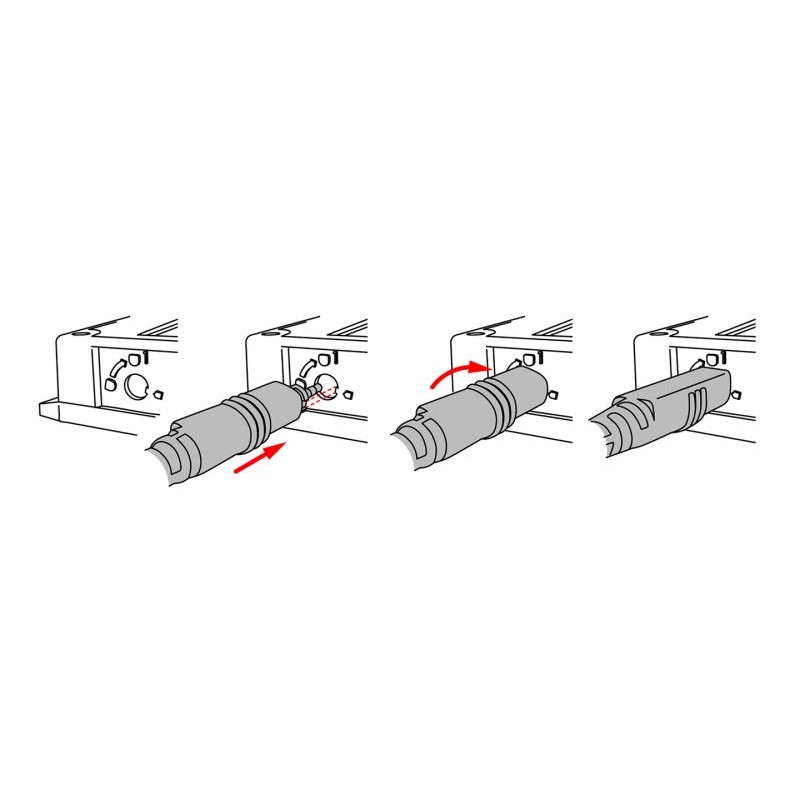

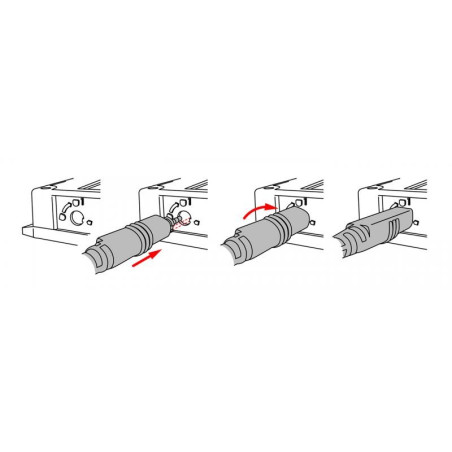

  • Locking jack to ensure cable is connected and stays connected
  • Measurement range of 0 to 20.1 mA
  • Accuracy of ±0.001 mA ± 0.2.% of absolute current
  • Cable length: 47 cm (18.5 in)

49,00 €

tax excl.

Add to wishlist

The Sensor measures: DC Current
Cable Length: 50 cm

SD-MA-420 Data Sheet Download (63.69k)

SD-MA-420 Manual Download (438.3k)

For use with HOBO MX1104 & MX1105 multi-channel data loggers, this 4-20 mA input cable offers integrated strain relief to keep it connected to the logger, and it features Self-Describing technology to automatically communicate configuration information to the logger.

In what environment does this sensor operate?
This sensor operates in an indoor environment.

What measurements does this sensor support?
The SD-MA-420 sensor supports the following measurement: 4-20mA

Measurement Range 0 to 20.1 mA
Accuracy ±0.001 mA ±0.2.% of absolute current
Resolution 0.002% of full scale
Cable Length 47 cm (18.5 inches)
