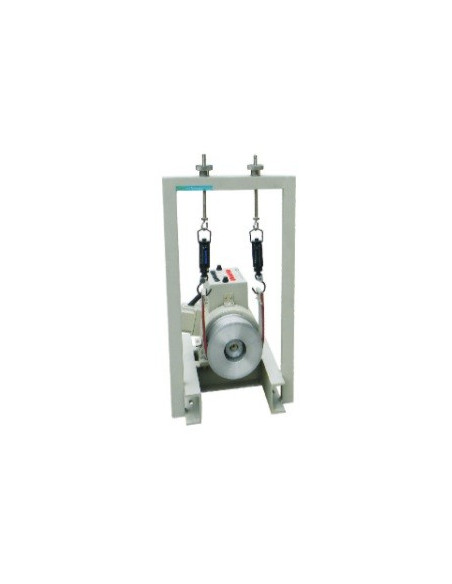

Nvis SQM10 Three Phase Squirrel Cage Induction Motor

Nvis SQM10 Three Phase Squirrel Cage Induction Motor

Nvis SQM10 Three Phase Squirrel Cage Induction Motor

Reference: SQM10 - Manufacturer: NVIS TECHNOLOGIES

◆ AC Motors with standard Mechanical loading arrangement

SPECIFICATIONS

● Model No. : Nvis SQM10
● Type : Three Phase Squirrel Cage Induction Motor
● Power Rating : 1HP
● Voltage Rating : 415V AC ± 5%, 50Hz
● Rated Speed : 1440RPM ± 7.5%
● Insulation : Class 'B’
● Loading arrangement : Mechanical
● Spring Balance : 2 Nos. (Tubular Type)
● Brake Drum/Pulley : Aluminum casted with heat suppression Facility
● Machine Base : “C” Channel
● Protection : Fuses (mounted at the terminal box of the Machines)
