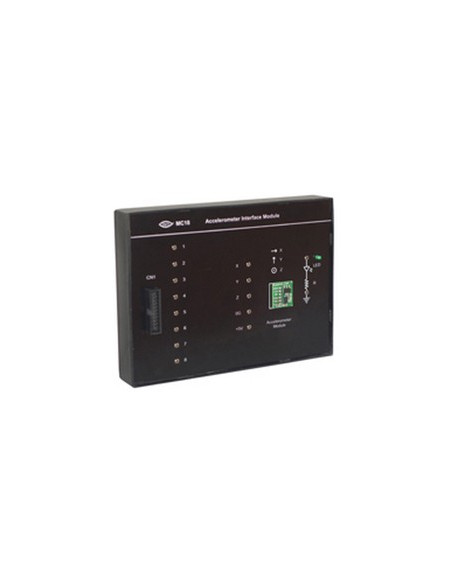

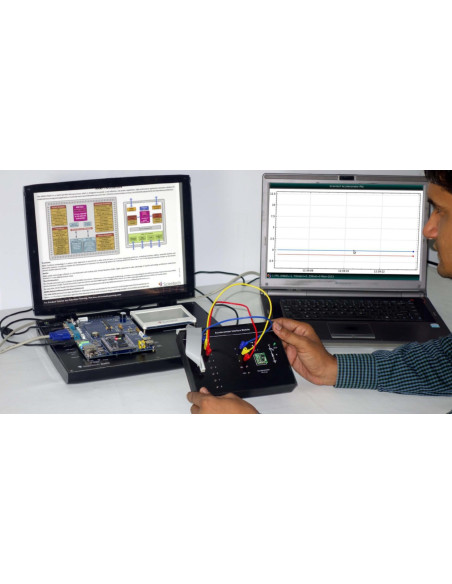

MC18 Accelerometer Module for Embedded Platforms

The objective is to have a clear understanding of how accelerometer is interfaced and controlled with microcontroller. It has various terminals for connection to external real world applications. Accelerometer module will provide a basic understanding of the accelerometer fundamentals, gravity & freefall detection. Accelerometer Sensor can measure gravity of earth & dynamic acceleration in all three axis.

MC18, Accelerometer module for Embedded Platforms is an ideal platform to enhance education, training, skills & development amongs our young minds.

- Analog output for X-Y-Z axis
- Sleep mode: 3μA
- Current consumption 1mA at +5V
- Low Voltage Operation +5 V
- High Sensitivity (800 mV/g @ 1.5g)
- Selectable Sensitivity (±1.5g, ±6g)
- Zero gravity detect for freefall protection
- Expansion connectors for plug in with Microcontroller unit and prototyping area
- 2 Year Warranty

Note :

1. This module is compatible with Scientech 620X series and Nvis 5001A/2/3/4/4A/5 series Microcontroller development platforms.
2. To run MC18 module with Nvis 5004, add-on board is required.
3. To run MC18 module with ZigBee, MC20ZB module is required.(Optional)
4. To run MC18 module with Nvis 5001A / 5003, MC02 module is required.

• Applications:

- 3D Gaming: Tilt and motion sensing, event recorder
- Laptop PC: Freefall detection, Anti-theft
- Cell Phone: Image Stability, Text Scroll, Motion dialing, E-compass
- Robotics: Motion sensing

• ADC channel (X, Y, Z): 3

• Operating Voltage: +2.7 to +3.7V

• Current consumption: 400uA (@ +3.3V)

• Sleep mode current: 3uA (@ +3.3V)

• G - Select: 0 (±1.5g, 800mV/g)

                         1 (±6g, 206mV/g)

• LED: +5V

• Power Supply: From Scientech 620X series or Nvis 500X series Microcontroller development platforms

• Product Tutorial: Online (Theory, procedure, reference,

results, etc).

• Included Accessories: Patch cords: 5 nos.

- Understanding the concepts of Acceleration
- Study and design motion based devices
- Study and learn to interface Accelerometer with Microcontroller
