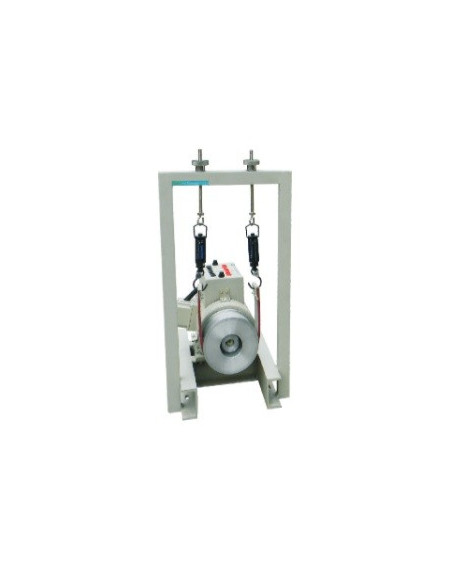

Nvis SPM10 Single-Phase Capacitor-Start Induction Motor
◆ AC Motors with standard Mechanical loading arrangement
● Model No. : Nvis SPM10
● Type : Single phase Capacitor Start Induction Motor
● Power Rating : 1HP
● Voltage Rating : 230V AC ± 5%, 50Hz
● Rated Speed : 1440RPM ± 7.5%
● Insulation : Class 'B’
● Loading arrangement : Mechanical
● Spring Balance : 2 Nos. (Tubular Type)
● Brake Drum/Pulley : Aluminum casted with heat suppression facility
● Machine Base : “C” Channel
● Protection : Fuses (mounted at the terminal box of the Machines)
