CX450
New
► Easy logger setup and data download in seconds
► Includes two-point NIST Certificate of Calibration, per USP guidelines, which is good for one year
► Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
► LCD display, with ability to clear min/max temp and RH readings
► Unique audible alarms for temp, RH, and combined temp/RH
► AAA battery-powered to guard against local power loss
► + 0.5C accuracy for reliable temperature readings from -30C to 70C
► + 3% accuracy for reliable RH readings from 0% to 90% (+ 3.5% accuracy for reliable RH readings greater than 90% at 25C)
► Free InTemp mobile app to configure logger, view data, and access the free InTempConnect cloud software service
► Real-time alerts and automatic data downloads with optional CX5000 Gateway device
This product is no longer in stock
Availability date:
Environment of Use | Indoor |
Type of Logger | Portable |
Measured Parameters | T/HR |
Application | Pharmaceutical Industry |
Number of Channels | 2: Temp + Rel. Humidity |
With Display | LCD |
IP Classification | IP54 |
Communications | Bluetooth Low Energy (Bluetooth Smart) |
Battery Life | 1 year |
Memory Capacity | 178 KB (51,700 temp & RH paired measurements) |
Instrument for: | Hospitals, Lab's, Clinics |
Function: | Cold chain |
Parameters Measured | Temperature/Relative Humidity |

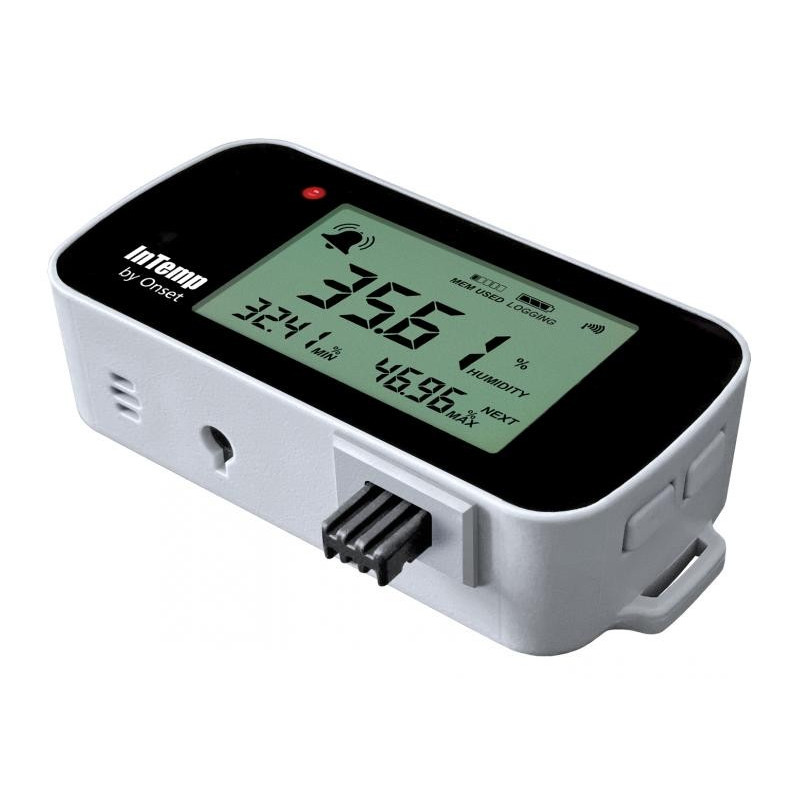

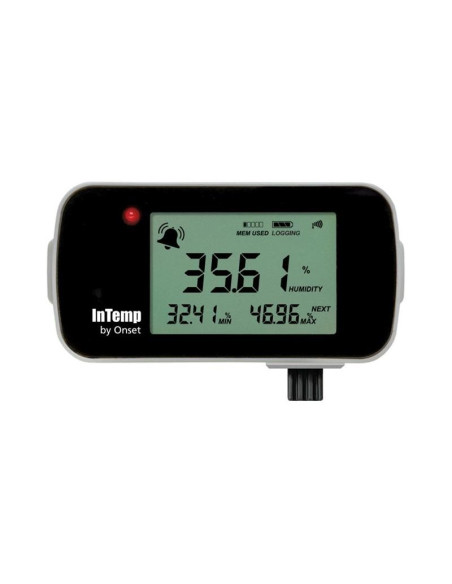

► The InTemp CX450 Temp/RH data logger monitors temperature and Relative Humidity in storage and transportation environments.
► The logger uses Bluetooth Low Energy (BLE) technology to wirelessly communicate with the InTemp CX5000 Gateway and/or the free InTemp mobile app and send logged data to the free InTempConnect cloud platform.
The external sensor provides highly accurately temperature (-30ºC to 70ºC) and humidity from (0% to 95%) readings.
► The CX450 Temp/RH logger also has a built-in LCD display to view temperature and relative humidity readings, visual alarms (and an audible alarm), and battery level – plus the ability to view and displayed in minimum and maximum readings, without affecting logged data.
► Adding the InTemp CX5000 Gateway, a user can get text or email notifications of temperature and/or humidity excursions, as well as automatic data downloads from loggers within the range of the CX Gateway device.
Environment in which this data logger operates:
This data logger works in a cold chain environment.
Measurements supported by this data logger:
The CX405 data logger supports the following measurement: Relative Humidity and Temperature
RH Sensor |
|
Range | 0 to 95% (non-condensing) |
Accuracy | ±3% from 0% to 90% and ±3.5% from greater than 90% typical at 25°C (77°F) |
Resolution | 0.01% |
Logger |
|
Radio Power | 1 mW (0 dBm) |
Transmission Range | Approximately 30.5 m (100 ft) line-of-sight |
Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
Logger Operating Range | -30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing) |
Logging Rate | 1 second to 18 hours |
Battery Type | Two AAA 1.5 V alkaline or lithium batteries, user replaceable |
Battery Life | 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life. |
Memory | 178 KB (51,700 temp & RH paired measurements) |
Full Memory Download Time | Approximately 60 seconds; may take longer the farther the device is from the logger |
LCD | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
Dimensions | 9.4 x 5.6 x 2.59 cm (3.7 x 2.21 x 1.02 inches) |
Weight | 90.2 g (3.18 oz) |
Environmental Rating | IP54 |
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). | |
Compliance marks |
Temperature Sensor |
|
Range | -30° to 70°C (-22° to 158°F) |
Accuracy | ±0.5°C from -30° to 70°C (±0.9°F from -22° to 158°F) |
Resolution | 0.024°C at 25°C (0.04°F at 77°F) |
NIST Calibration | Two-point NIST calibration included |
