Series RTR500B, Data Loggers with 4G Cellular Phone Network Capability

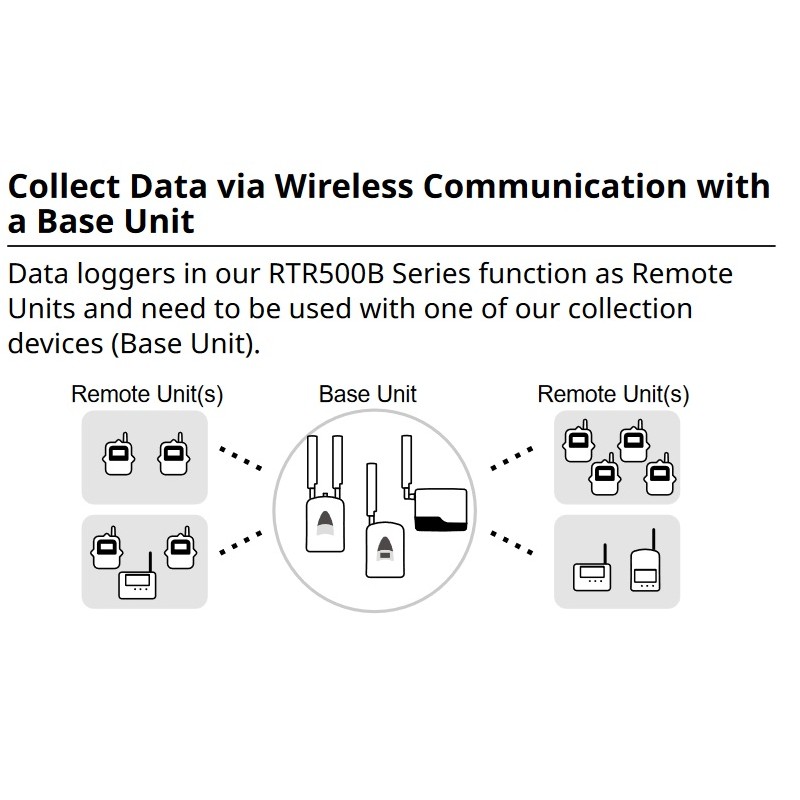

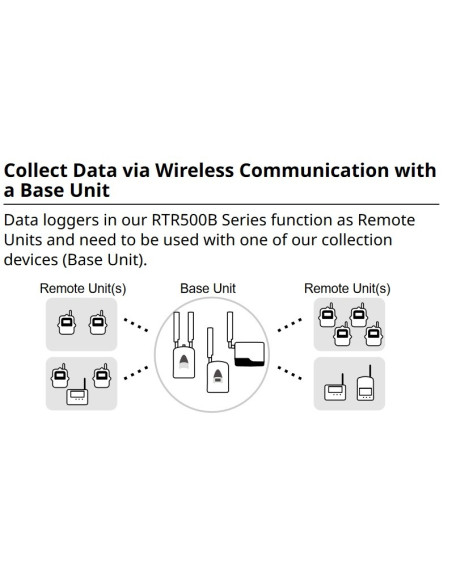

Series RTR-500/RTR500B allows you to mix and match an array of wireless radio communication loggers with various data collectors to meet your needs.

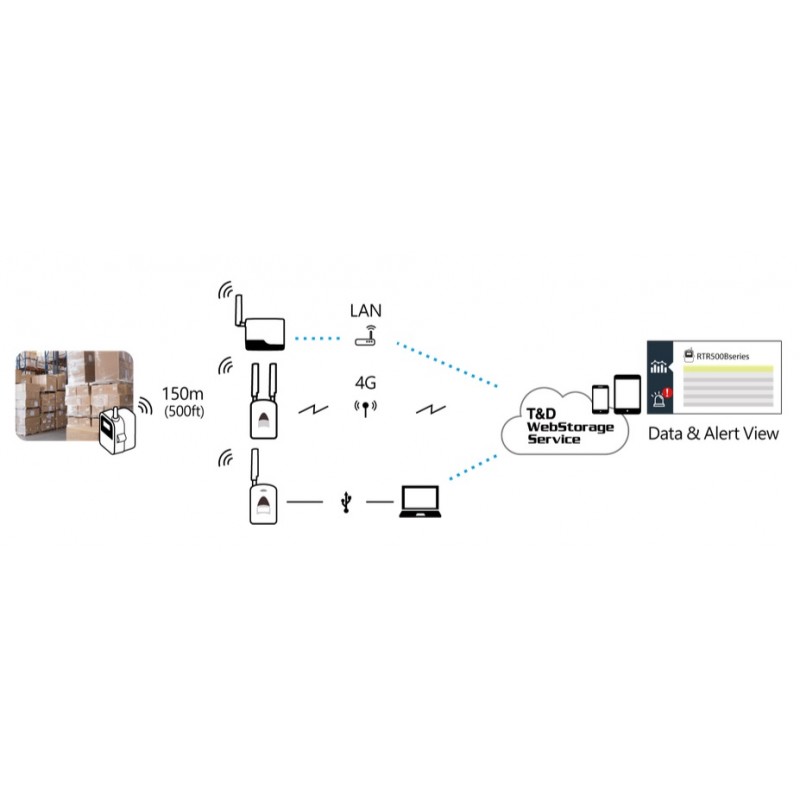

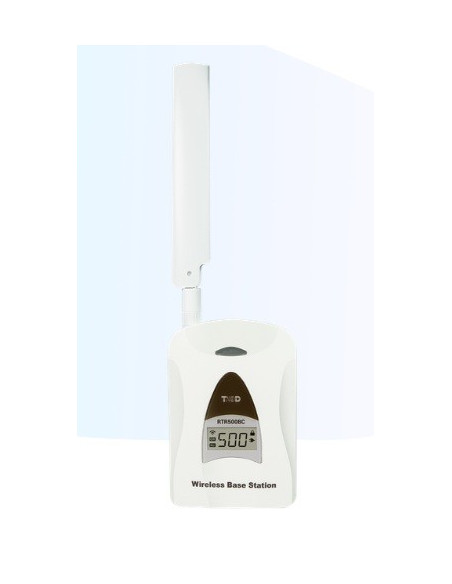

RTR500BM is a data collector equipped with 4G mobile network capability. It collects data from nearby data loggers via wireless radio communication and then automatically sends it via 4G cell phone networking* to the free cloud storage service "T&D WebStorage Service" for anytime anywhere access.

RTR500BM also has a warning monitoring function that sends a warning e-mail via T&D WebStorage Service when a set limit is exceeded.

RTR500BM is perfect for situations where you have no PC or LAN available, such as during transportation, in greenhouses or at construction sites. As long as you can supply power, you can collect and transfer data without worry and stress.

*A SIM card is required. Some carriers in the US are not supported and cannot be used with the RTR500BM.
Please contact T&D distributor for details.

RTR500BM can be combined with any of our RTR-500/RTR500B series data loggers, and up to 20 loggers can be registered for simultaneous use.
You can use our PC software “RTR500BM for Windows” or the mobile app “T&D 500B Utility” to make mobile communication settings.

Because RTR500BM uses mobile networking to transfer data, all you need to do is secure a power source and be in mobile range in order to send data to our cloud-based "T&D WebStorage Service" which makes it easy to check data, display graphs, and check warnings from your PC, smartphone or tablet anytime, anywhere.

-  Upon a warning, a notification can automatically be sent via an e-mail from the T&D WebStoarge Service and/or by connecting a buzzer or lamp to the contact output, you can set up an on-site alarm.

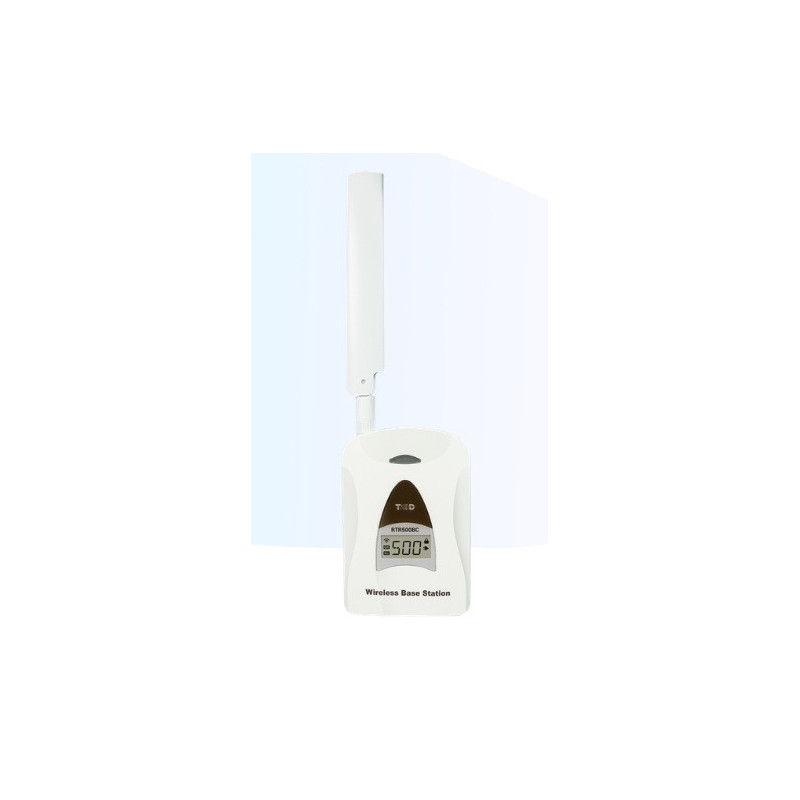

RTR500BC:  USB Connected Data Collector and Repeater w/USB Cable
RTR500BW:  Network Connected Data Collector W/ USB Cable
RTR-500DC:  Hand Held Data Collector w/ USB Cable

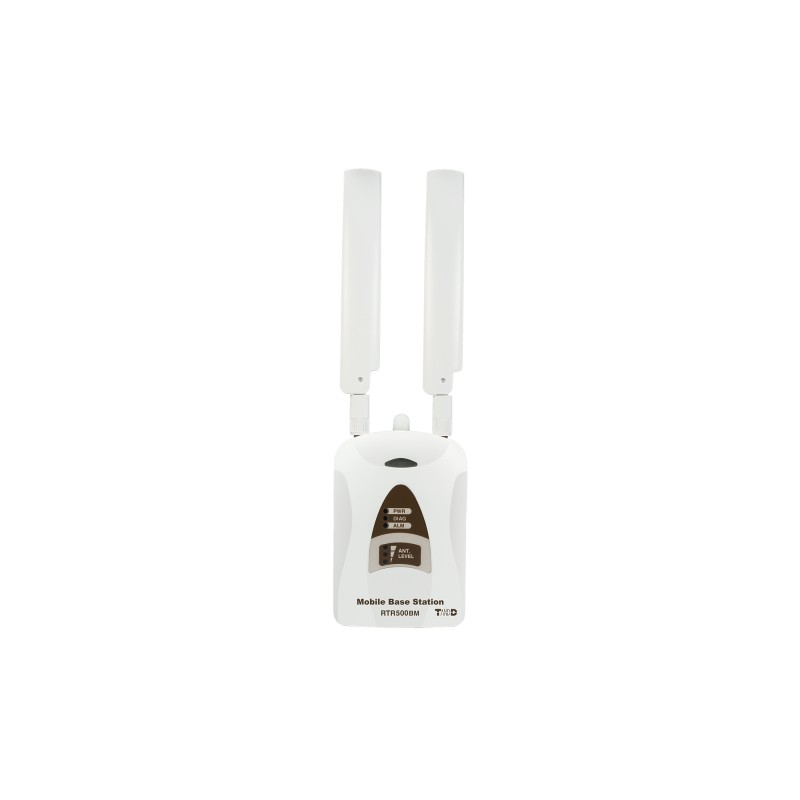

RTR500BM:  4G Cellular Connected Data Collector w/ USB Cable

RTR501B:  Internal Sensor Type
RTR502B:  External Sensor Type
RTR503B:  Humidity & Temperature
RTR505B:  Multi-functional Type
RTR507B:  Humidity & Temperature

RTR-574:    T + H + Illuminance + UV
RTR-574-S: T + H + Illuminance + UV (High-Precision Type)
RTR-576:    CO2+T+H
RTR-576-S: CO2+T+H (High-Precision Type)

RTR501BL:  Large Battery Pack Version (w/o Battery)
RTR502BL:  Large Battery Pack Version (w/o Battery)
RTR503BL:  Large Battery Pack Version (w/o Battery)
RTR505BL:  Large Battery Pack Version (w/o Battery)
RTR507BL:  Large Battery Pack Version (w/o Battery)
