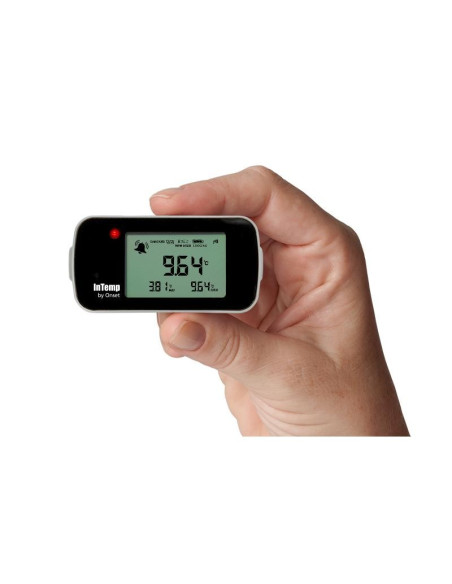

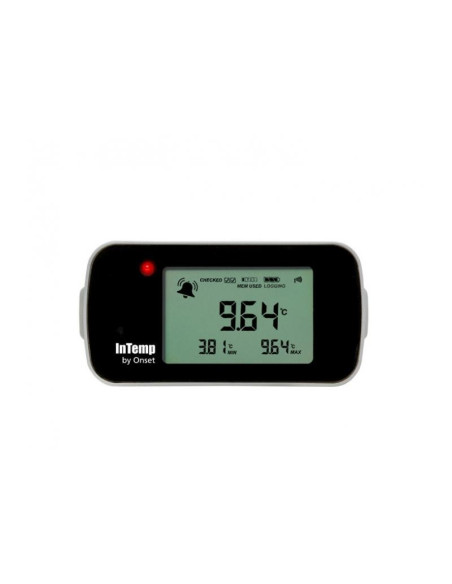

CX403 InTemp Bluetooth Low Energy Ambient Temperature Logger (-30° to 70°C)

Reference CX403

Manufacturer: Onset

Condition: New

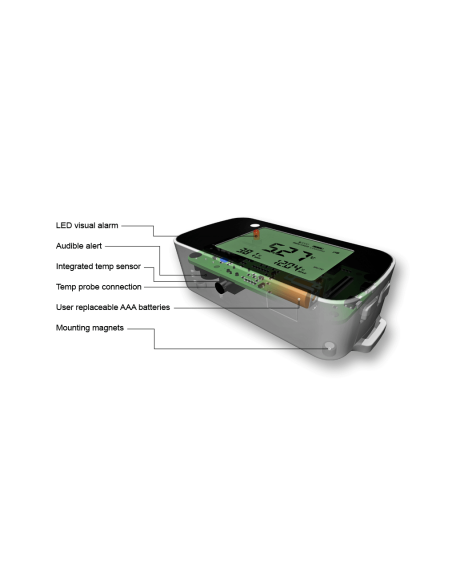

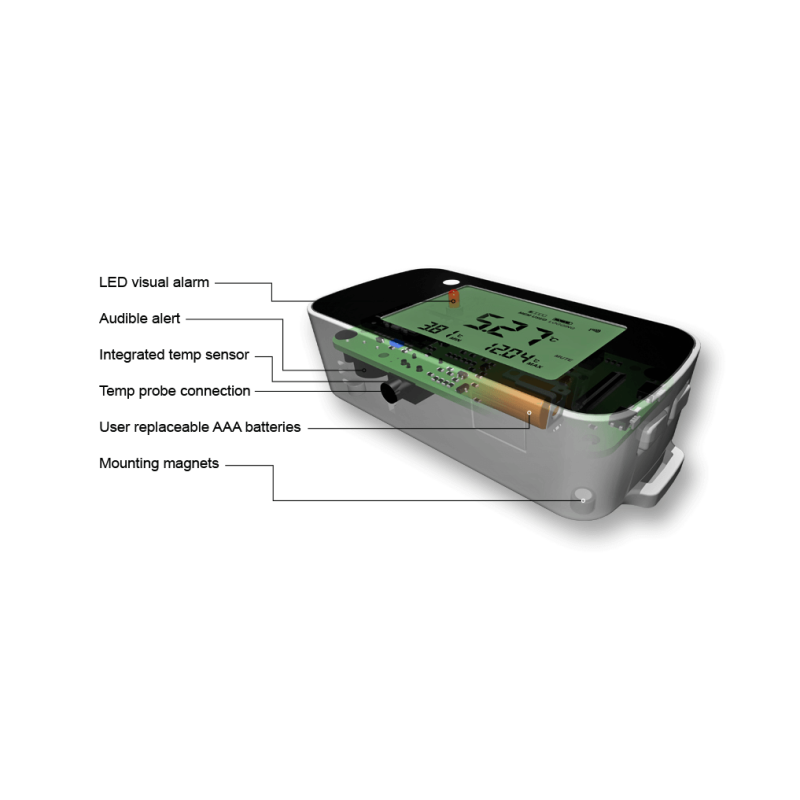

The InTemp ® CX403 data logger features an internal sensor for monitoring ambient temperature. The logger communicates wirelessly via Bluetooth Low Energy to mobile devices. The CX403 features a built-in LCD display to view ambient temperature, advanced audible and visual alarm capabilities for notification of temperature excursions, and a NIST Certification of Calibration.

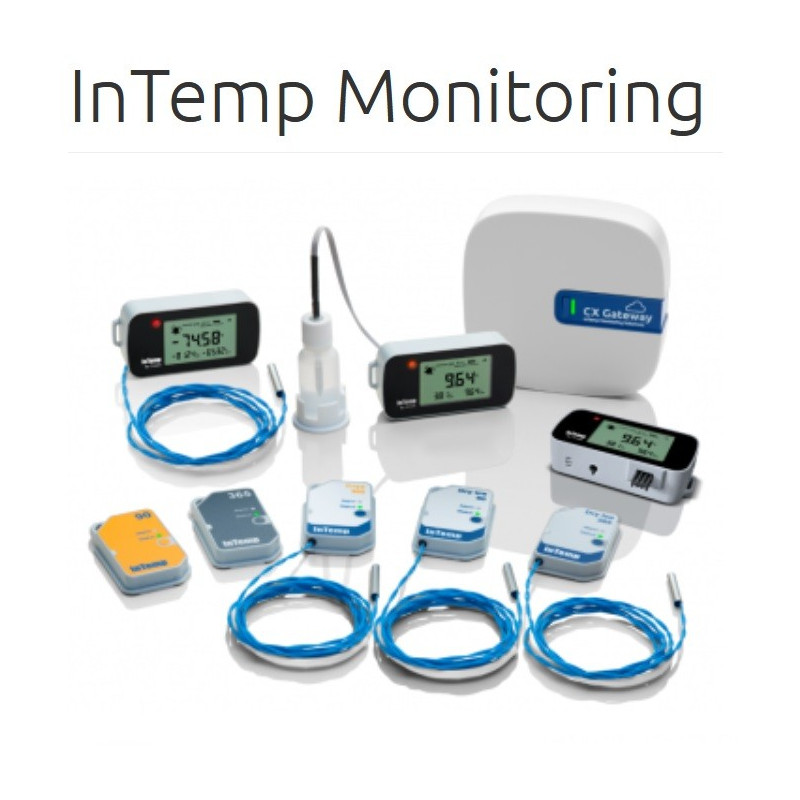

With the optional CX Gateway, you can get remote notifications of temperature excursions and automatically download data from loggers within range of the device.

InTemp App iOS InTemp App Android

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Video
RELATED PRODUCTS
Data sheet
Download

Environment of Use	Indoor
Measured Parameters	Temperature
Application	Pharmaceutical Industry
Number of Channels	1 channel (temperature)
With Display	LCD
IP Classification	IP54
Communications	Bluetooth Low Energy (Bluetooth Smart)
Battery Life	1 year
Instrument for:	Hospitals, Lab's, Clinics
Parameters Measured	Room temperature

InTemp® CX400 Download (488.31k)

InTemp® System User’s Guide Download (1.14M)

The CX403 features a built-in LCD display to view ambient temperature, advanced audible and visual alarm capabilities for notification of temperature excursions, and a NIST Certification of Calibration.

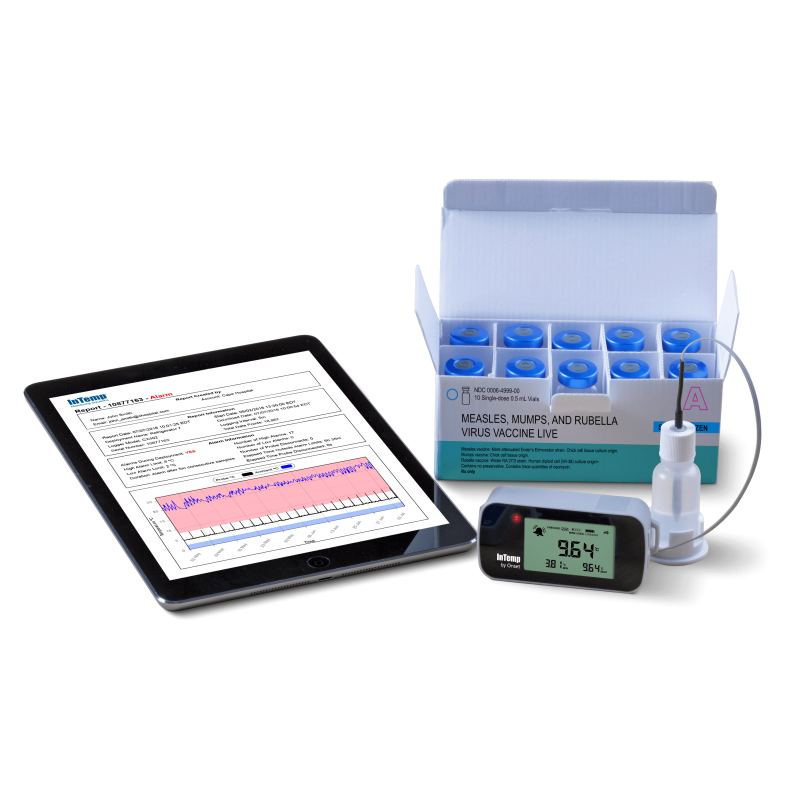

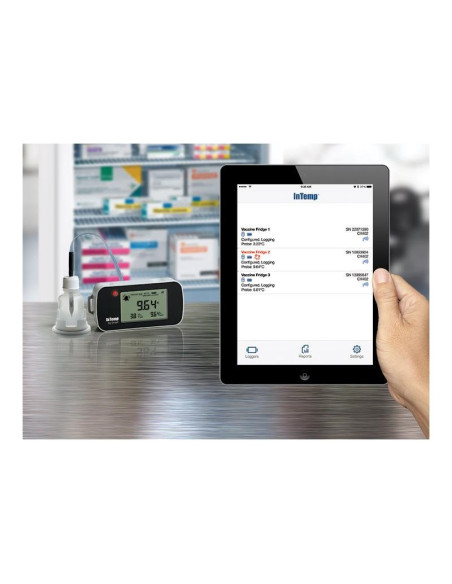

With the InTemp Gateway app, you can get remote alarm notifications on your mobile device if an excursion occurs.

Highlighted Features:

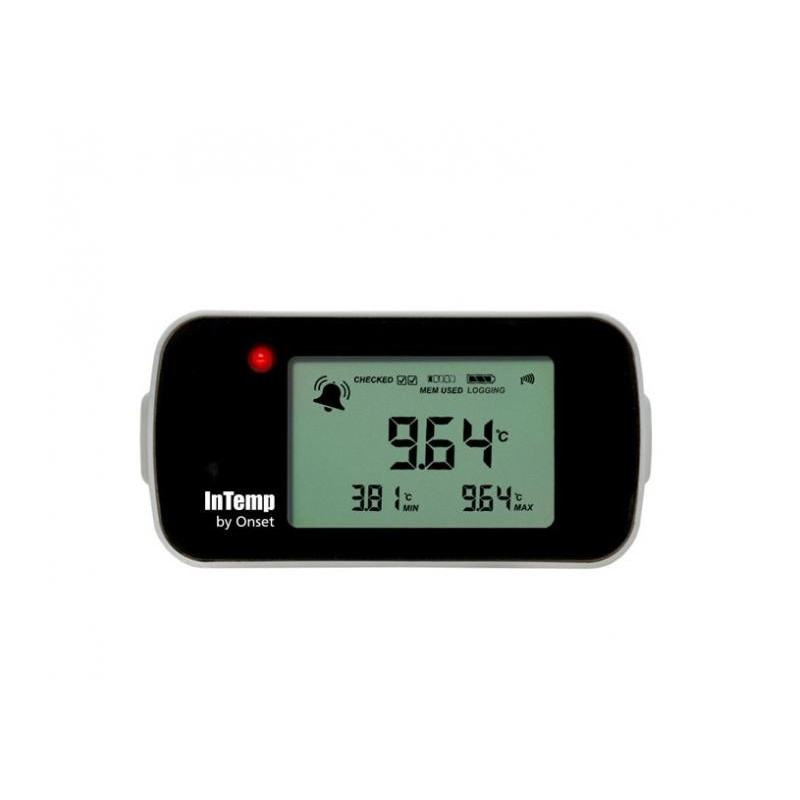

Easy-to-read display with current and daily min/max temperatures
Bluetooth transmission of data and alarm states
Logger setup and download of data in seconds – without a PC or cable

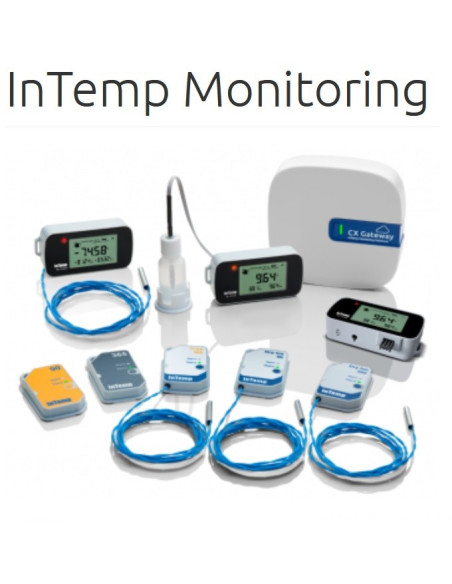

Real-time alerts and automatic data downloads with optional CX Gateway device
+/- 0.5C accuracy for reliable temperature readings
Battery-powered to guard against local power loss

Logger
Radio Power	1 mW (0 dBm)
Transmission Range	Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard	Bluetooth Low Energy (Bluetooth Smart)
Logger Operating Range	-30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing)
Logging Rate	1 second to 18 hours
Time Accuracy	±1 minute per month at 25°C (77°F)

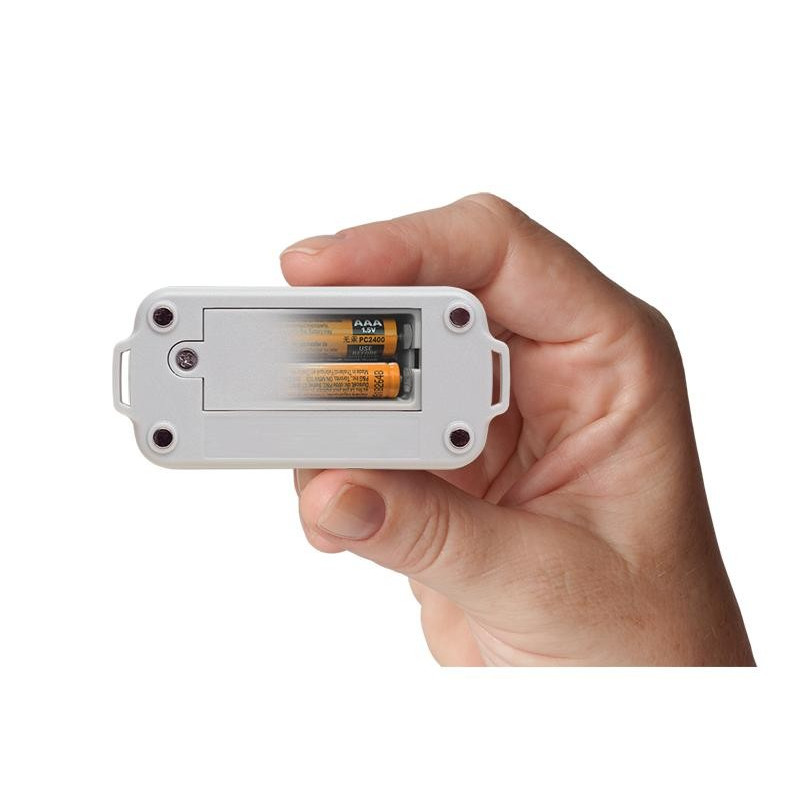

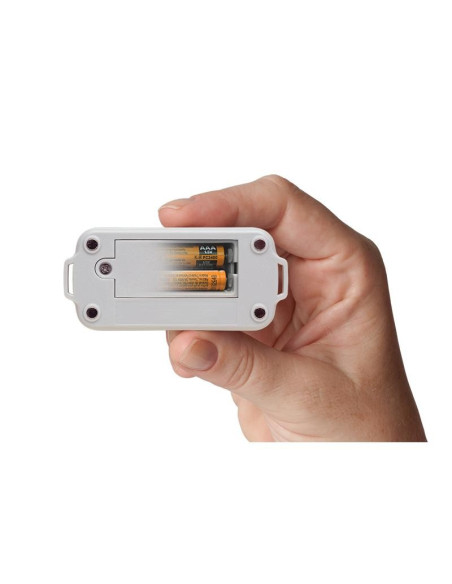

Battery Type	Two AAA 1.5 V alkaline or lithium batteries, user replaceable
Battery Life	1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life.
Memory	128 KB (84,650 measurements, maximum)
Full Memory Download Time	Approximately 60 seconds; may take longer the farther the device is from the logger
LCD	LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Dimensions	9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches)
Weight	90.2 g (3.18 oz)
Environmental Rating	IP54
CE	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

Ambient Temperature Sensor
Range	-30° to 70°C (-22° to 158°F)
Accuracy	±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F) ±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
Resolution	0.024°C at 25°C (0.04°F at 77°F)
Drift	<0.1°C (0.18°F) per year
Response Time	15 minutes typical to 90% in air moving 1 m/s
