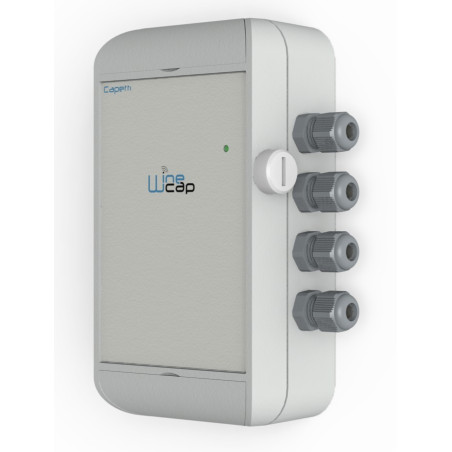

Name: WSD12-4VW Wireless-Smart-Data Loggers for Vibrating wires and sensor temperature
Brand: Capetti Elettronica s.r.l.
SKU: WSD12-4VW

Reference: WSD12-4VW - Manufacturer: Capetti Elettronica s.r.l.

- 4 channels Wireless Smart Datalogger
- Up to 4 inputs for vibrating wires (500÷4000 Hz) and up to 2 transducer temperatures
- Respectively configurable inputs (2+2, 3+1, 4+0)
- Type "C" lithium internal battery for a battery life up to 4 years with 4 vibrating wires and samples every 60 minutes
- IP 65 sealing.

Ask for Quote

► Wireless Smart Datalogger
The WSD12-4VW is a datalogger with 4 input channels to acquire Frequency and Temperature, on vibrating wires (extensometers, piezometers, crack meters), with storage functionality of samples acquired.

Configurable using jumpers for:
► 4 vibrating wires (frequency)
► 3 vibrating wires (frequency) and 1 temperature
► 2 vibrating wires (frequency) and 2 temperatures
The desired configuration must be issued during the enrolling process.

► The radio module High Reliability (unique 868MHz radio technology. implementing frequency hopping on 11 channels) based on WINECAP™ LuPo protocol (Long Range) provides an excellent radio range, low battery consumption and the certainty of data recovery in any situation (black out/signal obstacles).

► With a backup memory onboard may store the last 64,000 samples per channel even if the wireless link is down. Samples can be downloaded using a USB connection.
Using the configuration software the sampling interval may be set and two thresholds per channel can be activated.

► May be interfaced with:
- all the basestations of MWDG product line
- all the basestations of MWLI product line

► If necessary, radio coverage may be extended up to 16 times using WR12 routers (battery powered repeaters with battery life up to 7 years) between the datalogger and the basestation.

Power supply	8.5A/h - 3.6V type “C” lithium internal battery
Battery life (*)	Up to 4 years (samples every 60 minutes, radio signal quality at least sufficient and 4 vibrating wires)
*Measures acquired (4 channels***)	· Frequency · Temperature
Sampling interval (*)	Selectable from one minute to 24 hours (60 minutes default)
Datalogger capacity	64,000 samples
Working temperature	· Operative: -30°C ÷ +60°C · Warehousing: -40°C ÷ +70°C
Radio frequency	ISM 868MHz
Radio coverage (**)	From 800m up to 12.8Km on sight
Sealing	IP65

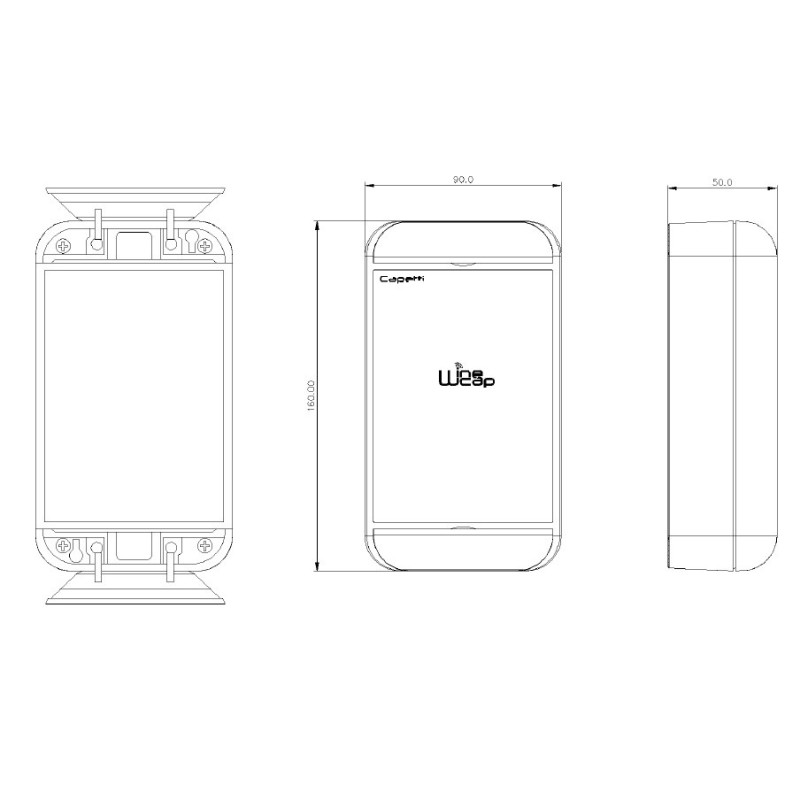

Dimensions	90 x 160 x 50mm
Weight	450g
Case material	ABS
Mounting	Fix on 4 points
Connections	Wireless/USB
Cable external diameter	4.7mm maximum
Copper wire section	0.05 ÷ 2.5mm² / ÷ 14 AWG
Frequency - Transducer type	Vibrating Wire
Frequency - Excitation range	500 ÷ 4000Hz
Frequency - Oscillator accuracy	± 50ppm
Frequency - Measure resolution	0.1µs / 0.1Hz
Temperature - Transducer type	NTC3KΩ
Temperature - Measure range	-20°C ÷ +70°C
Temperature - Measure accuracy	0.25°C at 25°C
Temperature - Measure resolution	0.01°C
*2VW-2NTC configuration (Default) (****)	Two frequencies and two temperatures
3VW-1NTC configuration (***)	Three frequencies and one temperature
4VW configuration (***)	Four frequencies
