HCT-0024 DC CURRENT SENSOR WITH 4V DC OUTPUT

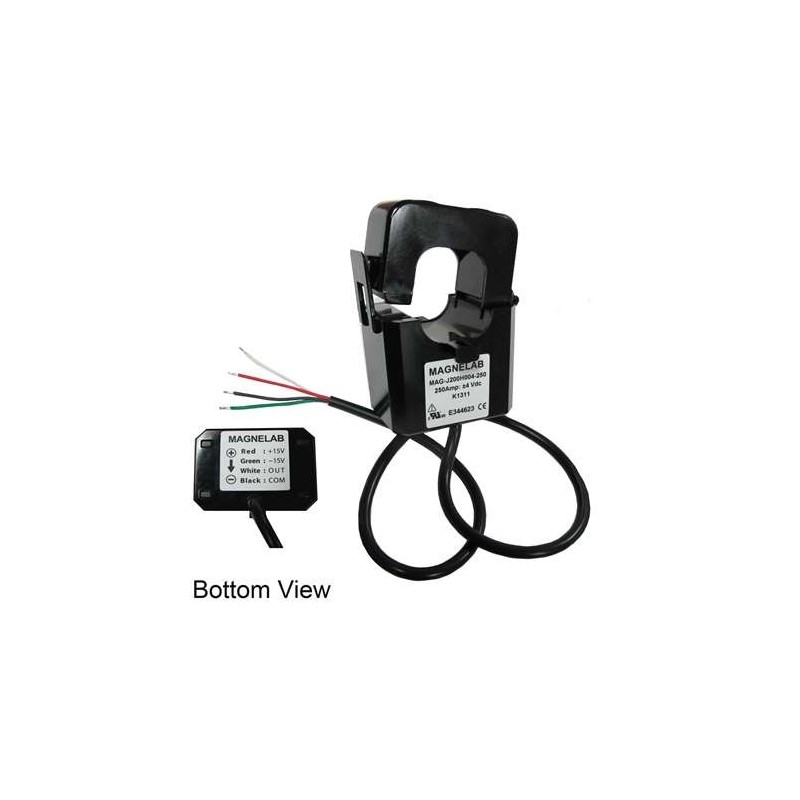

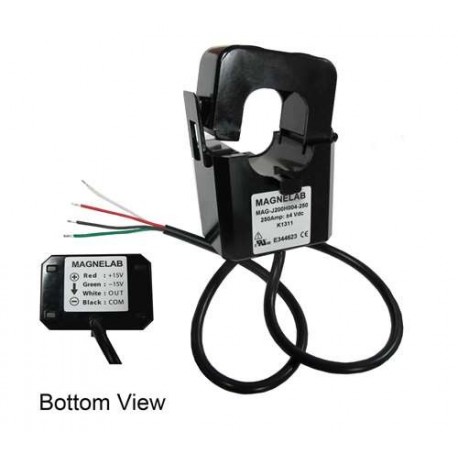

The HCT-0024 (previously MAG-J24H004) is a DC current transducer that uses the Hall Effect principle to sense 200 to 250A DC current and output 4 Vdc. The HCT-0024 uses accurate laminating core split technology and is designed for strong durability while providing accuracy in low current situations. The HCT-0024 is a compact one-touch split structure, allowing easy installation. It is 1% accurate and passes IEC61010-1, UL61010-1, and EN61010-1.

Features

• Primary amperage range: Up to 250 Adc
• Outputs 0-4 Vdc
• Accuracy +/- 1%
• Powered by 15 Vdc
• Response time: 3 microseconds
• Saturation Current: 300A
• Temperature: -10 to 60 degrees C operating
• Humidity: 85% operating
• Insulation Withstand Voltage: 1500 Vac / 1 min
• Insulation Resistance: 500 Vdc / 500M Ohms max
