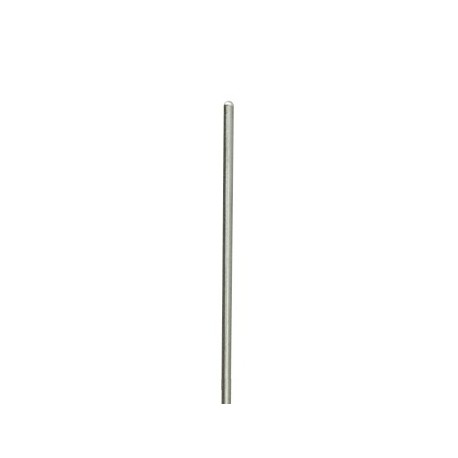

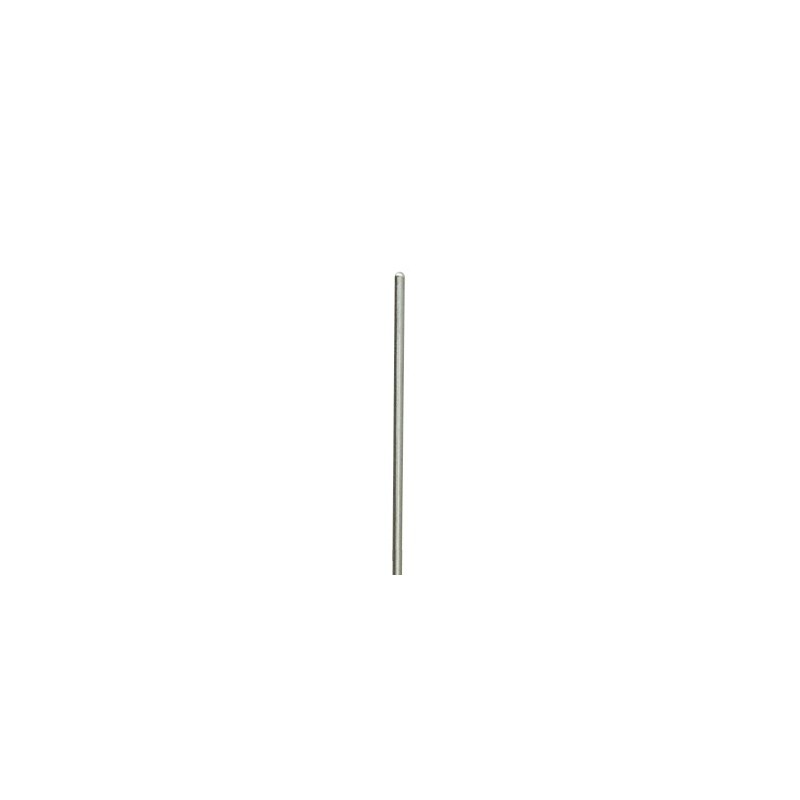

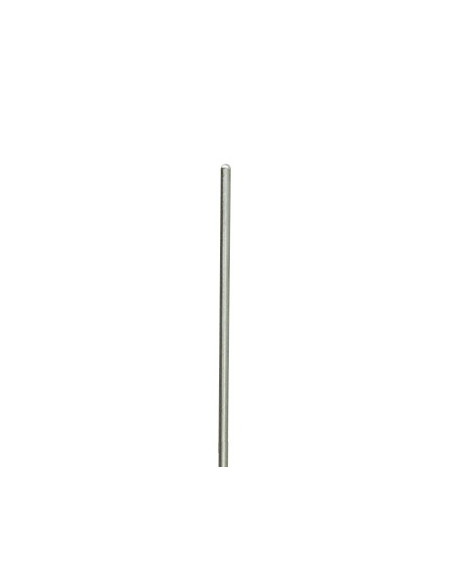

TR-1220 Temperature Sensor

Reference TR-1220

Condition: New

Measurement Range	-60 to 155°C

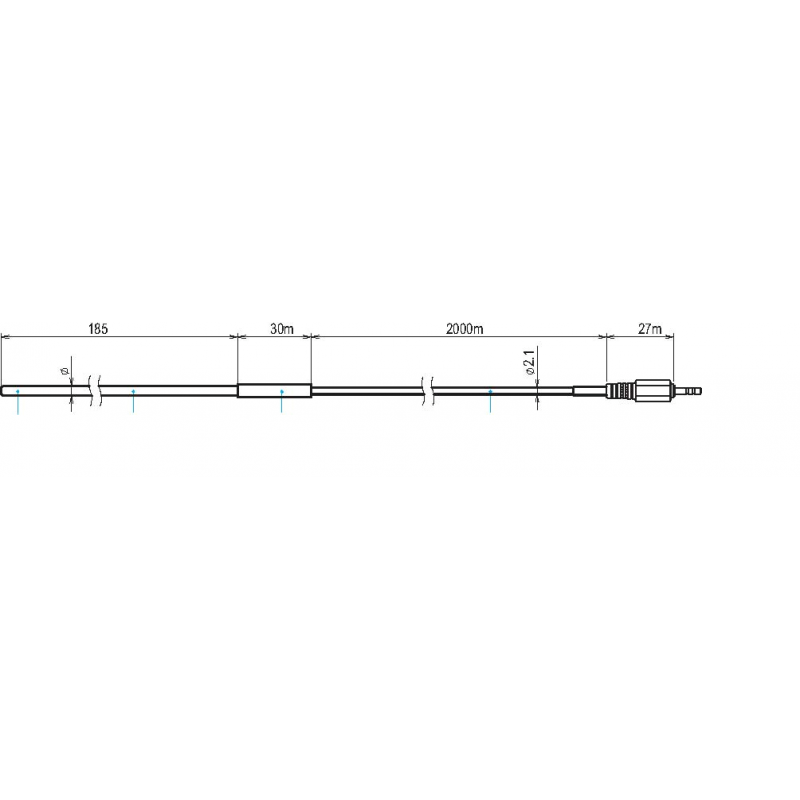

Sensor	Stainless Protection Sensor 185mm / φ3.0mm
Accuracy	Avg. ±0.5°C at-40 to 80°C Avg. ±1.0°C at -60 to -40°C or 80 to 100°C Avg. ±2.0°C at 100 to 155°C
Response Time (90%)	Approx. 150sec. (in air) Approx. 7sec. (in agitated water)
Cable	Fluoropolymer-Coated Electrical Wire 2.0m
Wateproof Capacity	Stainless protection pipe is submersible, Other sections are immersion proof.
Extendable Cable Length	3.0m
