Reference: HCT-0036-500 - Manufacturer: Magnelab

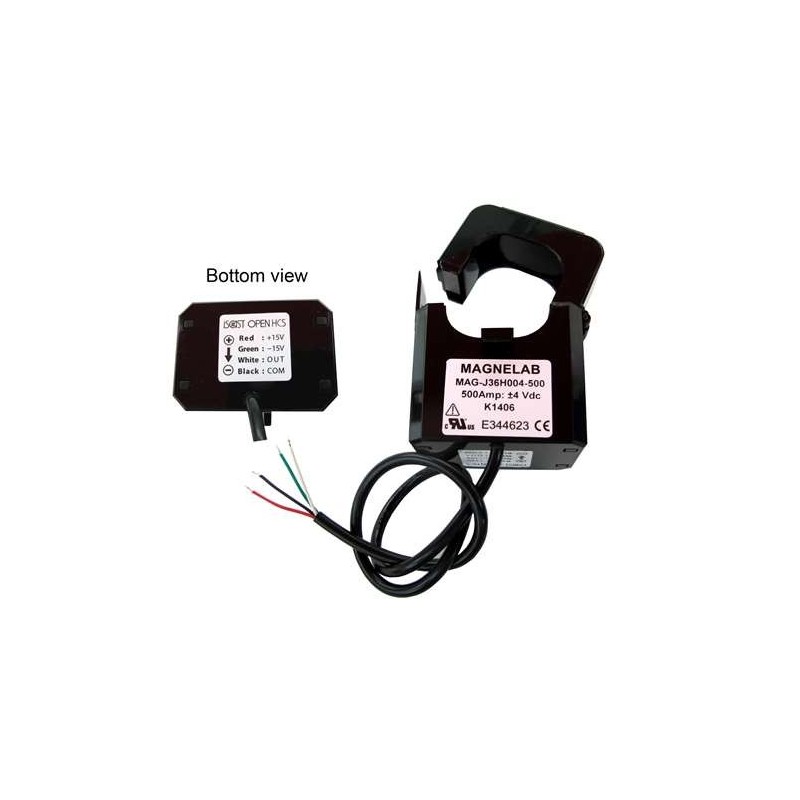

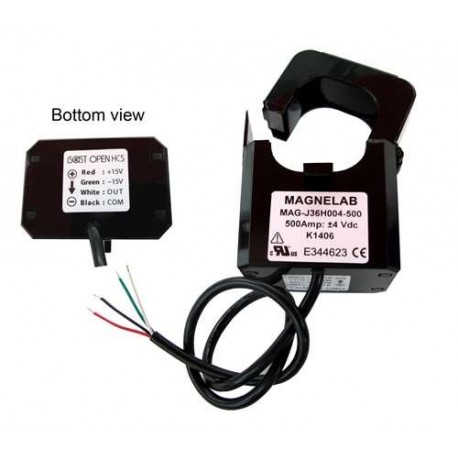

The HCT-0036-500 (previously MAG-J36H004-500) is a DC current transducer that uses the Hall Effect principle to sense 500A DC current and output 4 Vdc. The HCT-0036-500 uses accurate laminating core split technology and is designed for strong durability while providing accuracy in low current situations. The HCT-0036-500 is a compact one-touch split structure, allowing easy installation. It is 1% accurate and passes IEC61010-1, UL61010-1, and EN61010-1.

Features

  • Primary amperage range: 500 Adc
  • Outputs 0-4 Vdc
  • Accuracy +/- 1%
  • Powered by 15 Vdc
  • Response time: 3 microseconds
  • Saturation Current: 750A
  • Temperature: -10 to 60 degrees C operating
  • Humidity: 85% operating
  • Insulation Withstand Voltage: 1500 Vac / 1 min
  • Insulation Resistance: 500 Vdc / 500M Ohms max
