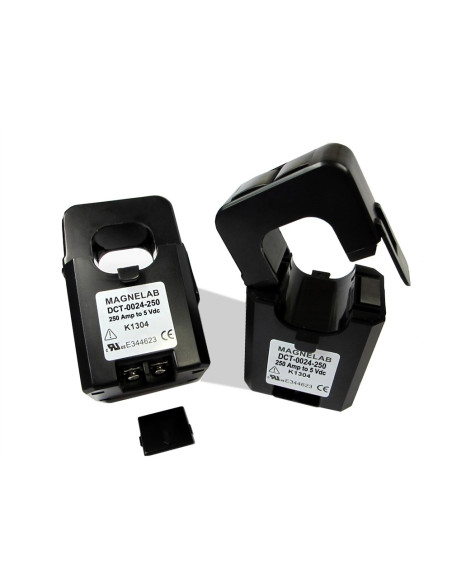

DCT-0024-250 split-core current sensors transform an AC input current up to 250 Amps to a 5Vdc

Reference: DCT-0024-250 - Manufacturer: Magnelab

 The opening is 24mm.



Magnelab's DCT-0024 (previously MAG-J24D005) is a 24mm split-core current sensor that transforms an AC current input 250 Amps to 5 Vdc. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The DCT-0024 has a self-locking mechanism.

Features

  • Rated input 250 Amps AC
  • Output of 5 Vdc at rated current (7.5 Vdc limit built in)
  • Accuracy +/- 2% full scale (50/60 Hz Sinewave)
  • Accuracy at 5% to 120% of rated current
  • Output Impedance 5.8 KOhms
  • Output Ripple +/- 5%
  • 2 X M3-Screw terminals
  • System Voltage: CAT III 600 VAC
  • UL recognized, CE and RoHS Compliant
  • Operating condition -20℃, ≤ 85% RH
  • Storage condition -30℃ to 90℃, ≤ 85% RH
  • 10-Year Warranty
