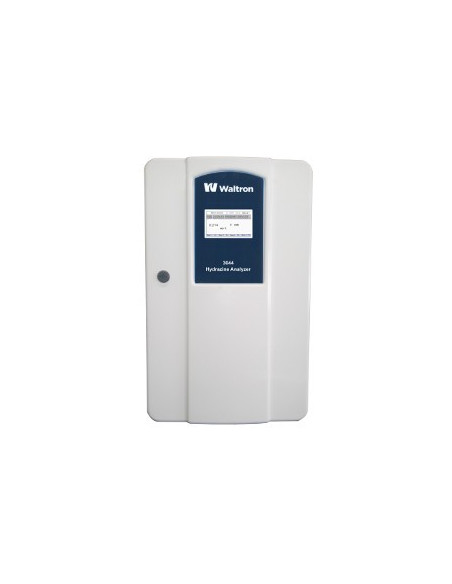

3044 Hydrazine Analyzer

Waltron’s 3040 series colorimetric analyzers provide exceptional results for online measuring of silica, phosphate and other parameters.

Small size and compact layout make the 3040 series an excellent choice for a variety of applications and environments. Waltron’s 3040 series colorimetric analyzers have been completely redesigned to offer unique and simplified configurations compared to previous models.

Range
0 – 100ppb, 0 – 500ppb

Accuracy
+/– 2% of reading

Reproducibility
+/– 2% of reading

Sampling Frequency (Cycle Time)
One reading every 20 mins, adjustable

Required Maintenance
Every 2 weeks replenish reagents; Quarterly replace tubing

Reagent Consumption (approximate)
1 reagent, 4L per month

Sensor Classification
Colorimetric with glass flowcell and LED source

Application
10-45°C analyzer (50-113°F)

Ambient Temperature Range
10-45°C analyzer (50-113°F)

Atmospheric Pressure Range
No Limits

Humidity
Up to 90% not condensable

Unit Dimensions
Height=23.6”(60 cm), Width=15”(38 cm), Depth=8.3”(21 cm)

Positioning and Installation Details
Wall mounting, bench supported, or panel mounting (optional)

Weight
17 kg (37.5 lbs.

Degree of Protection
IP55 (NEMA 4): Wet section, IP65 (NEMA 4x): Electronics

Alarms
2 or 4 configurable alarm relays (Result, loss of sample, fault)

Power Supply (on request)
110-220Vac, 50-60 Hz 80 VA

Certification (on request)
Meets low voltage and low electromagnetic compatibility di

SAMPLE DELIVERY OPERATING CONDITIONS

Temperature Range
5-55º C (41-131º F)

Inlet Sample
100–500 ml/min, atmospheric, flexible tubing O.D. 1/4"(6mm)

Outlet Sample
Atmospheric, waste tubing O.D. 3/8"(9mm)

PH
3-12

Sample Conditioning Requirements
Filtering between 10 and 60 micron, depending on the matrix, needed only to avoid clogging.

Materials in Contact with Sample
Glass, Silicone, Plexiglass, Stainless Steel AISI 316

SIGNAL OUTPUTS

Analog Outputs
4-20mA (galvanic isolator module available as option) or 0-5V)

Serial I/O for Signals

OPERATIONAL CALIBRATION

Single/Multi Point
Multi-Point: zero and mid range

Matrix Corrections
Yes, sample blank correction

Manual/Automatic
Both
