Reference: SCT-2000 - Manufacturer: Magnelab

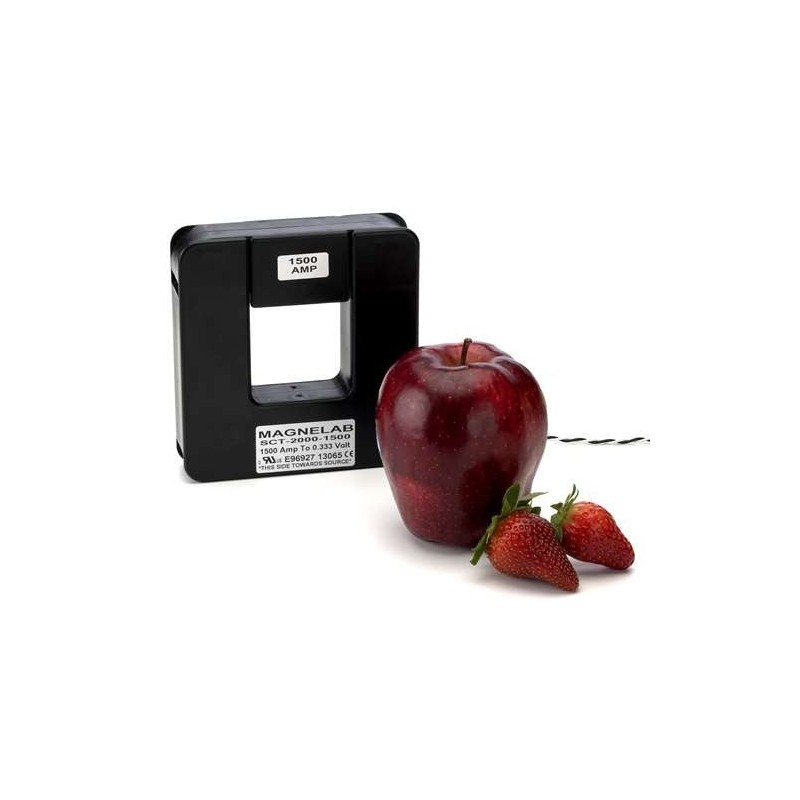

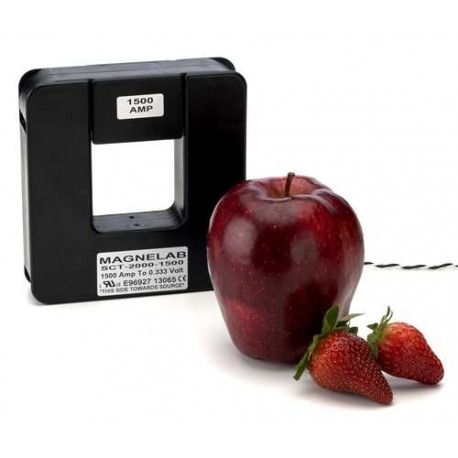

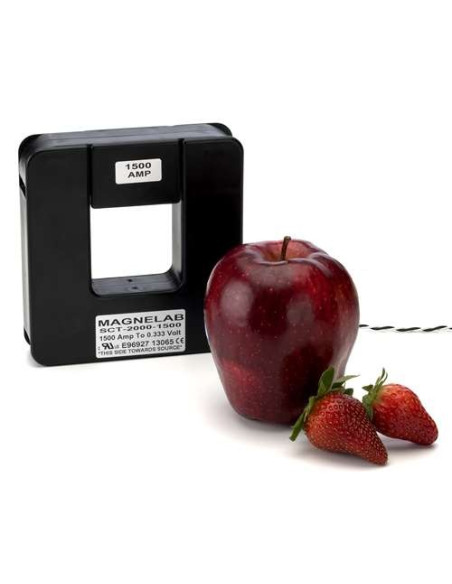

Magnelab's SCT-2000 Series split-core current sensors transform an AC input current up to 1500 Amps to a 0.333 Volt output. The SCT-2000 has a 2" opening. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The SCT series have a self-locking mechanism.

Frequent Applications

  • Data logging
  • Recording
  • Power monitoring
  • Energy management
  • Cost allocation
Features
  • Rated input up to 1500 Amp
  • Output of 0.333 Volt at rated current Linearity accuracy +/- 1%
  • Accuracy at 10% to 130% of rated current
  • Phase angle < 2 degrees measured at 50% rated current
  • Operates from 50 Hz to 400 Hz
  • 8 ft. twisted-pair lead
  • Maximum Voltage: 600 V (on bare conductor)
  • UL recognized, CE and RoHS compliant
  • 10-Year Warranty
