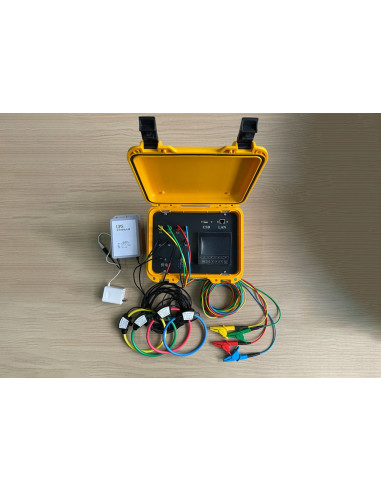

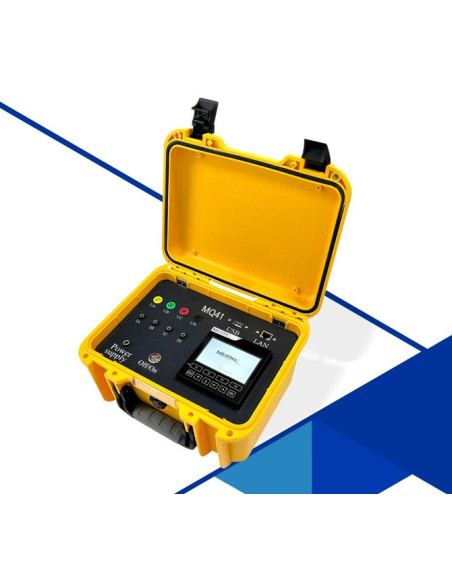

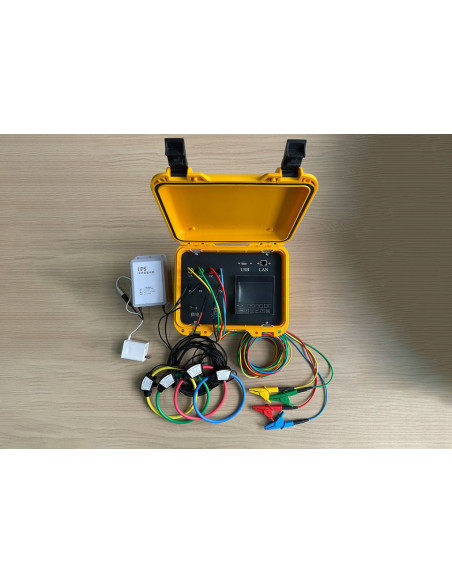

MQ41 three phase power quality analyzer
Three-phase analyzer for electrical measurement and power quality analysis with support for open-type Rogowski coils or voltage-output current transformers. It includes waveform recording, 32 GB memory, and Ethernet plus RS485 communications.
The MQ41 is a three-phase power quality analyzer intended for field testing, maintenance, and diagnostics in distribution systems. When connected to an open-type Rogowski coil or a voltage-output current transformer, it enables non-dismantling tests, simplifying work on panels and lowering intervention costs.
The unit supports both single-phase and three-phase systems and measures current, voltage, power, power factor, and energy. It also evaluates power quality parameters such as harmonics, unbalance, voltage swell, and voltage dip, providing a complete view of the electrical behavior of the installation.
In addition to real-time measurement, it offers waveform records and programmable interval value records. The built-in 32 GB memory stores historical data, while RJ45 Ethernet and RS485 interfaces enable communication with supervision platforms through Modbus TCP and Modbus RTU.
| Reference | MQ41 |
| Type | Three phase power quality analyzer |
| Application | Power analysis, electrical measurement, and power quality monitoring |
| Wiring systems | 3P4W_4CT, 3P4W_3CT, 3P3W_3CT, 3P3W_2CT, 1P3W, 1P2W |
| Compatible sensors | Open Rogowski coil, voltage-output current sensor |
| Voltage access | Direct connection or through a voltage transformer |
| Storage | Integrated 32 GB TF card |
| Data export | USB export with FAT32 file system |
| Communications | RJ45 Ethernet and RS485 |
| Protocols | Modbus-TCP and Modbus-RTU |
| Power supply | 95~265 VAC / 110~370 VDC |
| Maximum consumption | 5 VA |
| Display | 3.5 inch IPS, 480 x 800 |
| Dimensions | 96 x 96 x 94 mm |
| Weight | 850 g |
| Operating temperature | -20 C to +55 C, humidity below 90% RH |
| Storage temperature | -40 C to +70 C, humidity below 95% RH non-condensing |
| Altitude | Up to 2 km |
| Measurement category | CAT III 600 V |
| Protection | IP30 |
