ME132 Multi-circuits Energy Meter
Smart energy meter for multi-circuit and single-circuit applications in three-phase four-wire systems. It combines compact DIN mounting, RS485 Modbus-RTU communication, and a Rogowski coil for non-intrusive installation.
The ME132 is a high-performance smart energy meter designed for precise measurement in both multi-circuit and single-circuit applications. Its architecture is intended for three-phase four-wire systems and installations where several consumption points must be monitored with a compact and easy-to-deploy device.
The unit features RS485 wired communication with Modbus-RTU, enabling stable data transmission and straightforward integration with monitoring, automation, or energy management systems. With a module width of only 1P (18 mm) and a DIN-rail mounting format, it minimizes panel space usage and allows flexible scaling of measurement points.

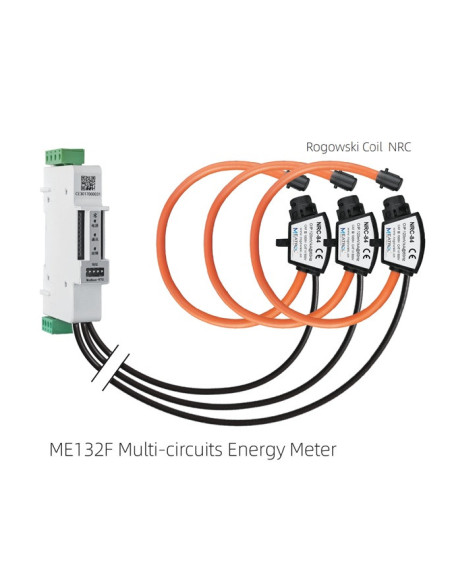

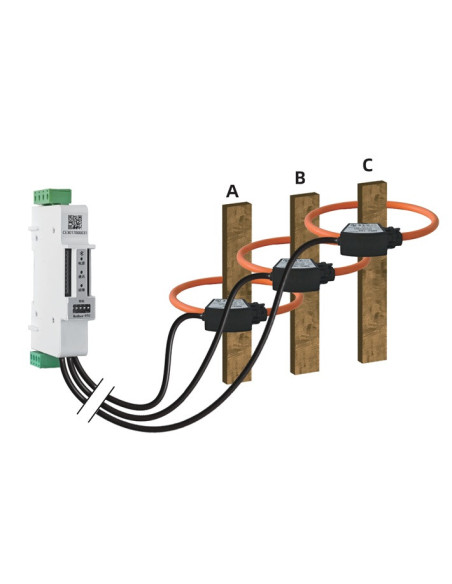

The associated Rogowski coil can be installed directly around busbars, copper bars, or cables without shutting down power or disassembling existing wiring. This improves installation safety, reduces intervention time, and simplifies retrofit or instrumentation work in live electrical panels.
| Reference | ME132 |
| Type | Smart multi-circuit energy meter |
| Application | Multi-circuit and single-circuit measurement in three-phase four-wire systems |
| Communication | RS485 |
| Protocol | Modbus-RTU |
| Mounting | DIN rail |
| Module width | 1P (18 mm) |
| Associated sensor | Rogowski coil |
| Sensor installation | On busbars, copper bars, or cables without dismantling |
| Installation benefits | No power shutdown, improved safety, and space saving |
