Reference: SCT-3000 - Manufacturer: Magnelab

 The SCT-3000 has a 3" opening and a variety of amperage rating options

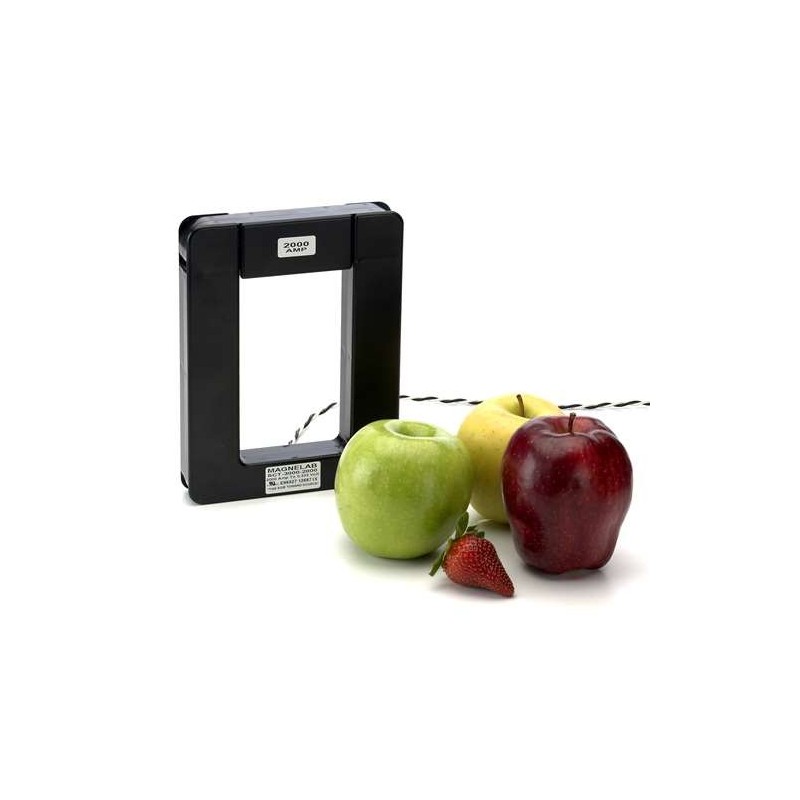

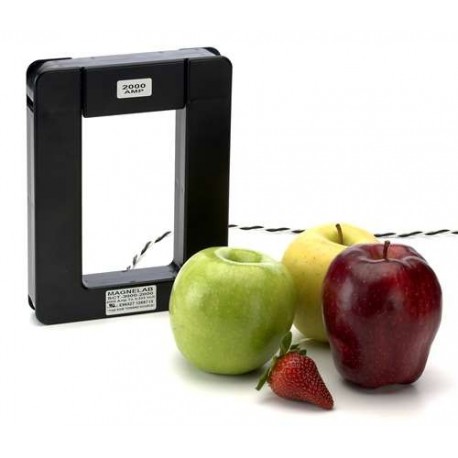

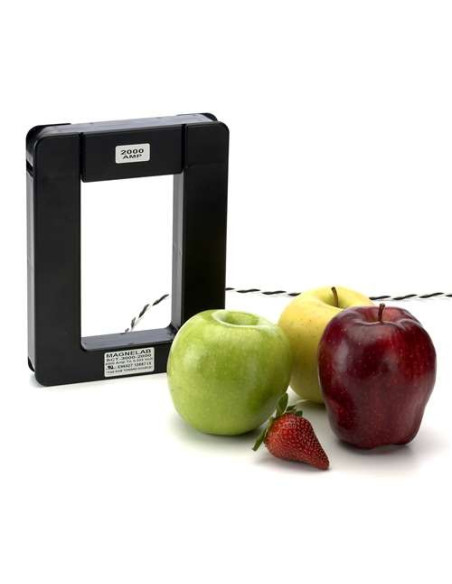

Magnelab's SCT-3000 Series split-core current sensors transform an AC input current up to 3000 Amps to a 0.333 Volt output. The SCT-3000 has a 3" opening and a variety of amperage rating options. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The SCT series have a self-locking mechanism.

Frequent Applications
  • Data logging
  • Recording
  • Power monitoring
  • Energy management
  • Cost allocation

Features

  • Rated input up to 3000 Amp
  • Output of 0.333 Volt at rated current
  • Linearity accuracy +/- 1%
  • Accuracy at 10% to 130% of rated current
  • Phase angle < 2 degrees measured at 50% rated current
  • Operates from 50 Hz to 400 Hz
  • 8 ft. twisted-pair lead
  • Maximum Voltage: 600 V (on bare conductor)
  • UL recognized, CE and RoHS compliant
  • 10-Year Warranty
