TCL-3M165E Dry Block Temperature Calibrators and Micro-Bath Calibrators

New, portable temperature calibrators are lightweight and easy-to-use. Five models are available to cover the range from -35 to 650°C and wet or dry insertion, non-contact and surface calibration requirements.

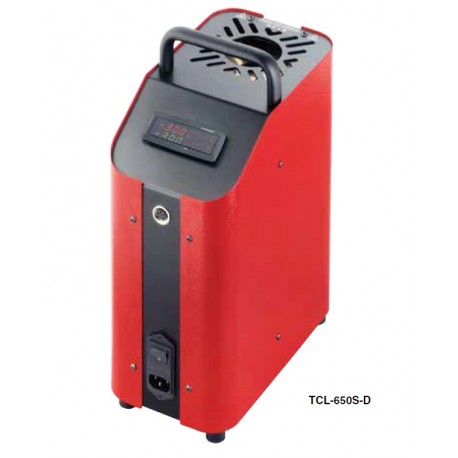

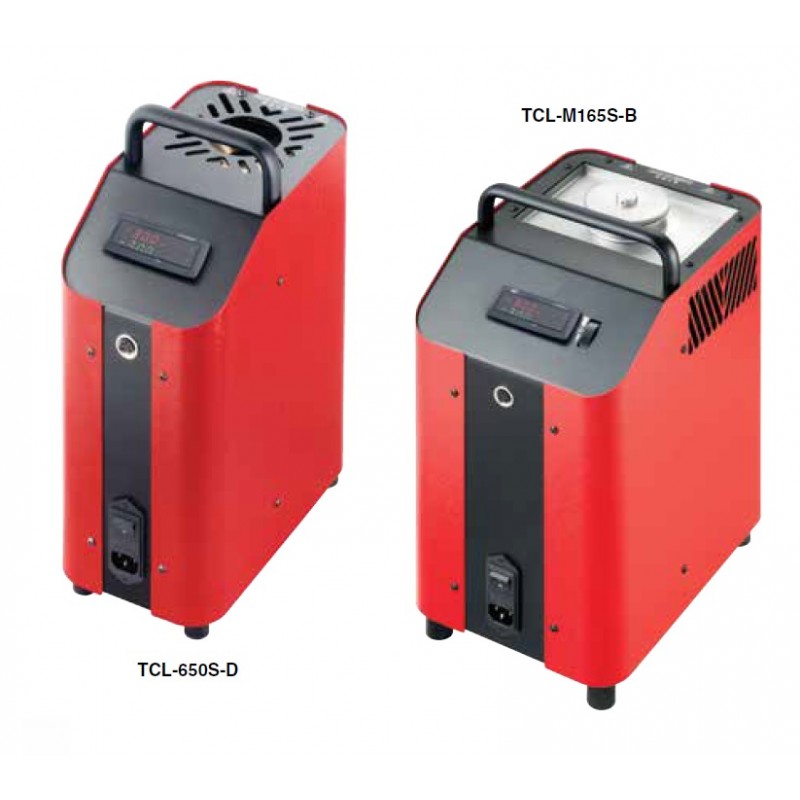

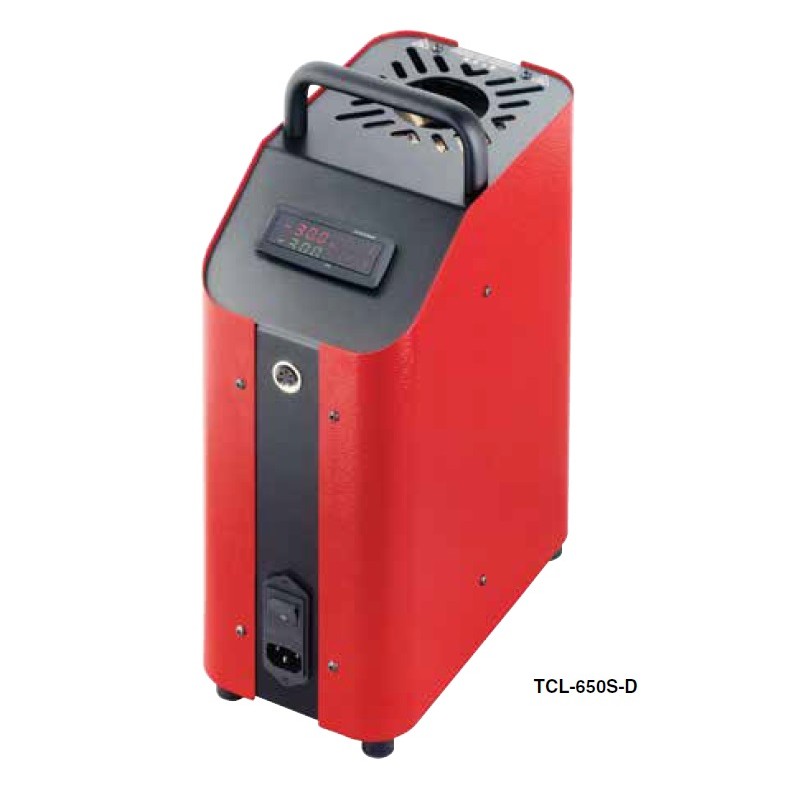

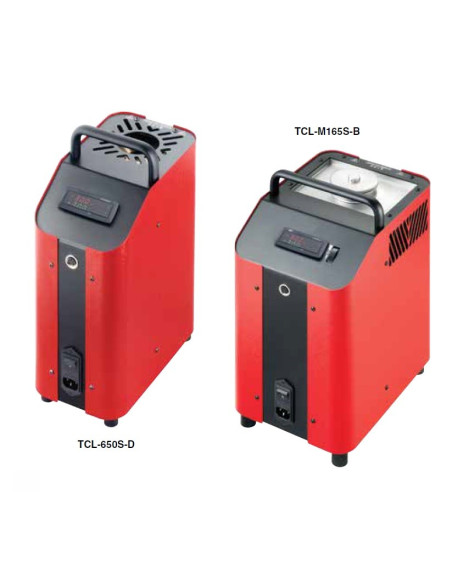

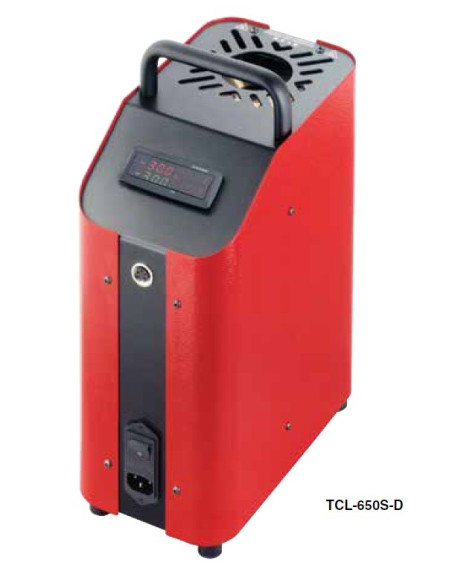

    • Dry Block Calibrator: TCL-650S-D, ambient to 650°C (1202°F)
    • Dry Block Calibrator: TCL-165S-D, -35 to 165°C (-31 to 329°F)
    • Micro Bath Calibrator: TCL-M165S-B, -35 to 165°C (-31 to 329°F)

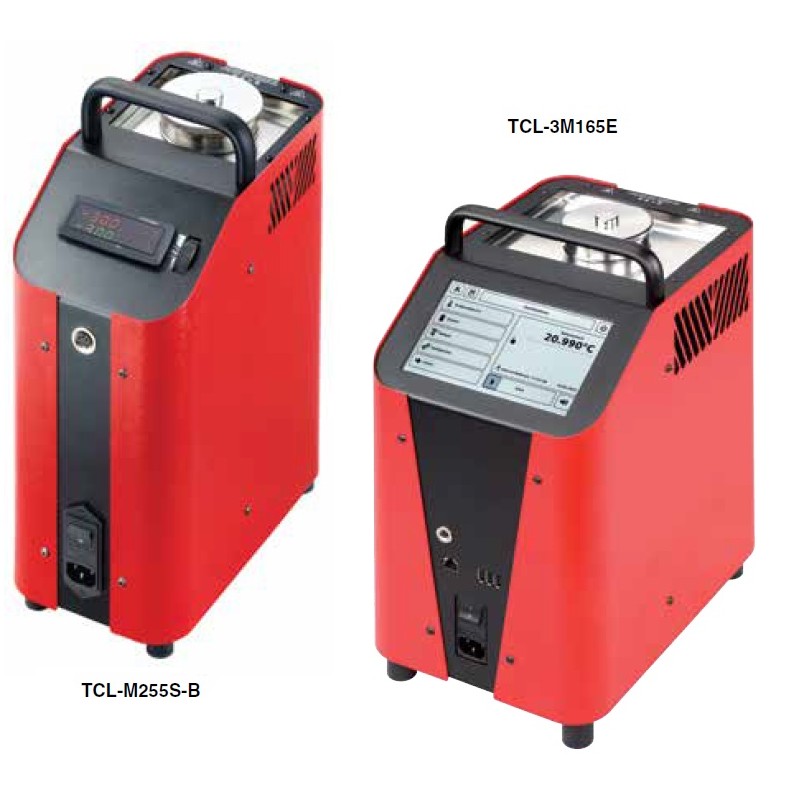

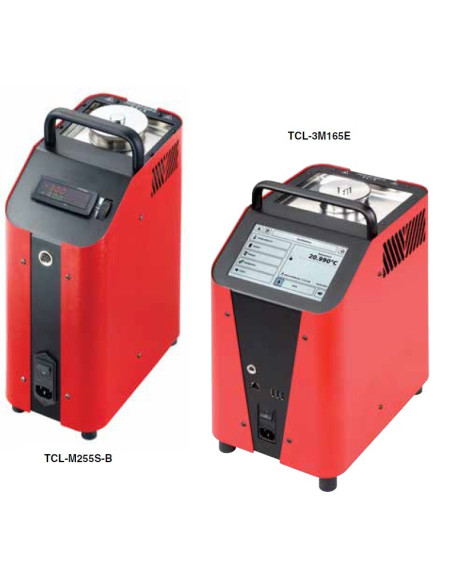

    • Micro Bath Calibrator: TCL-M255S-B, ambient to 255°C (491°F)
    • Multi-function Calibrator: TCL-3M165E, Dry Bath, Micro Bath, Infrared Blackbody, and Surface Temperature

Why calibrate? Temperature sensors are subject to mechanical, thermal and chemical stresses. This results in a drift in output over time. Regular calibration of the sensors provides information on the difference between the actual temperature and the measured temperature and makes the specific drift visible. This data can be critical to maintaining a stable process operation.

Dry block calibrators and micro bath calibrators are one of the best means to check and calibrate a wide range of temperature measuring instruments and temperature sensors. Mechanical, electro-mechanical or electronic measurement equipment can be checked with ease. These compact and durable calibrators are easy to transport, user friendly and offer all the features required for industrial and laboratory calibration requirements.

Control Sensor:                                       Internal
Temperature Range:                               Ambient to 650°C (1202°F)
Tolerance:                                               ±0.4°C (±0.72°F)
Stability:                                                  ±0.05°C (±0.09°F)
Measurement Zone:                               110 to 150 mm (4.33 to 5.91")
Block:                                                      28 mm (1.1"), diameter, 150 mm (5.9") depth
Display:                                                    2-line, 4-digit display, red/ green, unit °C/°F switchable
Display Range:                                       0 to 650°C  (32 to 1202°F)
Resolution:                                              0.01°C/0.02°F in ambient range to 99.99°C/ambient to 211.98°F else 0.1°C (0.18°F)
Dimensions:
Width:  150 mm (5.91")
Height:  330 + 70 mm (12.99 + 2.76")
Depth:  270 mm (10.63")
Weight:                                                  Approximately 7.5 kg (16.5 lb)
Power Supply:                                      100 to 240 Vac, ±10%, 50/60 Hz
Power Consumption:                            Approximately 1000 VA

Inserts for the TCL-3M165E Multi-Function Base (at least 1 Required)

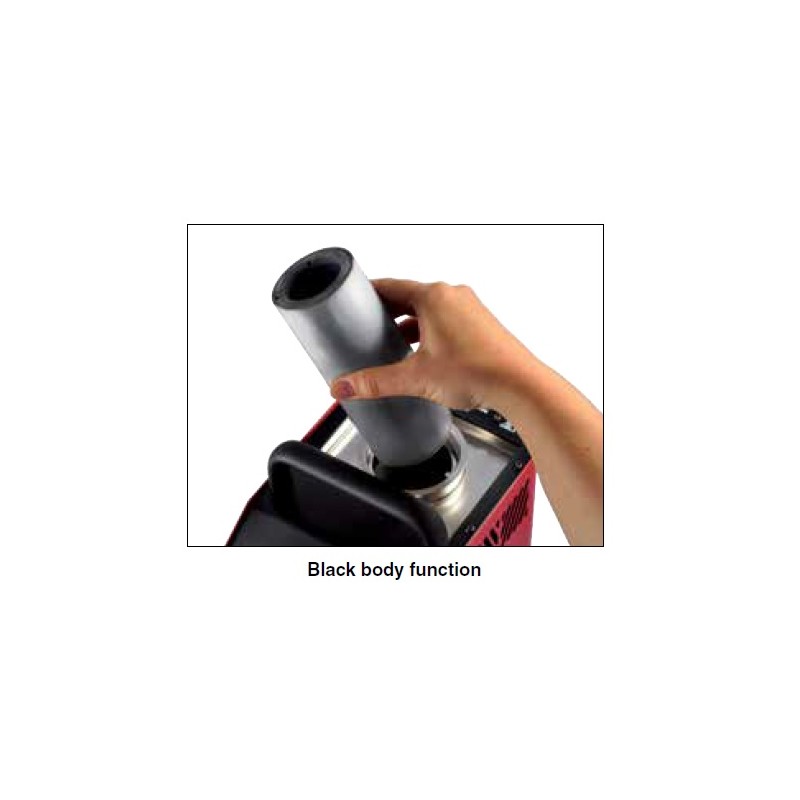

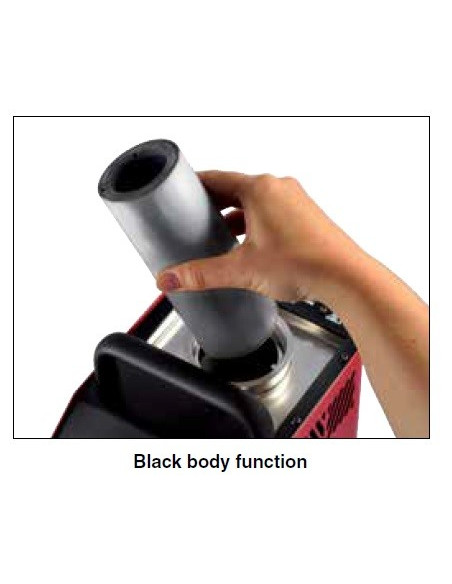

TCL-3M165E-I  Infrared calibration insert.

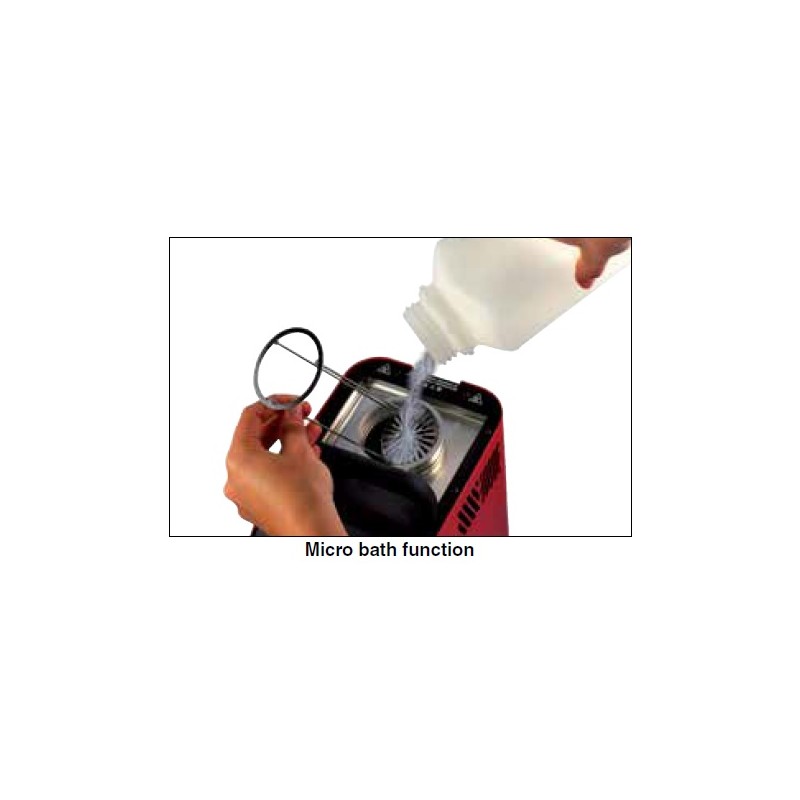

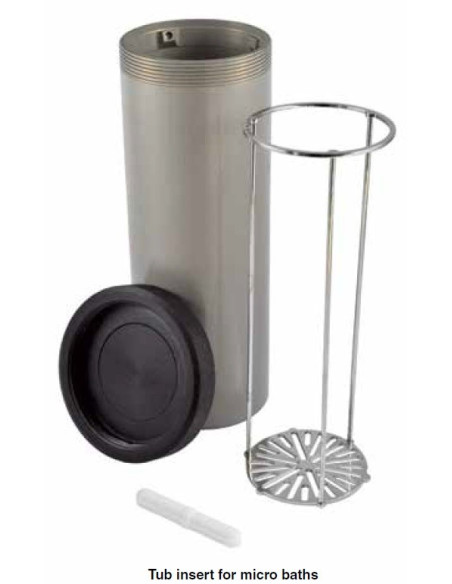

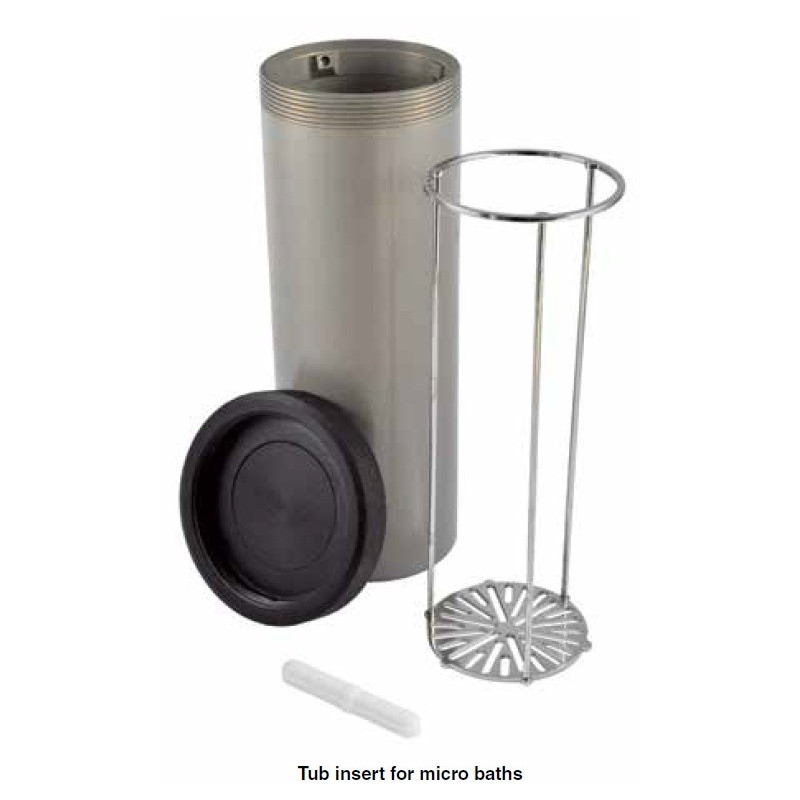

TCL-3M165E-B Micro-bath insert.

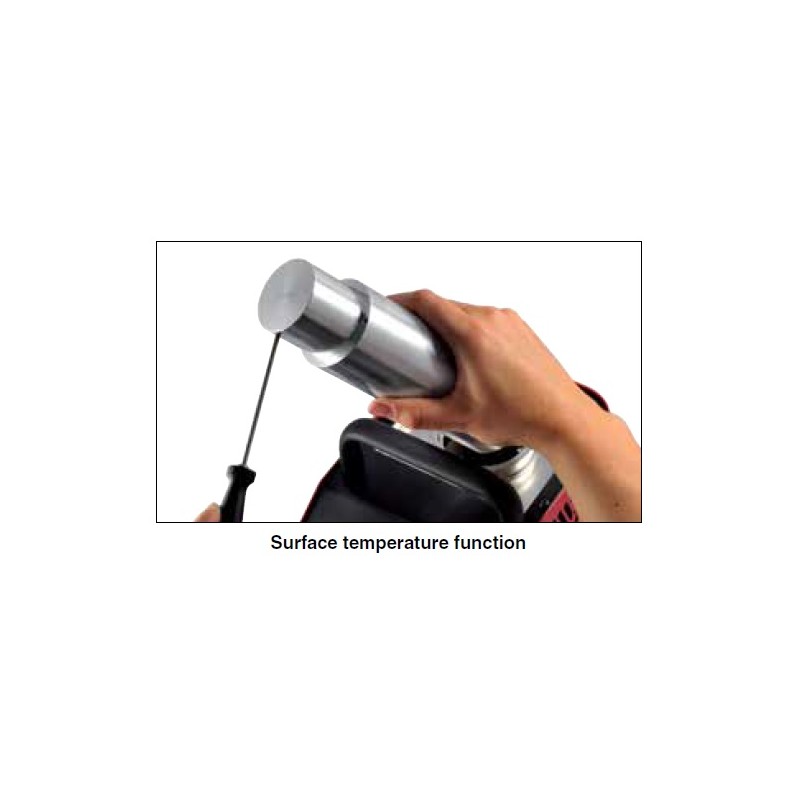

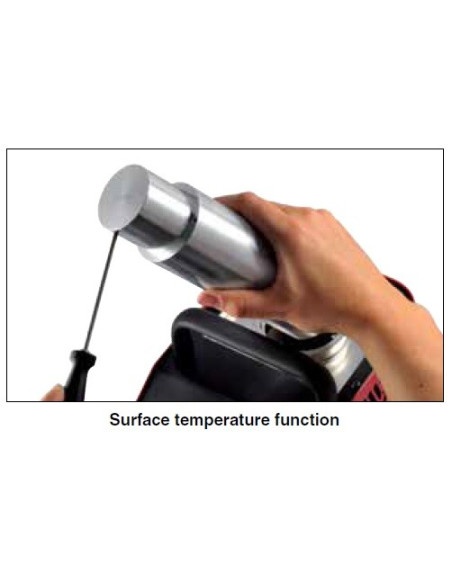

TCL-3M165E-S Surface temperature calibration insert.

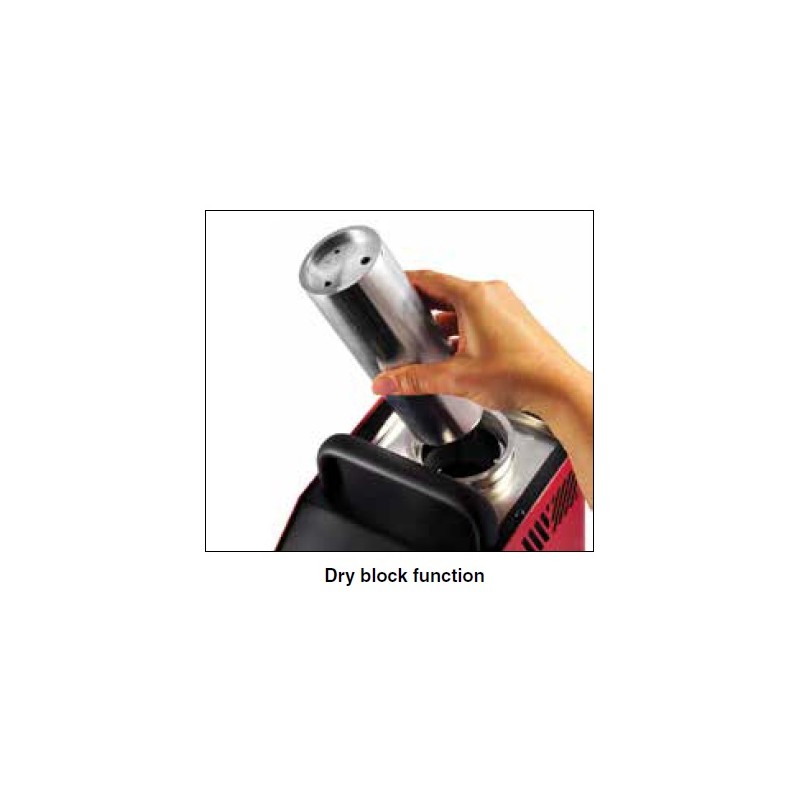

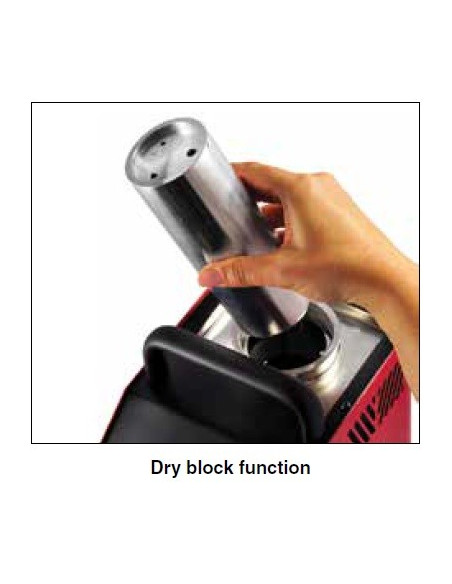

TCL-3M165E-D Dry block receptacle insert.
