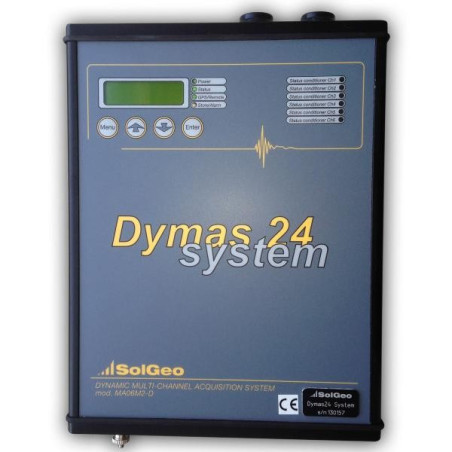

Dymas 24 Master V Portable Seismic Recorder
- Up to 6 channels
- Standard guidelines UNI 4150-3, DIN45669-1, UNI 9916
- 24 bit multichannel sampling
- 10Hz - 10Khz sample rate
- Dynamic &ge: 135dB
- Bandwidth DC - 4 kHz
- Continuous and/or triggered recording
- Built-in calibration function
- 64 Gb internal memory
- Seismometers and/or accelerometers connection
The Dymas 24 V Master is a multichannel portable seismic recorder for long term monitoring with stable configuration inside dams and structures.
Dymas 24 Seismic Recorder is used for both Microseismic & Vibrational studies.
The multichannel acquisition system allows upto 6 channels in a single compact metallic cabinet provided for fixing on wall or floor. It is equipped with an LCD display & keyboard membrane for status update & command function.
The system is configurable from 8 GB internal memory to 64 GB for long term monitoring.
The management software DYMASOFT, integrated with VIBROSOFT data processing software allows to build up efficient dynamic monitoring networks.
| Input Channels | From 1 to 6 sensor channel |
| Configuration | Standalone or multi-station network |
| Timing | Sampling and Internal RTC synchronized via GPS or remote control – all channels simultaneous sampling |
| Triggering Mode | TThreshold level and/or STA/LTA, HP filter, selectable for each channel |
| Recording Mode | Internal/external or continuous recording with SeedLink Protocol. Software Selectable pre/post-trigger length. Recording of pick values (min-Max), according to DIN 4150 part II, internal selectable from 10 to 100s |
| Data Storage | 2 Gb internal SD for 6 channel group (till to 64GB optional) or 512 GB with SSD |
| Diagnostics | Battery voltage, temperature, sensors test |
| Power Consumption | 5W |
| Communication | Ethernet TCP/IP - USB2.0 – RS232 (optional) |
| File formats | Solgeo EVE, MiniSEED, other on request |
| Support Software | Seiscomp3, Antelope, Earthworm and similar |
| 24 BIT MODULE | |
| Converter | Individual 24-bit Sigma/Delta per each channel, with DSP each 6 channels, integrated digital antialiasing filter |
| Input Level | 5Vpp, 20Vpp, differential Input |
| Sensor Calibration | Built-in, positive or negative edge |
| Sampling | Selectable from 10Hz to 8kHz |
| Bandwidth | DC – 4,000 Hz |
| Dynamic Range | > 135 dB@100Hz |
| Programmable Gain | 1-2-4-8-16-32-64-128 |
| Filter Anti Aliasing | Digital Filter FIR |
| Output Data Format | 32 bit signed in user selectable format |
| EXTERNAL INTERFACES | |
| GPS Antenna | GPS time synchronization, RS-422 interface |
| Power | 9VDC to18 VDC (adapter 120/240 V AC optional), automatic turn OFF when battery <10,2 V, turn ON >11,8V |
| Seismic Sensors | Seismometers, Accelerometers Force Balance, ICP, piezoeletrics, MEMS, Geophones. |
| Other Sensors (Optional) | Extensometer, Termocouples, Hydrophones, Piezometers |
| Other Interfaces | USB 2.0 / LAN / RS-232 / Modem ADSL-FO-GSM-GPR-3G / WiFi |
| PHYSICAL CHARACTERISTICS | |
| Container Features | Metallic cabinet default protection IP65, higher with additional cabinet |
| Working Temperature | -20 °C - +70 °C |
| Dimensions (LxWxH) | 300 x 210 x 70 mm |
| Weight | 2,1 Kg |
| Umidity | 0-100% non condensed |
