IMKO TRIME®-Ex GWs Grain moisture and temperature meter (GR-Probe & Transformer)

The special thing about TRIME® technology is that the measurement field completely penetrates the sample volume of approx. 2dm³. Therefore, it not only determines data about near-surface moisture like reflective infrared measuring technology but also records the water content of the whole unground grain. Complex and error-prone bypass constructions are not required with TRIME® systems. TRIME® technology also has a very flexible probe design, making it suitable for a wide variety of tasks.

Applications and advantages of TRIME® technology

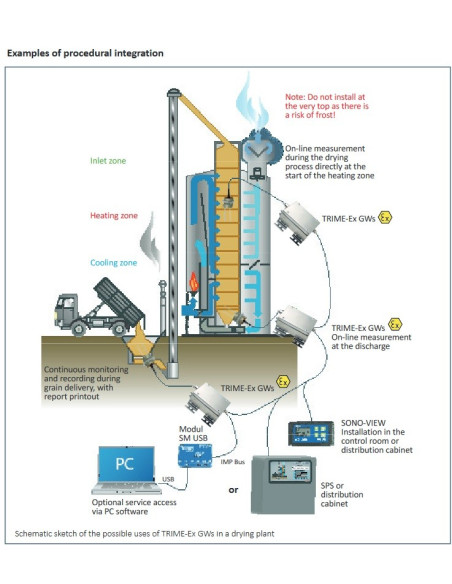

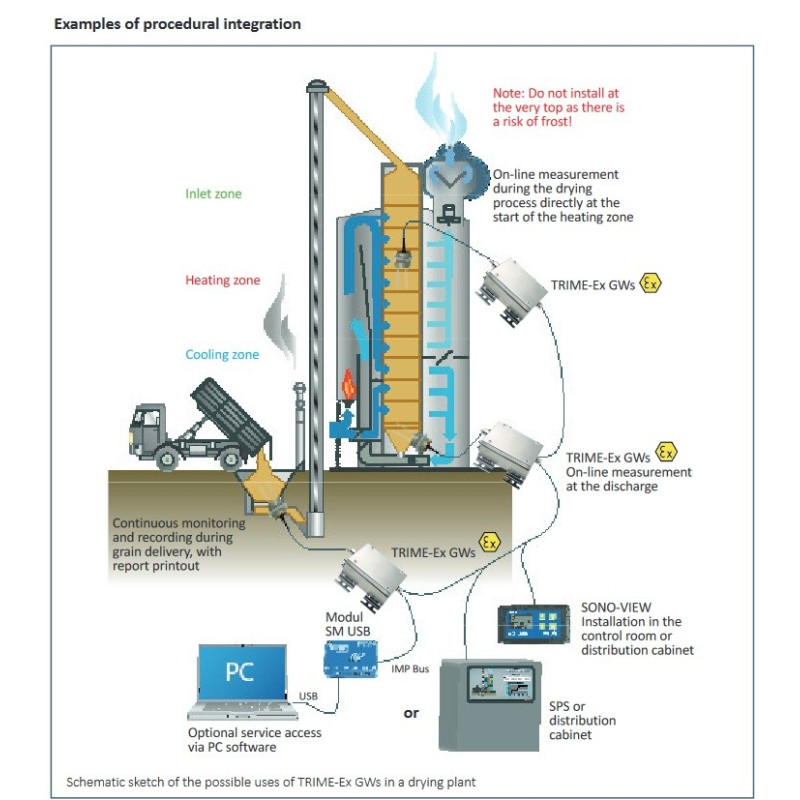

• Grain and product moisture measurement directly in the dryer
• Inline measurement in the process at up to 130°C
• Reduced working hours and greater process transparency due to inline measurement
• Cost savings as time-consuming post-treatments in the event of over- or under-drying are not required
• Measuring ranges up to 70% humidity
• Resolutions in the dry range up to 0.05%
• Different probes depending on the application and requirements
• Problem-free system connection to any common programmable logic controller (PLC)
• Additional recording of product temperature by temperature sensors
• Optimized work processes with cost savings
• Probe body made of temperature-stable special material PEEK
• Robust probe designs for long-term use under extreme environmental conditions
• Measurement independent of the type of grain, temperature of the material being measured, and ion conductivity
