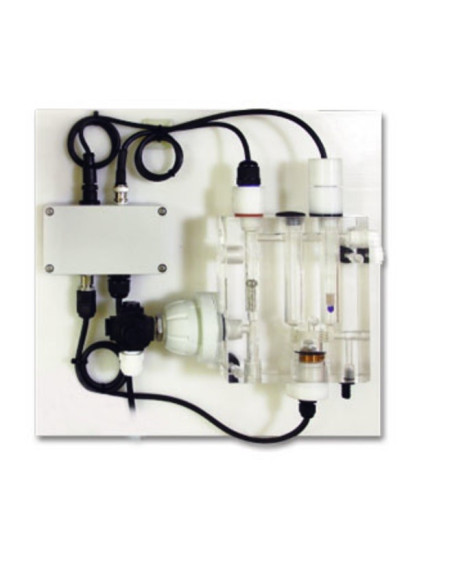

SMR03 Free Chlorine Analyzer for Water Quality

The free chlorine meter housing in a robust IP68 proof enclosure, 1000 N tensile strength cable, up to 1.2 km digital data transmission, the Chlorine meter is ideally used in water/wastewater industry.

The amperometric electrode measurement cell consists of two combination probes that uses a platinum cathode and a copper anode electrode to amperometrically measure free residual chlorine, There is no need for chemical reagents, and the glass balls inside rotates continuously to remove the hydrogen gas from the electrodes. An electrochemical reaction occurs within these electrodes, based on the available chlorine concentration, generating a propotional current. The whole unit includes flow indicator, free chlorine electrode and mounting plate. Optional pH and temperature sensors for compensation are available.

■ Robust IP68 Water Submersible Enclosure, Solution Without Cabinet
■ 1 sec On-line Realtime Measurement
■ 0.05 W Ultra Low Power Consumption, Ideal for Outdoor Applications
■ Temperature Compensation
■ High Reliability, Drift Free
■ Lightening and Surge Protection for Power and RS485 Communication
■ 1.2 Km RS485 Digital Communication, Minimize Cabling and Engineering Cost
■ Software Configuration Calibration and Data Monitoring
■ Standard Modbus RTU Protocol, Direct Connected with PLC, HMI, Eliminate I/O Module Cost
■ Auto Cleaning, Almost No Maintenance
■ No Reagent and Membrane, Almost No Consumable
■ Not Affected by Pressure Fluctuation(1~15kg f/cm2)
■ pH Compensation (pH 6-8)
■ Integration Additional Sensors such as Conductivity, TDS or ORP
■ No Inlet Water Alarm Output

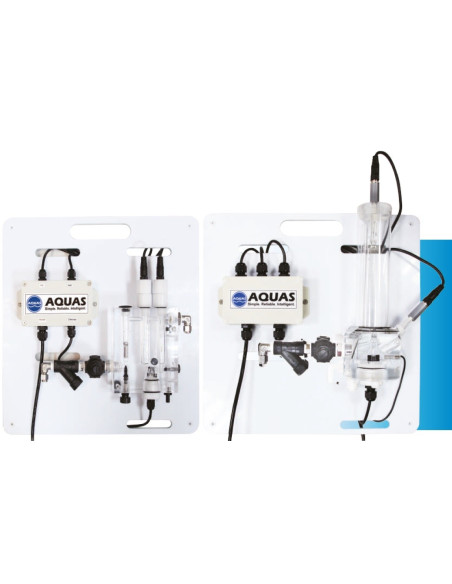

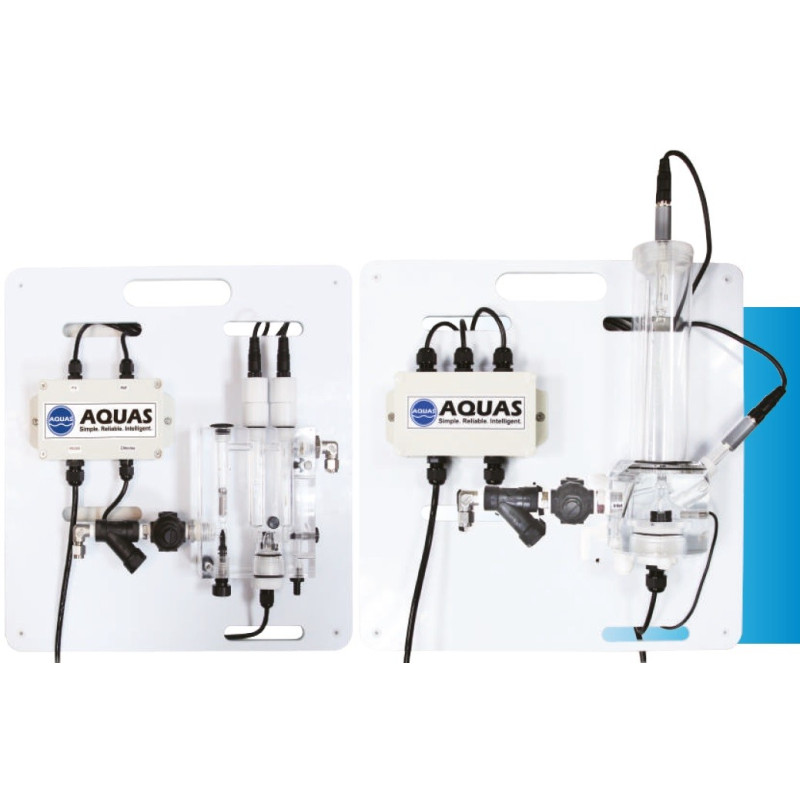

Type	SMR03-1: Free Chlorine Analyzer (without pH sensor compensation) SMR03-2: Free Chlorine and pH Analyzer (with pH sensor compensation)
Measurement range	0~5 ppm; 0~20 ppm (optional)
Accuracy	0.01 ppm (0~0.5 ppm); 0.02 ppm (0.5~2 ppm); 0.1 ppm (2~5 ppm)
Resolution	0.01 mg/L
Repeatability	±1% FS
Temperature compensation	0~85 °C
Automatic pH compensation	6-9 pH (SMR03-2)
First setup time	4 hours
Process flow rate	Min. 0.8 l/min
Auto cleaning	rotating glass ball
Electrode material	platinum (cathode), copper (anode)
Operating pressure	0~20 Kgf/cm2
Operating temperature	0~85 °C
Response time	3 secs
Protection	IP68
Temperature Sensor	Pt100
Temperature measurement range	0~65 °C
Temperature accuracy	±0.5 °C
Housing	Acrylic
pH Sensor
Measurement range	0 ~14 pH
Accuracy	0.01 pH
Resolution	0.01 pH
Repeatability	±1% FS
Operating pressure	Max. 10 Kgf/cm2 (optional)
Operating temperature	0 ~ 85 °C
Process flow rate	0.1l /min
Response time	1 sec
Dimension	SMR03-1: 152(W)x168(H)x118(D) mm SMR03-2: 215(W)x300(H)x155(D) mm
Weight	SMR03-1 analyzer: approc. 300g SMR03-2 analyzer: approc. 500g ; cable: 80 g/m

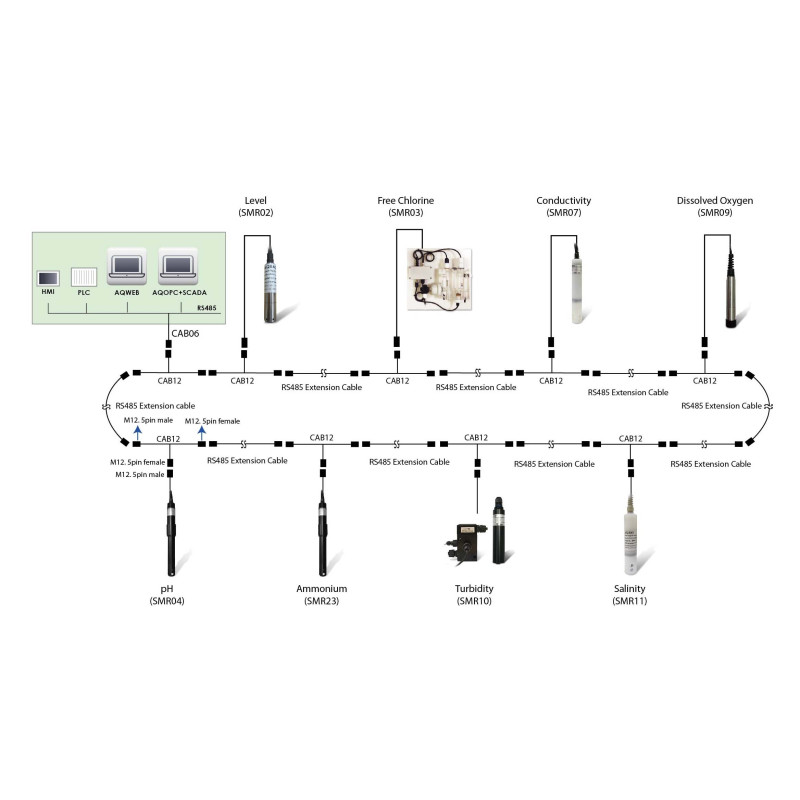

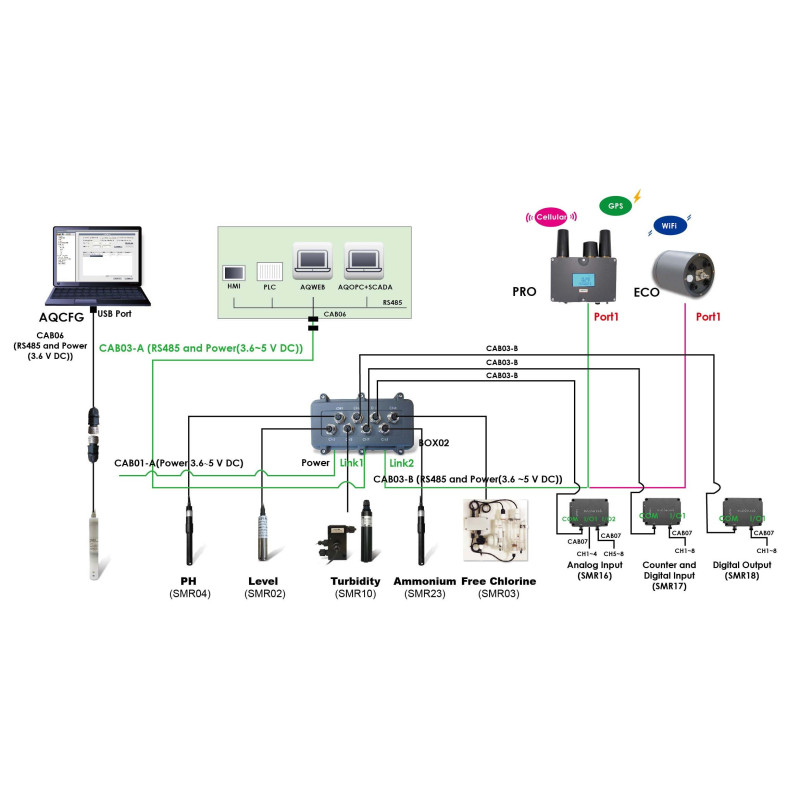

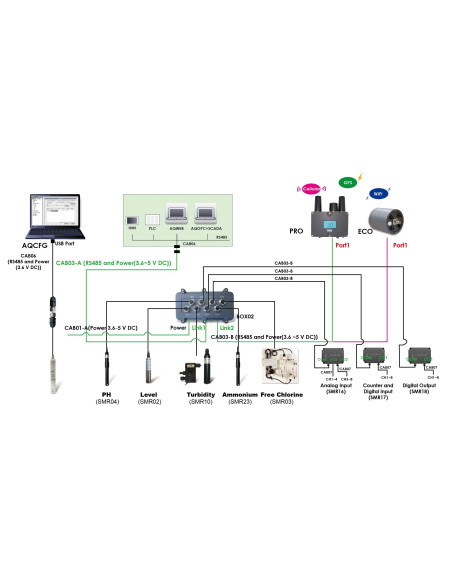

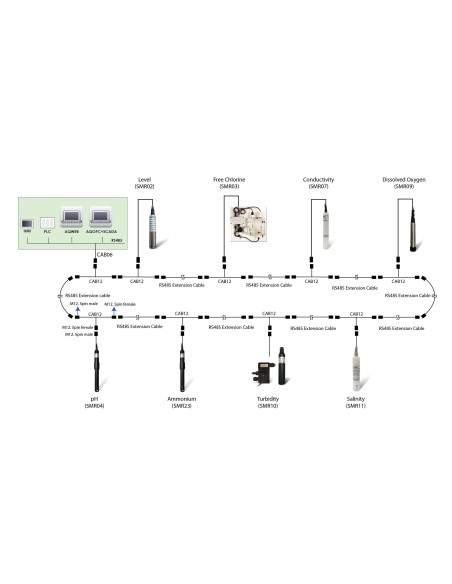

Typical Application
