SONO-SILO, Advanced Silo Sensor

Use SONO-SILO-Standard to measure industry moisture and to derive quality parameters.

Applications and benefits:

• The additionally measured radar-based conductivity up to 12dS/m allows conclusions on other parameters of the material recipe.
• Probe head and electronics are modular, in case of a worn probe head it can be exchanged easily, the electronics remain untouched.
• When a probe head is affected by abrasion an automatic correction of the measuring value occurs – without recalibration.
• The intelligent preprocessing of the measuring values with floating averaging, adjustable filter and up to 15 calibration curves happens directly in the probe.
• Two variably adjustable analog outputs 0 (4) to 20mA enable a trouble-free connection to any control system.

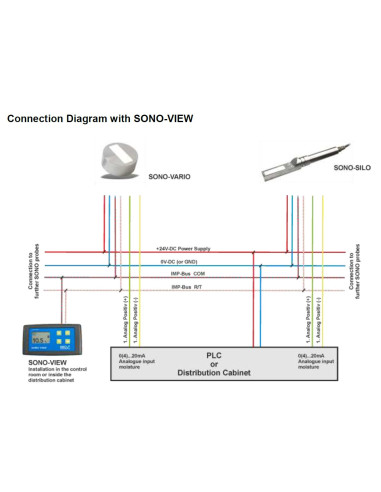

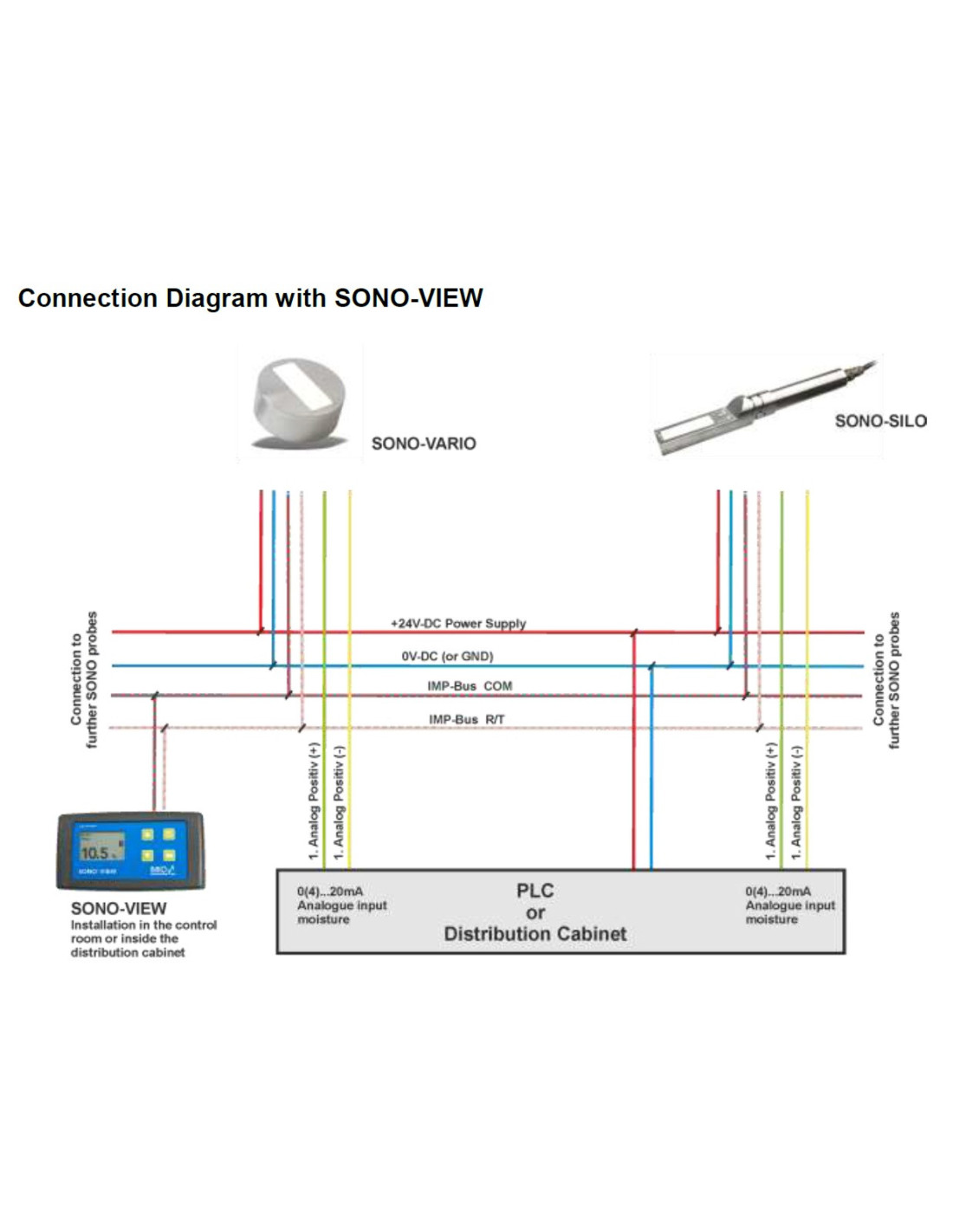

• An RS485 interface connects the operation of the probe.
• It already contains a data bus protocol for connecting several SONO probes.
• Via optional external modules, you may connect the probe to industry buses like Profibus, Ethernet and similar.
• TRIME technology guarantees high reliability even with steam or changing particle sizes of sand and grain.

Key Features:

Advanced TRIME Technology: Ensures accurate and reliable moisture measurements in a wide range of materials.
High Accuracy and Reliability: Designed to maintain optimal performance in industrial and agricultural environments.
Robust Construction: High quality materials for long life and resistance to harsh conditions.

SONO-SILO Standard:

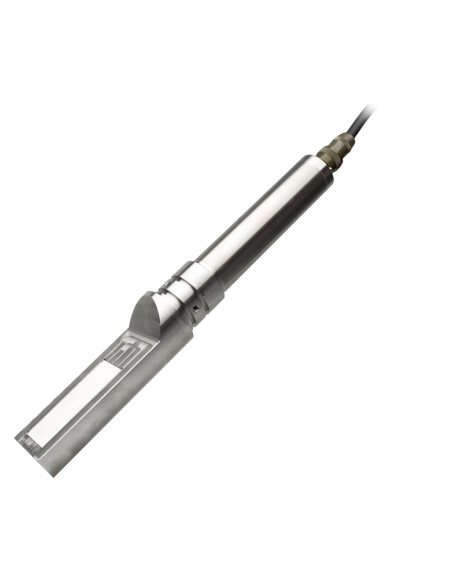

• Compact Design: Rod sensor with a diameter of 55 mm, ideal for installation under silo gates and other tight spaces.
• Durable Construction: Sensor surface made of high-grade steel (V2A) and aluminium oxide ceramic for reliable performance.
• Replaceable Sensor Head: Easy maintenance with a replaceable sensor-head design.
• Temperature Range: Operates between 0 to 70°C.
• Dimensions: 55 mm x 330 mm.

SONO-SILO Heavy Duty HC:

• Robust and Compact: Rod sensor with a diameter of 55 mm, suitable for installation under silo gates and in confined areas.
• High-Strength Materials: Features a sensor surface made of high-grade steel (V2A) and silicon nitride ceramic for enhanced durability.
• Replaceable Sensor Head: Designed for easy replacement to extend sensor life.
• Temperature Range: Operates within a range of 0 to 70°C.
• Dimensions: 55 mm x 330 mm.

Applications:

Ideal for a variety of industrial and agricultural applications, SONO-SILO sensors are perfect for monitoring moisture in storage and material handling processes, helping to optimize quality and operational efficiency.
