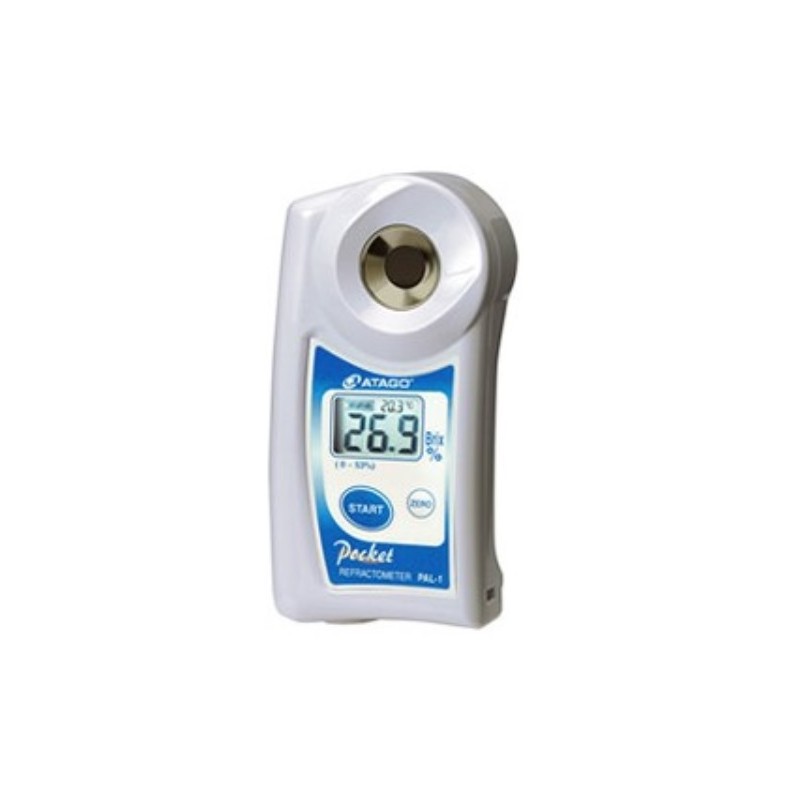

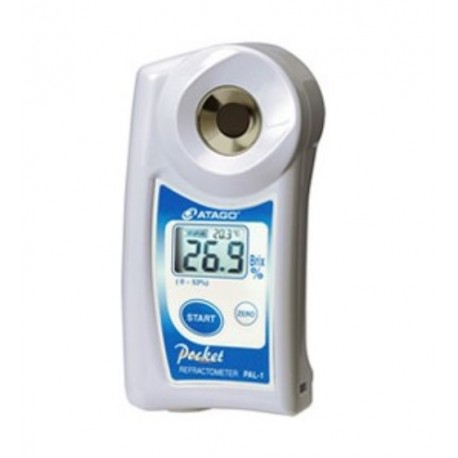

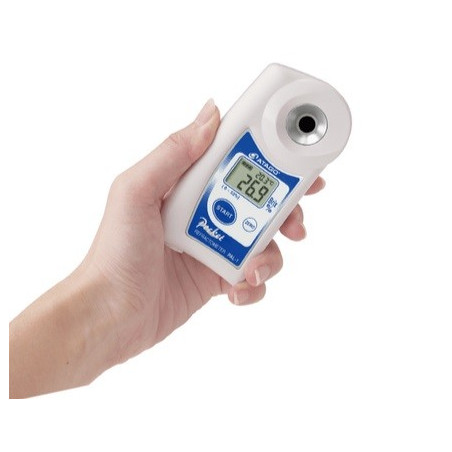

Atago PAL-1 Pocket Digital Refractometer

► Main features:
- IP65 protection.
- Just two or three drops as a sample.

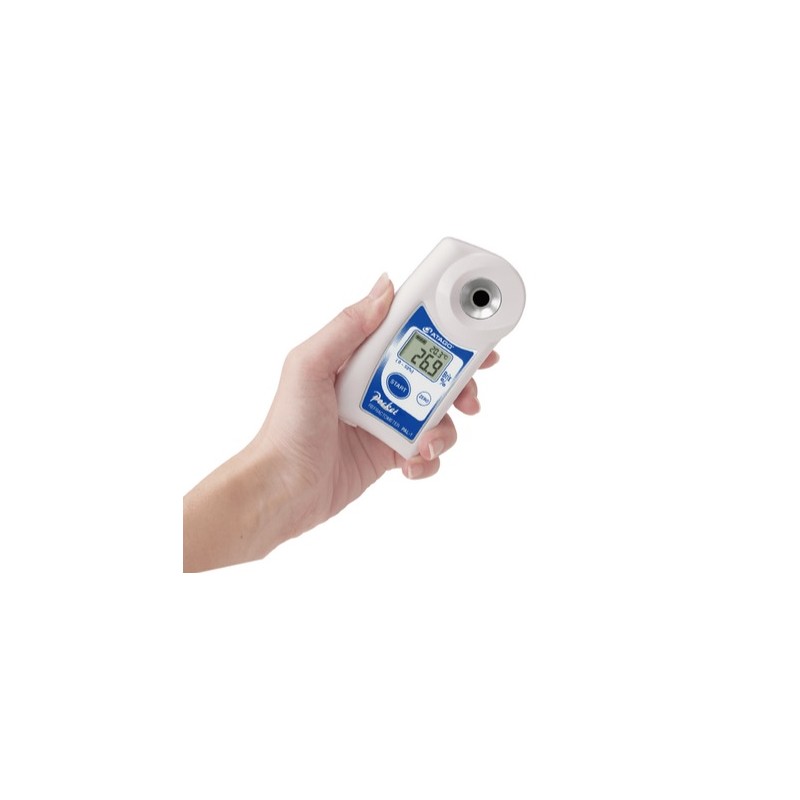

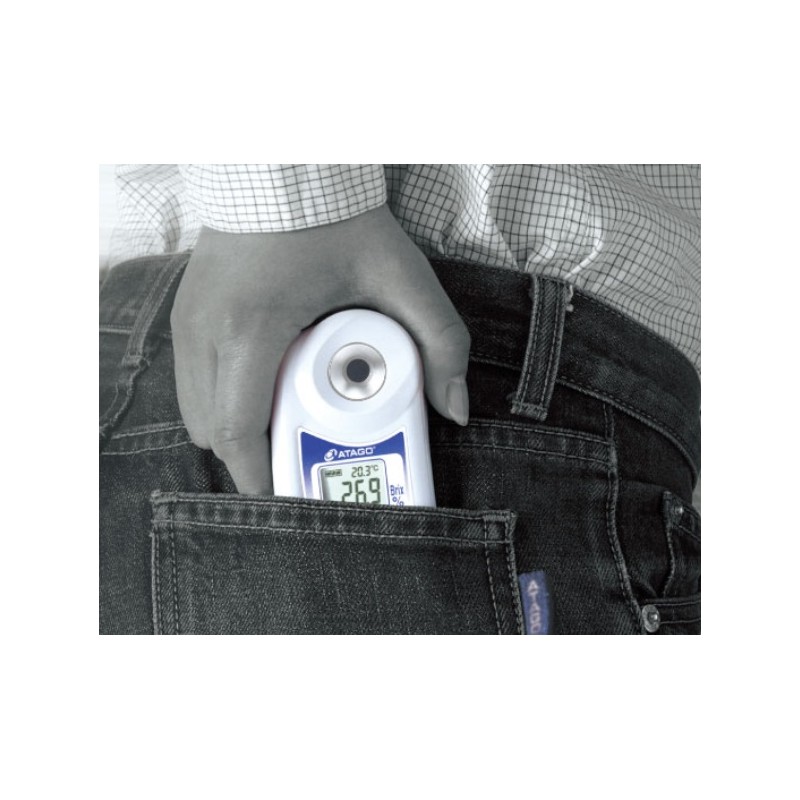

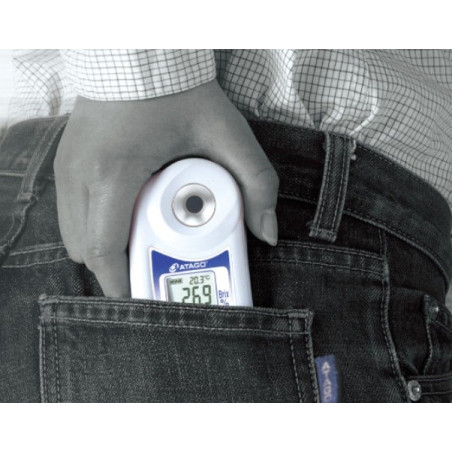

- Light and compact.
- With Automatic Temperature Compensation (ATC).
- Digital reading.

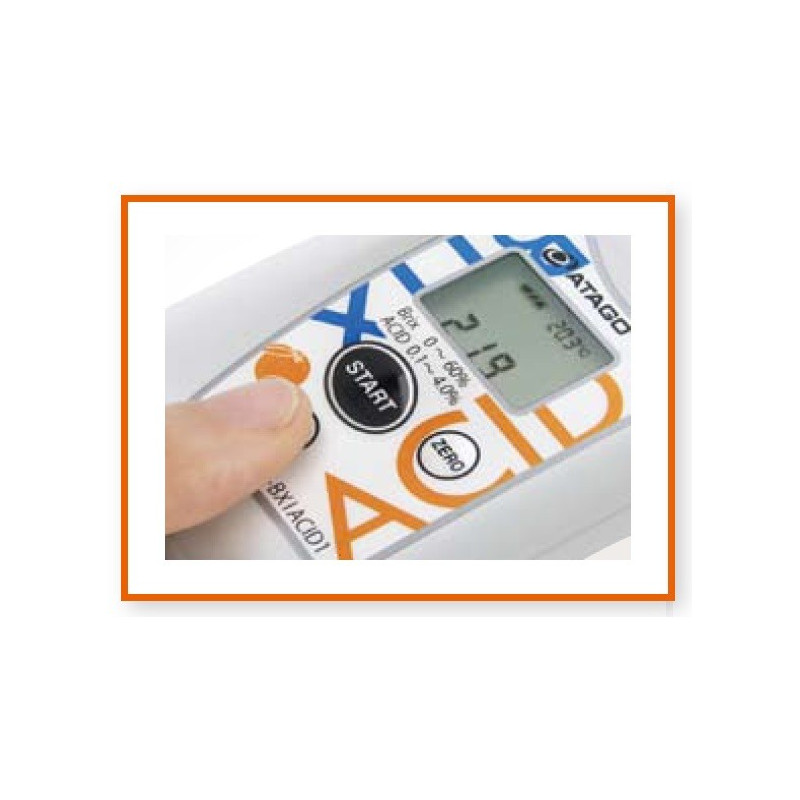

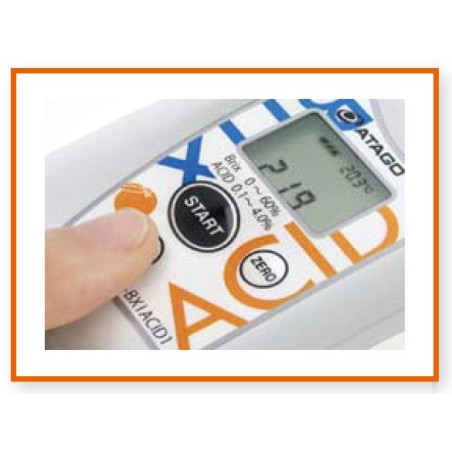

- Analysis speed. Simply pour a drop onto the prism surface and press the START button. The value will be displayed in just 3 seconds.
- Can be used with samples at high temperatures.
- Only water is needed to calibrate the refractometer.

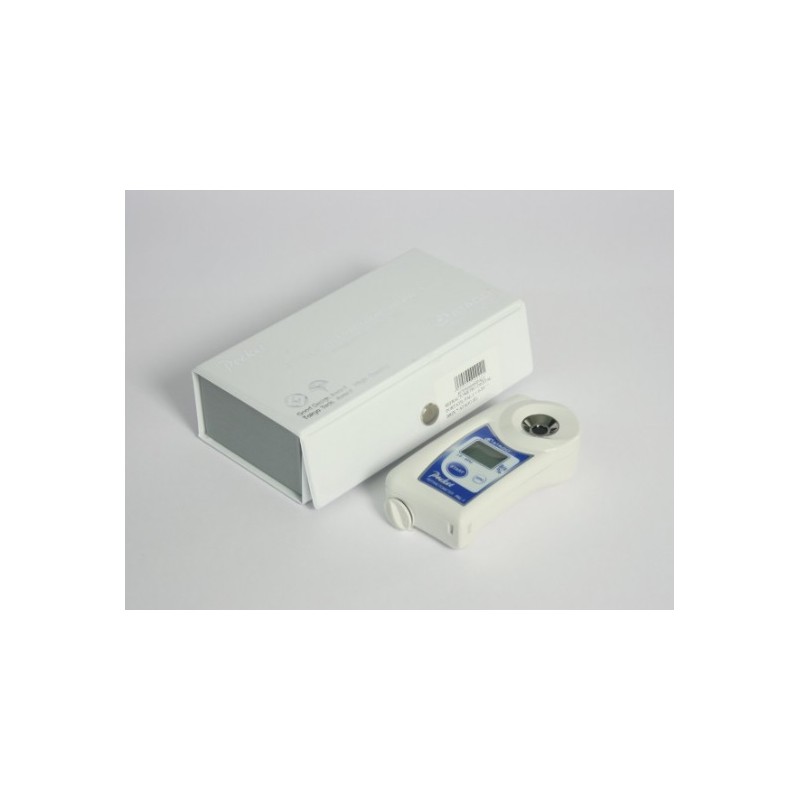

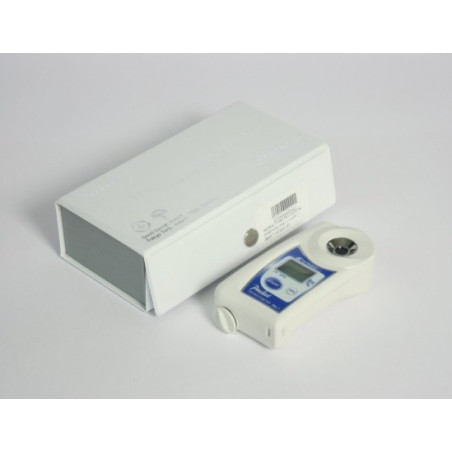

- Storage case included.

► Measurement Range: 0.0 to 53.0% Brix.
► Resolution: 0.1% Brix.
► Measurement accuracy: ±0.2% Brix.

• PAL-CASE : RE-39409

• STRAP : RE-39410

• JORDAN for PAL silicone case : RE-39414

• EXTRACTOR : RE-29401

• 10% Sucrose solution (±0.03%) : RE-110010

• 20% Sucrose solution (±0.03%) : RE-110020

• 30% Sucrose solution (±0.03%) : RE-110030

• 40% Sucrose solution (±0.04%) : RE-110040

• 50% Sucrose solution (±0.05%) : RE-110050

• Battery case : RE-38163

• AC Battery Charger : RE-34802

* Calibration Certificate: Contact us for more details.

PAL-1
With a wide range (from 0.0 to 53.0% Brix), the PAL-1 works perfectly measuring almost any fruit juice, food, beverage, soup, sauce, ketchup, or low sugar jam.

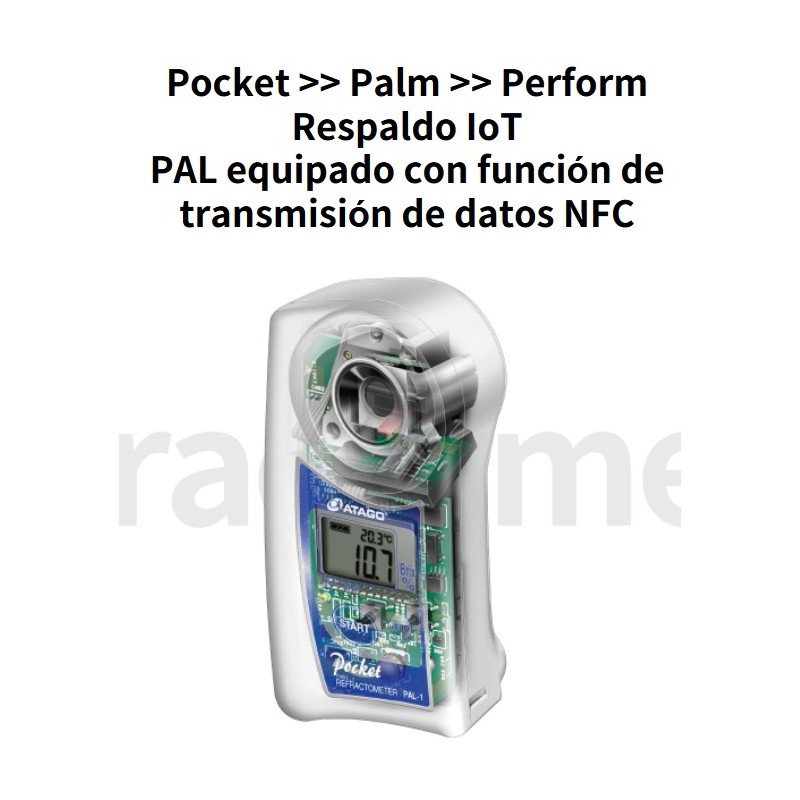

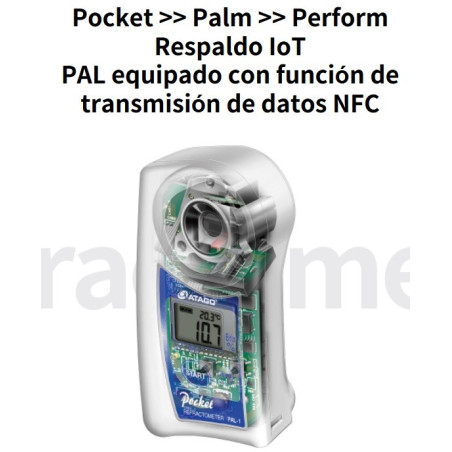

With its Near Field Communication (NFC) data transmission feature, data history can be accessed by bringing PAL-NFC to any Android device or PC connected to the NFC-USB Reader.

PAL-1 BLT/i
Wireless data logging with the PAL-1 is now available for iPhone users. The PAL-1 BLT/i stores and transmits date, time, and Brix data to iPhone via Bluetooth and the ATAGO Logger app for iPhone is free.

PAL-1 BLT/A+W
The ever popular PAL-1 is now available with wireless data logging. The PAL-1 BLT/A+W stores up to 100 records of date, time and Brix and transmits the data not only to PC, but also to smartphones and tablets (Android only*) via Bluetooth. Import data directly into Excel with the included data transfer software, ATAGO Logger.
Download the free app on your Android devices.
