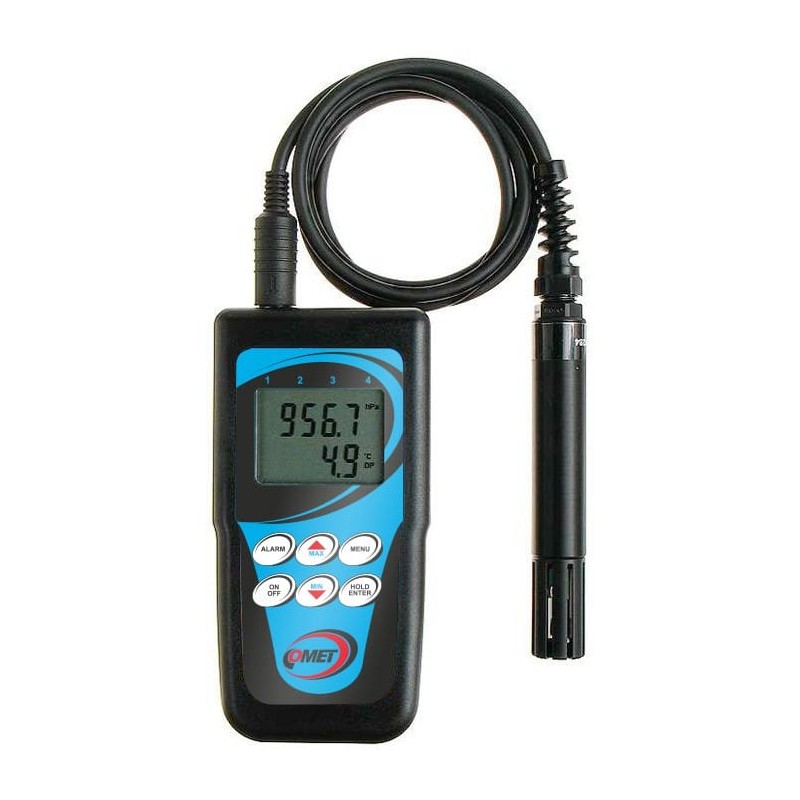

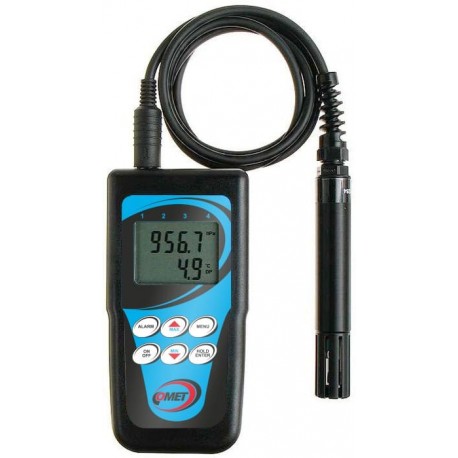

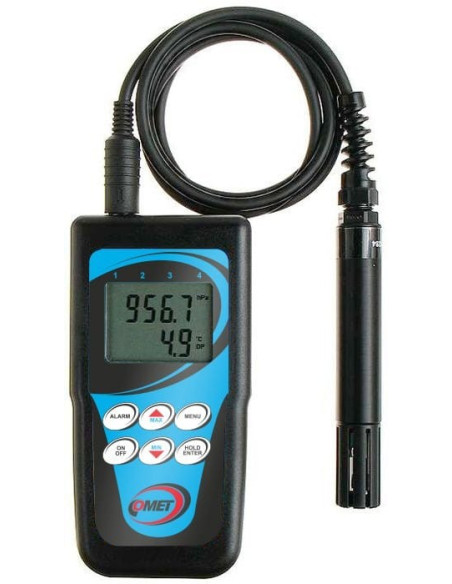

Comet C3121P Thermo-hygrometer for compressed air measurement (-30 to +105°C) (5 to 95%RH)

Reference C3121P

Condition: New

Thermo-hygrometer (-30 to +105°C) (5 to 95%RH)

Thermometer, hygrometer is designed for direct measurement of temperature, relative humidity for compressed air up to 25 bars with 1m cable. Audio and optical alarm of measured values. Memory of minimum and maximum measured values. Function Hold - manual storing of actual values for later displaying.

Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, built-in sensors.

Warranty: 3 years

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Optional Accesories
Data sheet

Environment of Use	Indoor
With Display	LCD
Type of Instrument	Thermo-Hygrometer
The instrument measures:	Temp. & Relative Hum.

Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, external temperature-humidity probe with 1meter cable. Cable lengths 2 and 4 meters available optionally.

Traceable calibration certificate
Instruction manual
Connector for external ac/dc adapter

Measured Value	Relative Humidity + Temperature
Construction Type	Compressed Air Humidity Up To 2.5MPa
Temperature Measuring Range	-30 to +105°C
Data Logging Function	No
Operating temperature range	-10 to +60°C
Temperature sensor	RTD Ni1000/6180ppm
Accuracy of temperature measurement with built-in sensor	±0.4°C
Accuracy of air humidity measurement	±2.5%RH from 5 to 95% at 23°C, resolution 0.1%
Dew point temperature range	-60 to +80 °C
Accuracy of dew point temperature (for more details see instruction manual)	±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C
Accuracy of dew point temperature	±2.0°C for dew point temperature 0°C at ambient temperature +25°C
Accuracy of dew point temperature	±3.0°C for dew point temperature -10°C at ambient temperature +25°C
Accuracy of dew point temperature	±6.0°C for dew point temperature -20°C at ambient temperature +25°C
Power	battery 9V
Battery life	4 months typically
Dimensions	141 x 71 x 27 mm, probe length 150mm, probe diameter 18mm
IP protection	IP20 instrument, IP40 T+RH probe
Mechanical connection of the probe	G1/2 with O-Ring
Length of the probe cable	1m, 2m or 4m optionally
Weight including battery without probe	approximately 150 g
Warranty	2 years

Adaptador ac / dc 230Vac a 12Vdc / 0.5A código: A1515	Batería recargable de NiMH. 9 V / 200 mAh código: A3400	Protección de sensor de plástico con filtro de acero inoxidable (negro) código: F5200B

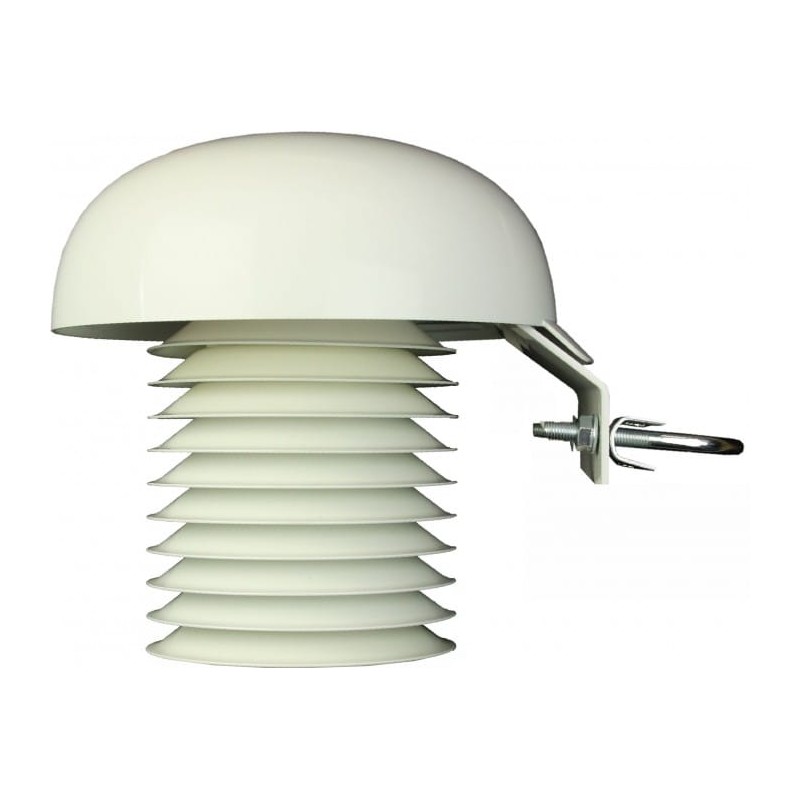

Protección del sensor de PTFE, blanco código: F5300	Escudo de radiación de placas múltiples código: F8000	Estándar de humedad 10% RH, juego de 5 piezas código: HM023
Estándar de humedad 80% RH, juego de 5 piezas código: HM024	Recipiente para ajuste y calibración de humedad. código: MD046	PP4 Brida circular plana código: PP4
PP90 Brida de acero inoxidable en ángulo recto código: PP90	Cámara de flujo para medición de aire comprimido hasta 25 bares código: SH-PP
