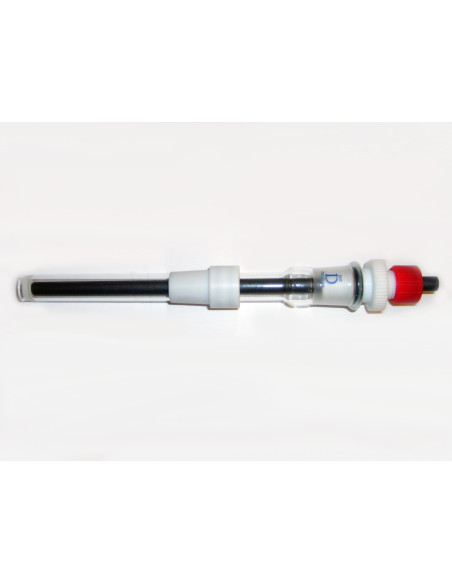

Standard Graphite Counter Electrode Kit AFCTR3B

Reference AFCTR3B

Manufacturer: Pine Research

Condition: New

It includes a 150 mm long isolation tube and adapter to fit 14/20 port 6.4 mm OD graphite rod, 184.2 mm long.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
REPLACEMENT PARTS
Data sheet

Electrochemistry	Electrodes

The Standard Graphite Counter Electrode AFCTR3B consists of a 1/4″ (6.4 mm) OD graphite rod that fits into a 14/20 PTFE adapter.
A fritted glass tube isolates the counter electrode from the main test solution.
The glass tube is equipped with a PTFE adapter suitable for mounting the tube in a 14/20 port on our standard electrochemical cells. Alternatively, the counter electrode may be removed from the glass tube and mounted directly on the electrochemical cell.

Replacement Parts (Request Quote)

MPGRR250: Graphite Rod 0.250" OD x 12" long

RRPG097: Fritted Glass Tube, 12 mm OD, 14/20 port at top, medium frit at bottom

RRPG036K3: PTFE Mount with 1/4" ID red cap slides onto support Rod, fits into a 14/20 port.

ACEP1420R12: PTFE Mount for Fritted Tube slides around fritted tube, fits into a 14/20 port.
