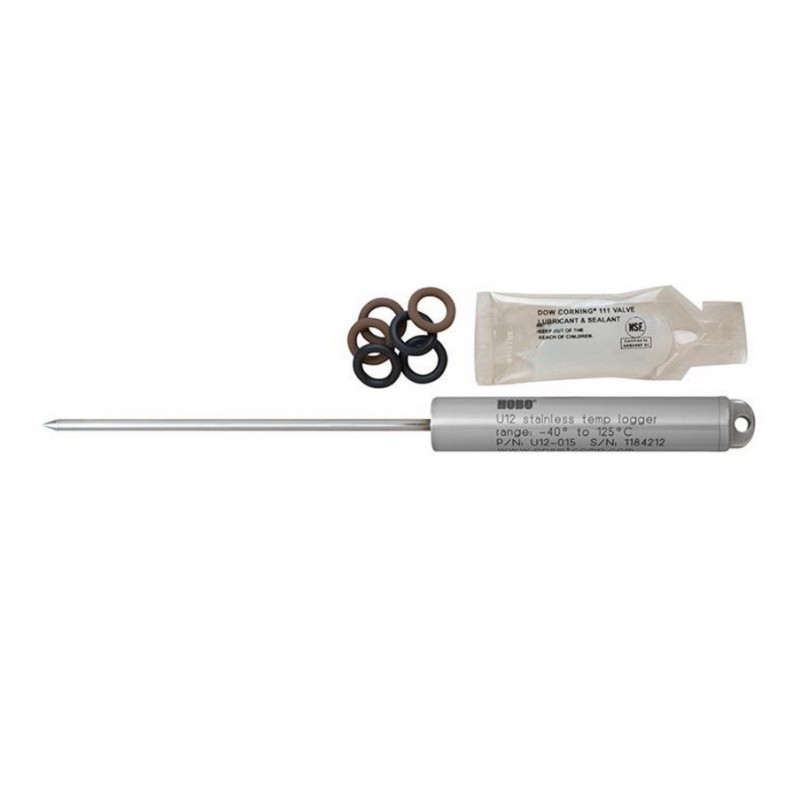

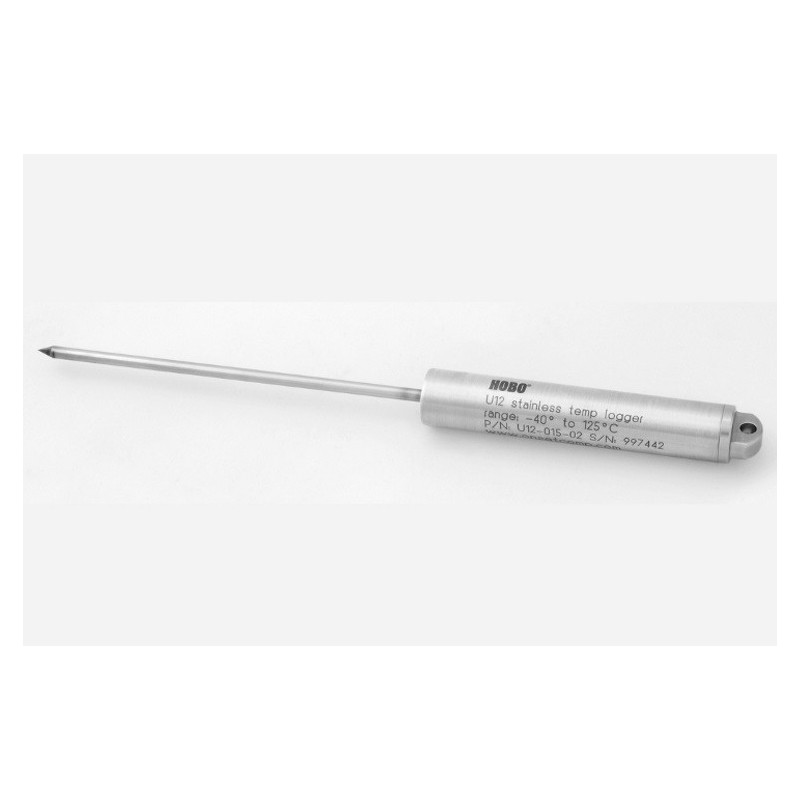

U12-015-02 Data Logger Temp. Inox. -40ºC +125ºC

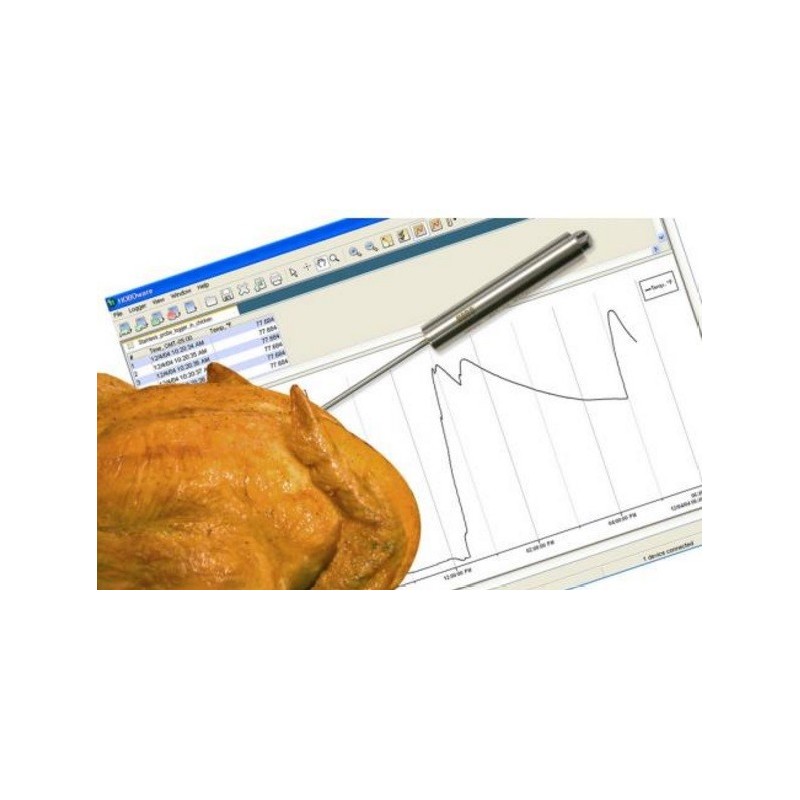

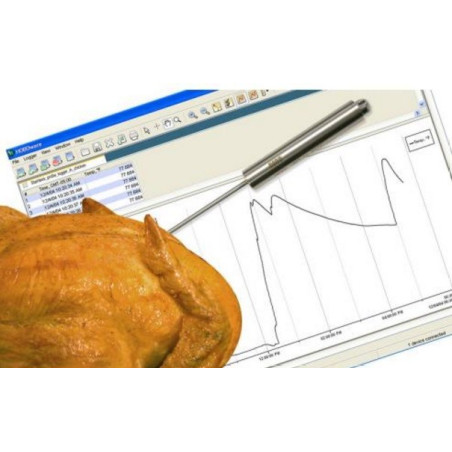

The HOBO Data Logger U12-015-02 Stainless 5-inch Probe Temperature Data Logger is ideal for monitoring internal temperature of foods or any application where fast response is critical.

Features:

• Food-grade 316L stainless Temperature data loggers
• High-accuracy, extended temperature range
• Suitable for high pressure applications to 2200psi
• Fast readout via direct USB interface

Onset Hobo Data Loggers

Onset Computer Corporation

Measurement range: -40° to 125°C (-40° to 257°F)

Accuracy: ± 0.22°C at 25°C (± 0.4°F at 77°F), see Plot A

Resolution: 0.025°C at 25°C (0.045°F at 77°F), see Plot A

Drift: 0.05°C/year + 0.1°C/1000 hrs above 100°C (0.09°F/year + 0.2°F/1000 hrs above 212°F)

Response time in 1 m/s (2.2 mph) airflow:
U12-015: < 10 minutes, typical to 90%
U12-015-02: 2.25 minutes, typical to 90%

Response time in water:
U12-015: < 3.5 minutes, typical to 90%
U12-015-02: 20 seconds, typical to 90%

Time accuracy: ± 2 minute per month at 25°C (77°F), see Plot B

Operating environment: Air, water, steam, 0 to 100% RH

Operating temperature:
Logging: -40° to 125°C (-40° to 257°F)
Launch/readout: 0° to 50°C (32° to 122°F), per USB specification

Battery: life 3 year typical use, factory replaceable

Memory: 64K bytes (43,000 12-bit measurements)

Construction: 316L stainless steel with O-ring seal (food grade)

Weight:
U12-015: 72 g (2.5 oz)
U12-015-02: 82 g (2.9 oz)

Logger dimensions: 17.5 x 101.6 mm (0.69 x 4.00 inches)

Probe dimensions (U12-015-02 only): 4 x 124 mm (0.16 x 4.90 inches)

Pressure/depth rating: 2200 psi (1500 m/4900 ft) maximum

Vibration rating: Navy spec: NAVMAT P-9492 (non-probe model only)

NIST certificate: Available for additional charge; temperature range -30° to 120°C (-22° to 248°F)
