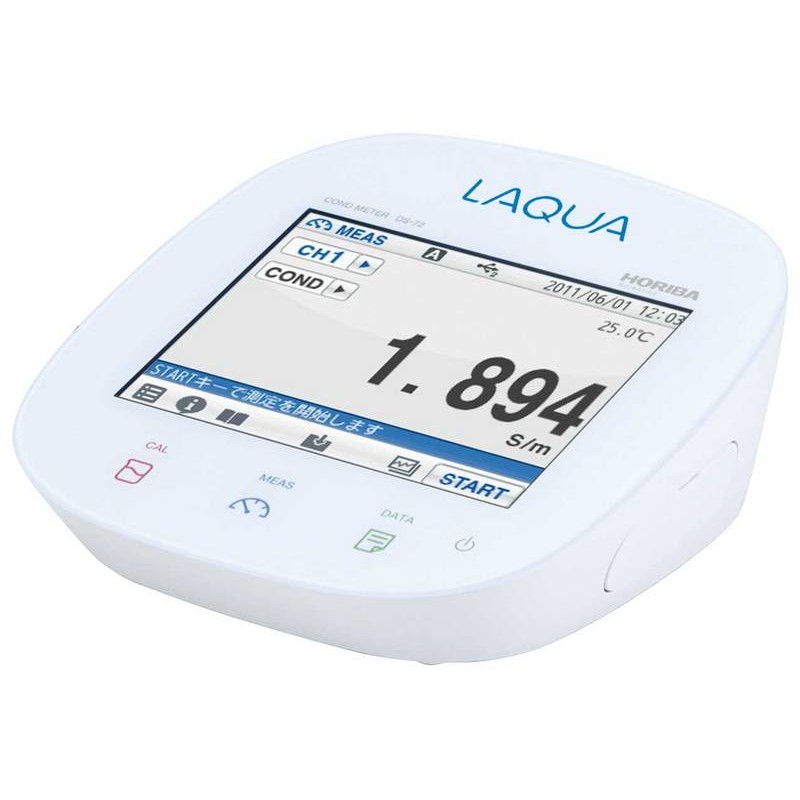

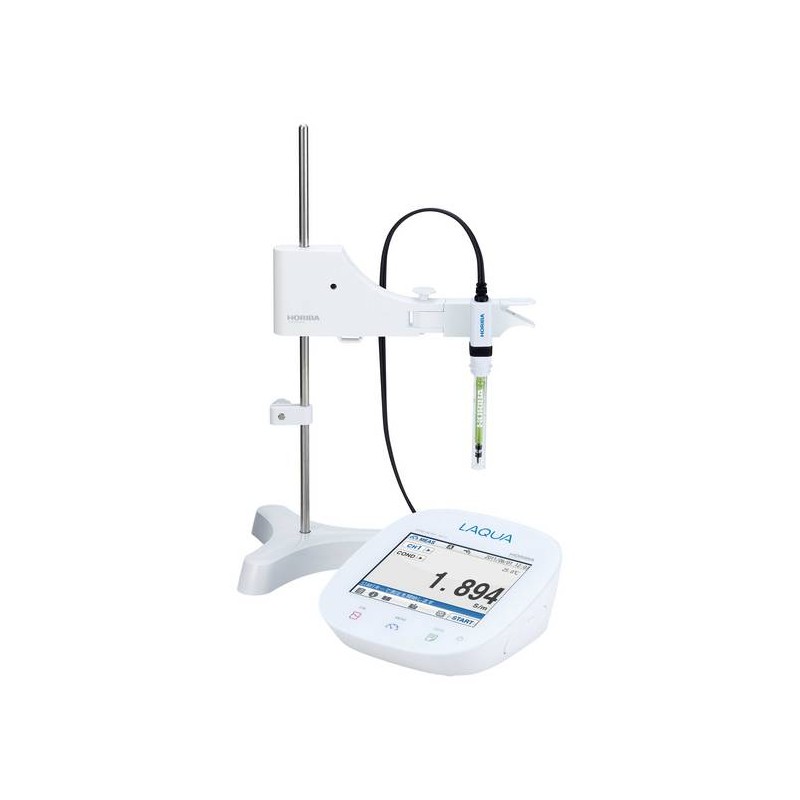

DS-72G LAQUA Colour Touchscreen Benchtop Water Quality Meter
DS-72G (3000347600)
New

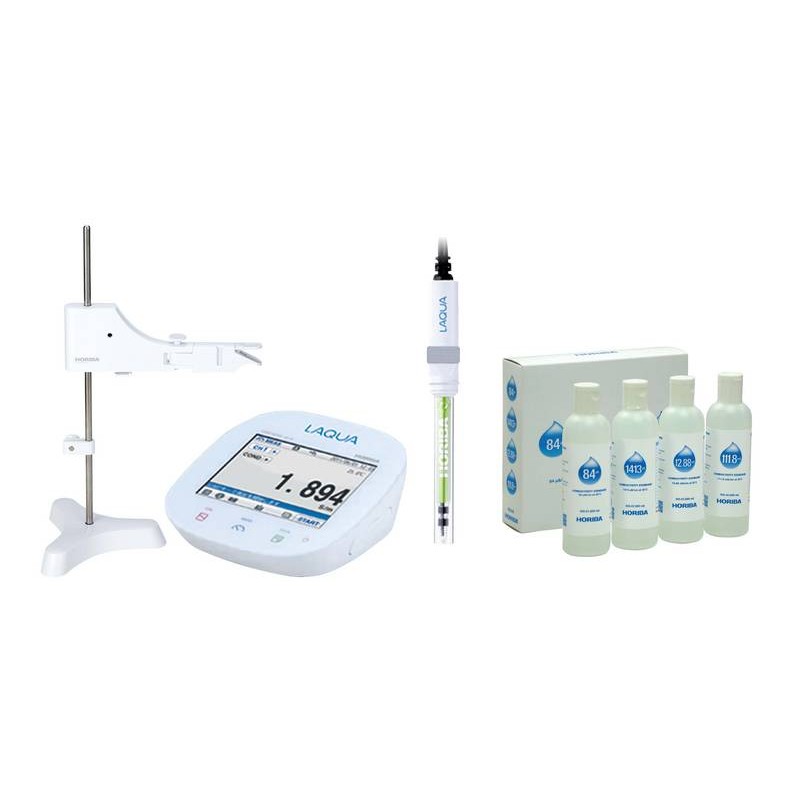

Contains:
• DS-72 meter
• Electrode stand
• Protection cover
• Power adaptor with 6 plugs
• Data acquisition software in USB
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
| Number of Channels | 2 channels |
| With Display | Color LCD |
| Communications | USB, RS232C, analog output |
| Memory Capacity | 2000 data |
| The Sensor measures: | pH/ORP/Ion/EC/R/TDS/Sal./Temp |
| Power Supply: | AC adaptor 100 240V, 50/60 Hz |
LAQUA DS-72 meter measures conductivity, resistivity, salinity, total dissolved solids (TDS) and temperature parameters and complies with industrial pharmacopoeia standards (JIS, USP, EP, JP and CP).
- Bench meter with large touchscreen color graphic LCD
- Easy-to-clean, elegant body
- GLP/GMP compliant, compatible with LAQUA 21 CFR Part 11 Software
- Switchable display - digital, graph, and analog
- Single-touch operations - tap, flick, and drag
- Smart navigation - on-screen support for calibration, application, inspection and troubleshooting via electronic user guide with coloured pictures
- Auto data log capable
- Customizable printout and auto-hold function for calibration and measurement
- Simultaneous connection to a compatible printer and computer
- Simultaneous data storage to meter and USB flash drive
- Built-in memory stores up to 2,000 data with sample ID for easy reference
- Data settings allow users to search (by date, parameter, or sample ID), view, delete, and even copy data from meter to USB flash drive
- Data output via USB to computer or USB flash drive or via RS232C to computer or printer
- Multi-language support (Japanese, English, Chinese, Korean, and Vietnamese)
- Meter password setting and up to 25 users registrations
- 2 years meter warranty
|
|
LAQUA DS-72 |
|---|---|
|
EC Range |
0.000 µS/cm to 19.99 mS/cm (k=0.1) 0.00 µS/cm to 199.9 mS/cm (k=1) 0.0 µS/cm to 1.999 S/cm (k=10) |
|
Resolution |
0.05% of full scale |
|
Accuracy |
± 0.6% of full scale (± 1.5% of full scale > 18.0 mS/cm) |
|
Reference Temperature |
15 to 30 ºC (adjustable) |
|
Temperature Coefficient |
0.00 to 10.00 % (adjustable) |
|
Cell Constants |
0.1 / 1.0 / 10.0 |
|
Calibration Points |
4 (Auto / Manual) |
|
Measurement Units |
Auto Ranging / Manual µS/cm, mS/cm, S/m |
|
TDS Range |
0.01 mg/L to 1000 g/L |
|
Resolution |
0.01 mg/L |
|
Accuracy |
± 0.1% of full scale |
|
TDS Curves |
EN27888 / Linear (0.40 to 1.0) / 442 / NaCl |
|
|
0.00 kΩ.cm to 199.9 MΩ•cm (k=0.1) 0.000 kΩ.cm to 19.99 MΩ•cm (k=1) 0.0 Ω.cm to 1.999 MΩ•cm (k=10) |
|
Resolution |
0.05% of full scale |
|
Accuracy |
± 0.6% of full scale (± 1.5% of full scale > 1.80 MΩ•cm) |
|
Salinity Range |
0.00 to 80.00 ppt / 0.000 to 8.000 % |
|
Resolution |
0.01 ppt / 0.001 % |
|
Accuracy |
± 0.2% of full scale |
|
Salinity Curves |
NaCl / Seawater |
|
Temperature Range |
30.0 to 130.0 ⁰C |
|
Resolution |
0.1 ⁰C |
|
Accuracy |
± 0.4 ⁰C |
|
Calibration Option |
Yes |
|
Navigation Function |
Yes |
|
Memory |
2000 |
|
Auto Data-Logging |
Yes |
|
Data Search |
Yes |
|
Custom Printing |
Yes |
|
Real Time Clock |
Yes |
|
Date / Time Stamp |
Yes |
|
Sample ID Input |
Yes |
|
Operator ID Input |
Yes |
|
Password Setting |
Yes |
|
Auto Stable / Auto Hold |
Yes |
|
Diagnostic Messages |
Yes |
|
Display |
Touchscreen color graphic LCD |
|
Languages |
English / Japanese / Chinese / |
|
Inputs |
BNC, phono, DC socket |
|
Outputs |
USB, RS232C, analog output |
|
Power Requirements |
AC adaptor 100 - 240V, 50/60 Hz |
|
Electrode Stand |
Stand-alone |
|
Weight |
700g |
|
Dimensions |
170 (W) x 174 (D) x 73 (H) mm |
