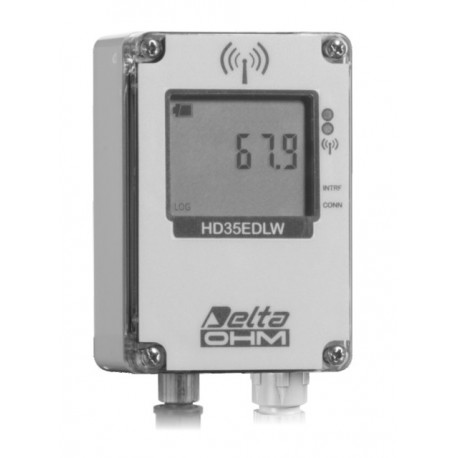

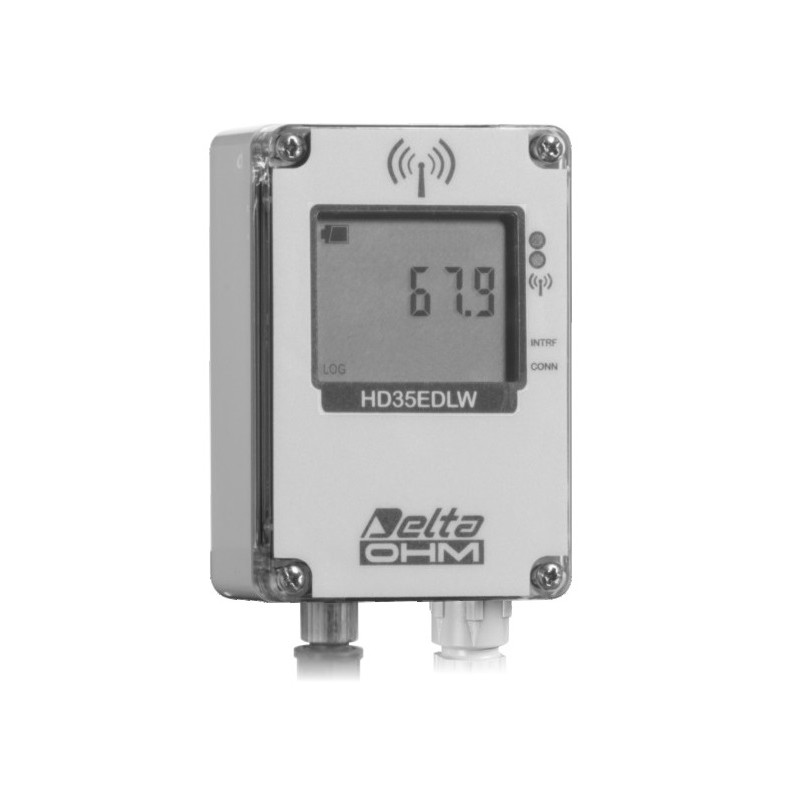

HD 35EDW DP TC Level and Rainfall Quantity Wireless Data Logger

Reference HD 35EDW DP TC

Manufacturer: Delta Ohm

Condition: New

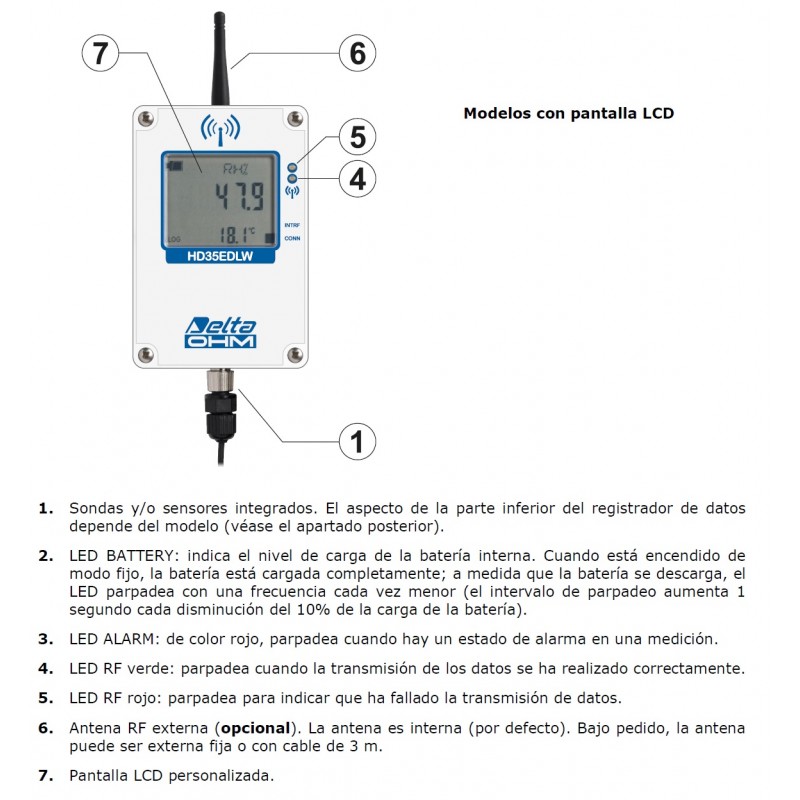

28,000 samples. Optional custom LCD display (option L).
Two inputs: one with M12 connector for the rain gauge and one with cable gland for the level sensor.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
RELATED PRODUCTS
Download

HD35 MANUAL Download (16.93M)

Level measuring range: 0 ... 1 bar, corresponding to 0 ... 10 m approx. for water.
Instrument operating temperature / humidity: -20 ... + 70 ° C / 0 ... 100% RH.
Calculated quantities: rainfall rate in mm / h, daily rainfall in mm.
Supplied with 3.6V non-rechargeable Li-SOCl2 battery (2 years typical life with 30 seconds logging interval and without repeaters). The level sensor HP712 ... and the rain gauge have to be ordered separately. The rain gauges HD2013 (area 400 cm2), HD2013R (area 400 cm2, with heating), HD2015 (area 200 cm2) and HD2015R (area 200 cm2, with heating) with resolution 0.1 - 0.2 or 0.5 mm.
