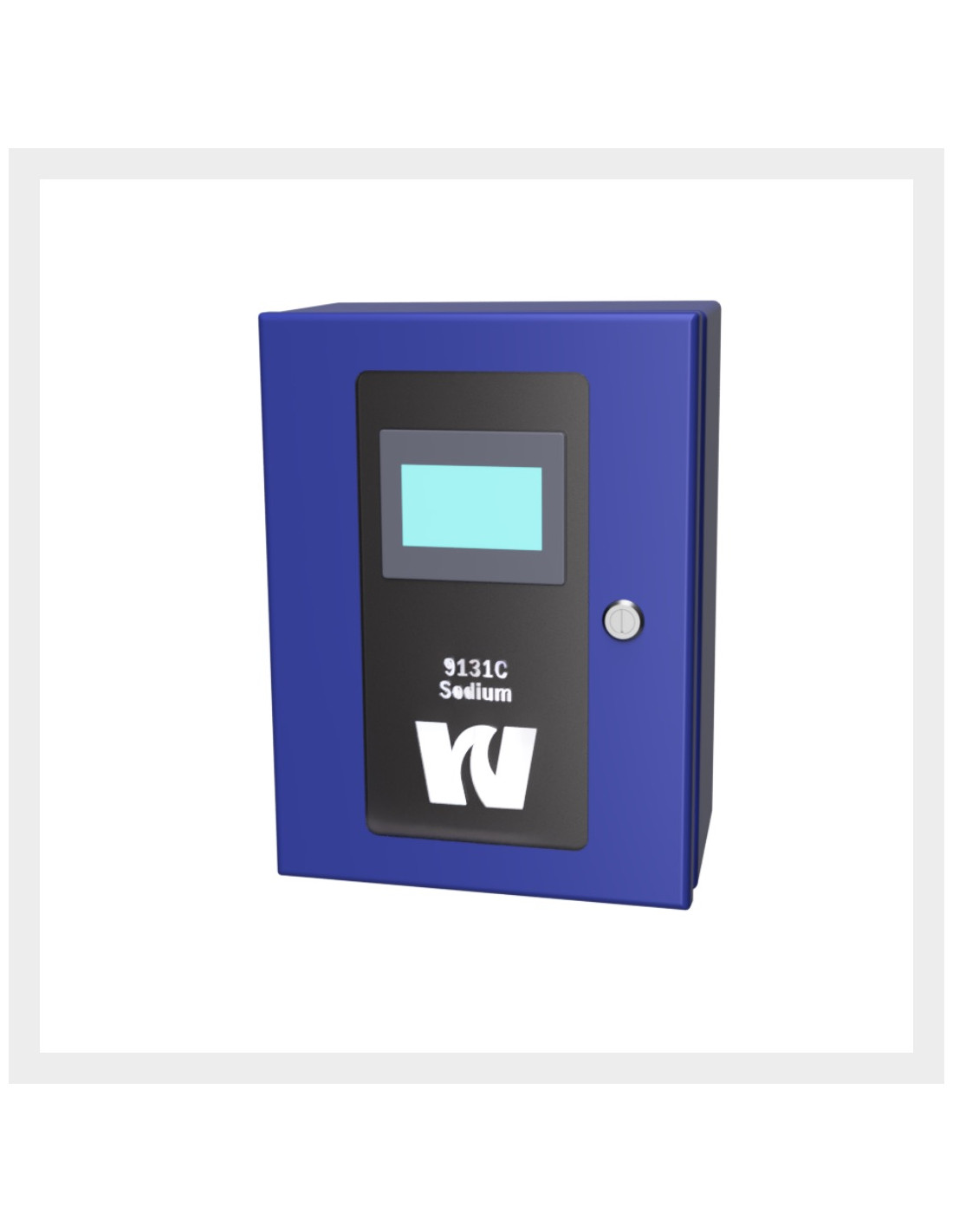

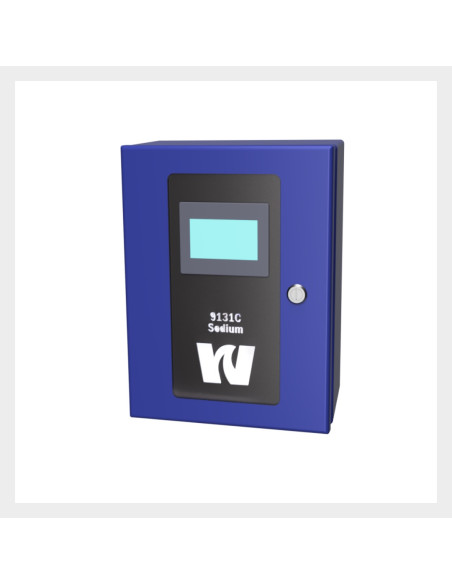

9131C Waltron compact sodium analyzer
Waltron 9131C compact sodium analyzer for online dissolved-sodium measurement in ultrapure water, with touchscreen interface, internal temperature compensation and datalogger.
9131C compact sodium analyzer
Waltron 9131C Sodium Analyzer combines an ultra-compact design with uncompromising dissolved-sodium analysis in ultrapure water. The official page positions it for make-up water, condensate, boiler feedwater and steam applications, with low total cost of ownership.
The instrument includes a color touchscreen interface, internal temperature compensation, menu-assisted manual calibration, internal USB datalogger and easy access to replacement electrodes and KCl reference solution. It can be used with ammonium hydroxide or DIPA buffers.
The 9131C provides a displayed range from 0.01 ppb to 10 ppm and an analysis range from 0.10 ppb to 10 ppm, with two isolated 4-20 mA outputs, RS-232/RS-485 MODBUS RTU communications and three configurable alarm contacts. Its compact format supports panel or wall mounting.
| Reference | 9131C. |
| Product | Compact online sodium analyzer for ultrapure water. |
| Parameter | Dissolved sodium. |
| Displayed range | 0.01 ppb - 10 ppm. |
| Analysis range | 0.10 ppb - 10 ppm. |
| Accuracy | +/-5 % of reading or +/-0.1 ppb, whichever is greater, within +/-5 deg C of calibration temperature. |
| Sample streams | 1. |
| Response time | 90 % of 1-10 ppb step in less than 4 minutes; 90 % of 100-1 ppb step in 5 minutes. |
| Calibration | Manual calibration with menu assist. |
| Compensation | Internal temperature compensation. |
| Analog outputs | Two isolated 4-20 mA current outputs. |
| Digital output | RS-232 and RS-485 with MODBUS RTU protocol. |
| Alarms | Three configurable voltage-free contacts, 2 A / 250 VAC non-inductive. |
| Datalogger | Internal datalogger with internal USB. |
| Sample | Temperature 5-55 deg C / 40-130 F; flow 150-400 ml/min; pressure 5-30 psig / 0.35-2.07 bar. |
| Sample composition | Sample filtered to 60 microns and free of film-forming compounds. |
| Power | 90-250 VAC. |
| Dimensions | 40 x 30 x 20 cm / 16 x 12 x 8 in. |
| Weight | 9 kg / 20 lb. |
| Mounting | Panel or wall. |
| Sample connection | 1/4 in OD / 0.635 cm Swagelok. |
| Reagents | Can be used with ammonium hydroxide or DIPA buffers. |
| Features | Color touchscreen, compact size, easy access to replacement electrodes and KCl reference solution. |
