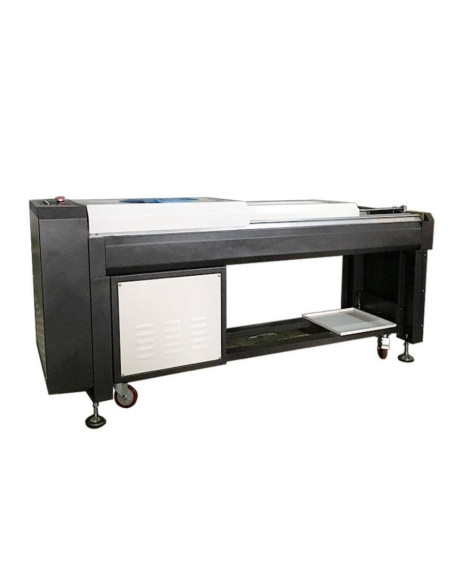

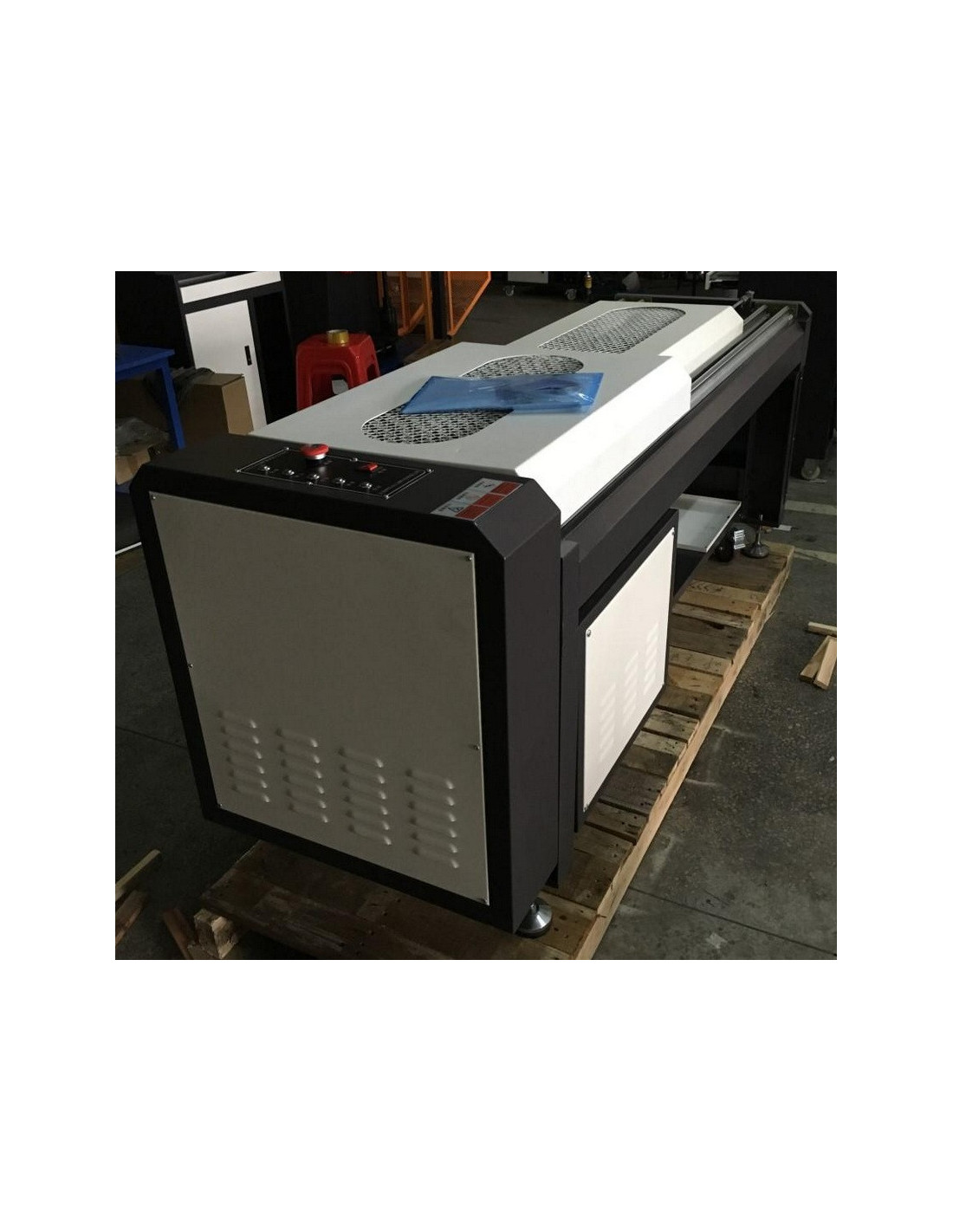

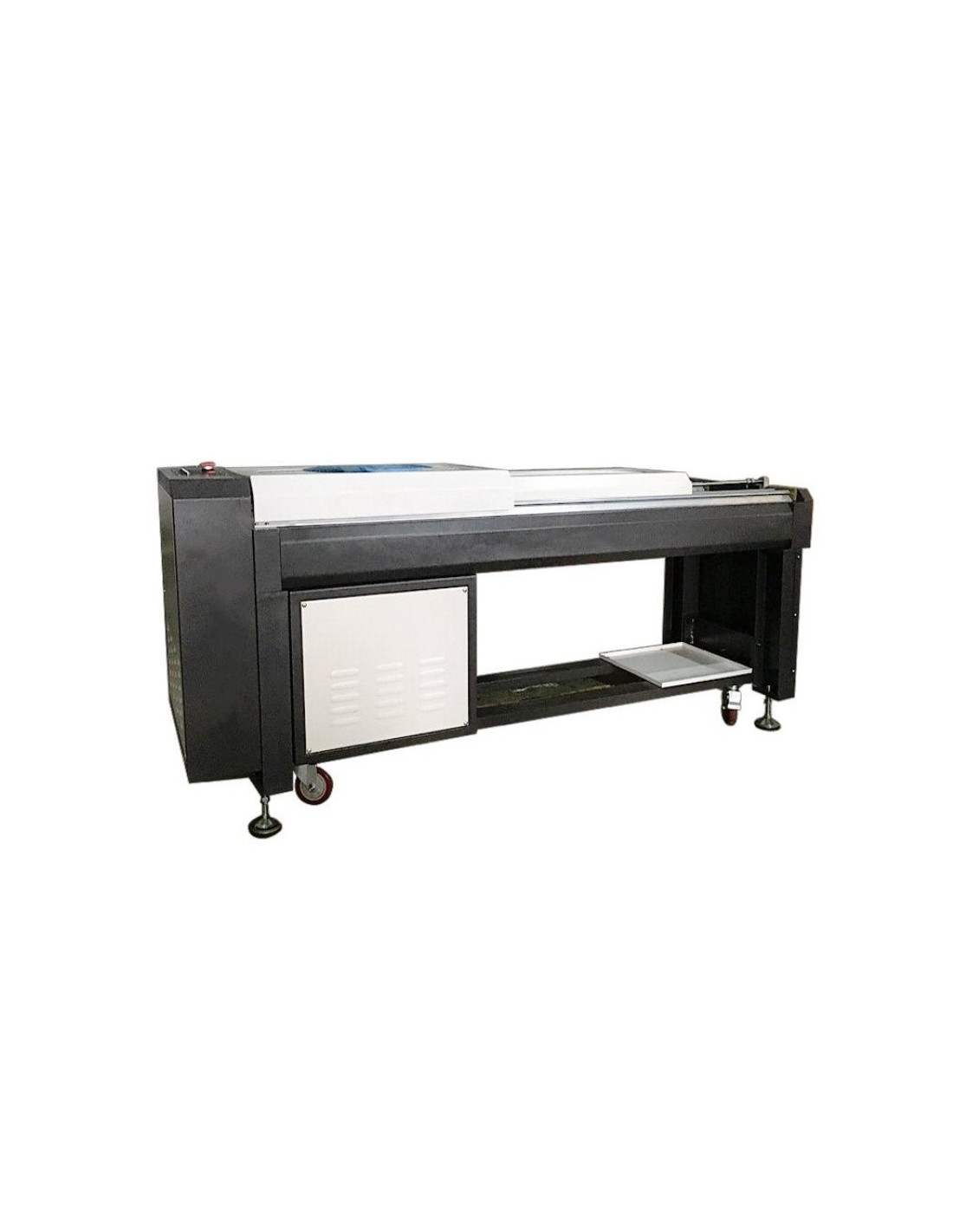

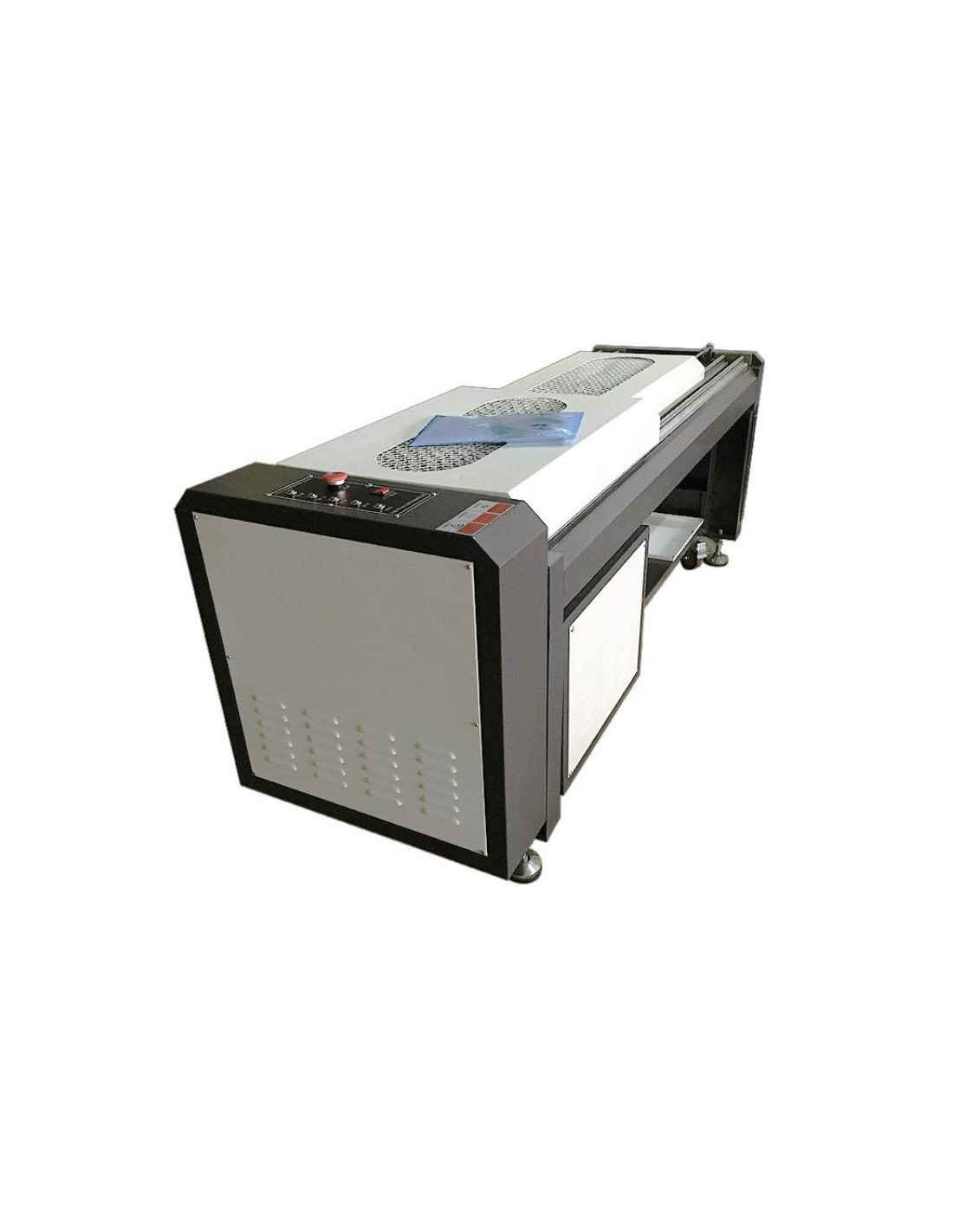

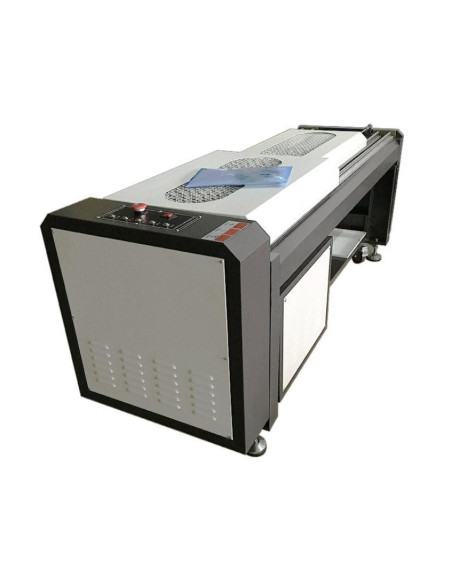

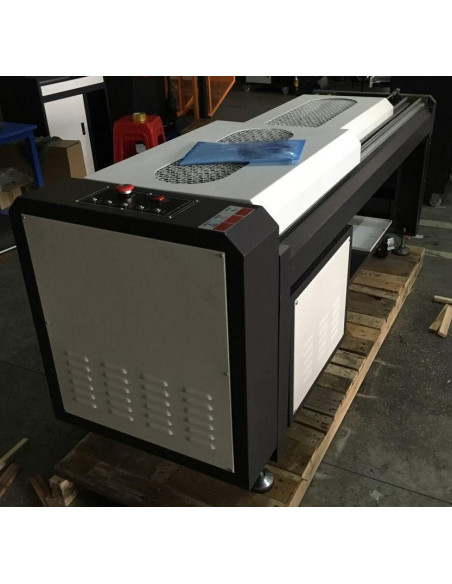

UTM-1005B 200KN Computer Servo Horizontal Universal Testing Machine

Name: UTM-1005B 200KN Computer Servo Horizontal Universal Testing Machine
Brand: GOTESTER
SKU: UTM-1005B

Reference: UTM-1005B - Manufacturer: GOTESTER

200KN computer servo horizontal universal testing machine for tensile, compression, bending, shear, and peel tests on metallic and non-metallic materials, with precise control and advanced software.

Ask for Quote

General
Specifications

Equipment summary

The UTM-1005B 200KN Computer Servo Horizontal Universal Testing Machine combines electronic technology and mechanical transmission to provide accurate load speed, broad force measurement range, high accuracy and sensitivity for load and displacement measurement and control, and support for constant-velocity loading and displacement testing. It is suitable for production-line quality control and for testing metallic and non-metallic materials with loads below 20 tons.

Main functions

This machine is mainly used for tensile, compression, bending, shear, peel, tear, or two-point extension testing of metallic and non-metallic materials such as rubber, plastic, wire and cable, optical fiber and cable, safety belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel, castings, plates, strips, and non-ferrous metal wire.

Main features

Photoelectric encoder for displacement measurement.
Embedded single-chip microcomputer controller with integrated measurement, control, calculation, and storage.
Automatic calculation of stress, elongation rate with extensometer, tensile strength, elastic modulus, and statistical results.
Automatic recording of maximum point, breaking point, designated point values, and elongation rate.
Dynamic curve display during testing and post-test data reanalysis, editing, and reporting through graphics processing.

Software features

Standard modular software covering GB, ASTM, DIN, JIS, BS and other testing standards.
Reusable product information input with formula-based automatic correction.
Dual report editor with Excel format support.
Exchangeable force and length units.
Automatic graph scale optimization and multiple comparison graphs, including load-displacement, load-time, displacement-time, stress-strain, and two-point extension maps.
Automatic or manual preservation of results with calculations for yield strength, tensile strength, extension, modulus, peel force, average force, energy, and other values.
Capability to output previous data.

Accessories and items tested

Standard accessories include one-year warranty documentation, operation instructions, a group of fixtures, tensile testing software, a branded computer, and a color printer. Common items tested include tensile stress, tensile strength, elongation at break, fixed stress, stress at break, tear strength, force at any point, elongation at any point, pull-out strength, and adhesion force peak.

Specifications

Model: UTM-1005B 200KN Computer Servo Horizontal Universal Testing Machine.
Maximum load: optional 2, 5, 10, or 20 tons.
Accuracy grade: 1 grade or 0.5 grade.
Effective measuring range: 0.2% to 100% for grade 1, 0.4% to 100% for grade 0.5.
Measuring accuracy: displayed value ±1% or ±0.5%.
Tester resolution: max load 1/200000 with constant resolution.
Load sensor: one standard sensor, with possibility to add more sensors.
Effective testing width: distance between test column and sensor center is 60 mm.
Effective tensile stroke: 1000 mm, 1200 mm, or 1400 mm, customizable.
Testing speed range: 0.1 to 150 mm/min.
Displacement measurement accuracy: tolerance ±0.5% or ±0.2%.
Measured deformation system: minimum span 10 mm, maximum deformation range 800 mm, extended minimum spans 25 mm, 50 mm, 100 mm with deformation ranges 5 mm, 10 mm, 25 mm.
Measured deformation accuracy: tolerance ±0.5% according to deformation selection.
Safety: electronic limit protection.
Testing platform movement: fast and slow two-speed control with jog.
Return function: manual or automatic return to initial position after test.
Overload protection: 10% automatic overload protection.
Fixture: one set of tensile fixtures.
Machine size: 4000 x 620 x 850 cm as listed by manufacturer.
Motor: Panasonic AC servo motor and drive.
Power supply: 220V, 50Hz.
Power: 0.4 kW depending on force demand and motor choice.
Weight: about 650 kg.
Units: KG, N, LB, TON exchangeable.
