Reference: Scientech2400GNH - Manufacturer: SCIENTECH TECHNOLOGIES

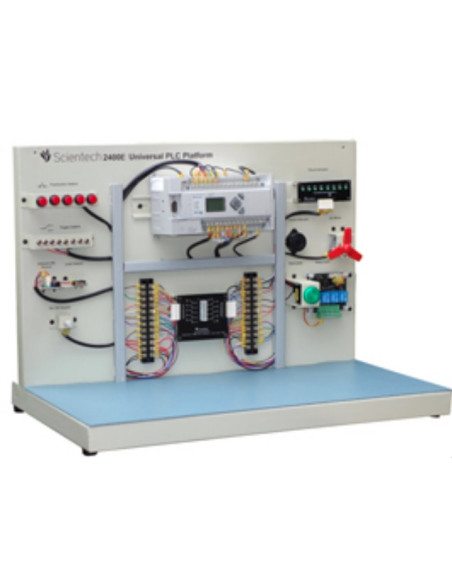

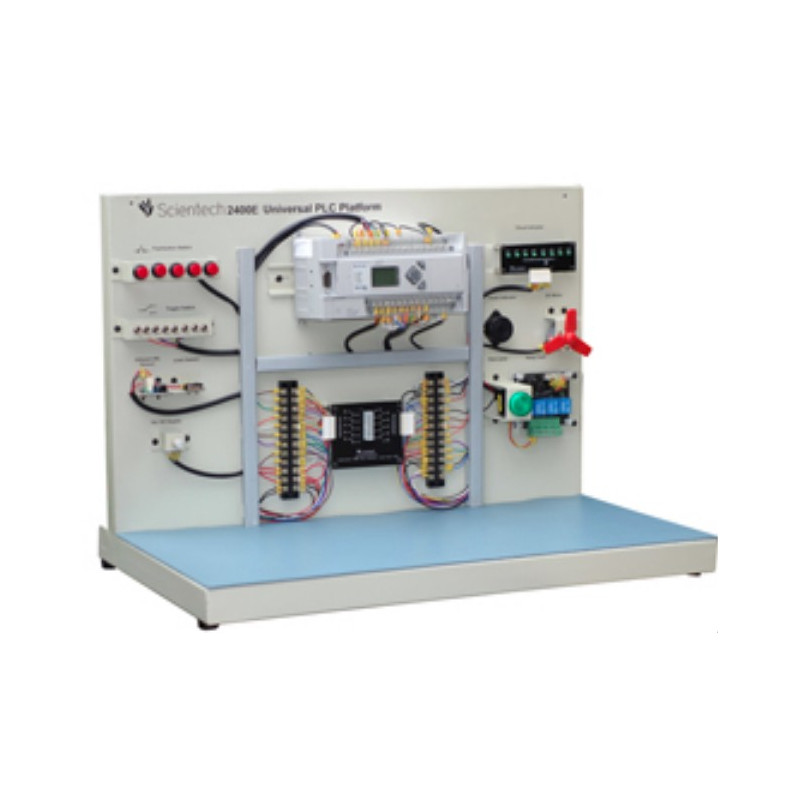

The SCientech 2400GNH universal PLC platform is an ideal configuration for studying the operation of PLCs and HMIs used for industrial applications. Scientech 2400GNH has been designed to learn and practice.

In today's environment of automation, the importance of PLC has rapidly increased. Scientech 2400GNH Universal PLC Platform is an ideal setup to study the working of PLC's and HMI used for industrial applications. Scientech 2400GNH has been designed to learn and practice.

Wiring of PLC with different inputs and outputs.

Push to ON switch, Toggle switch, Limit switch, IR Sensor as an input to the PLC.

Realistic Simulation that can drive visual indicators, audio indicators, and DC Motor, Pilot Lamp, Relay card.

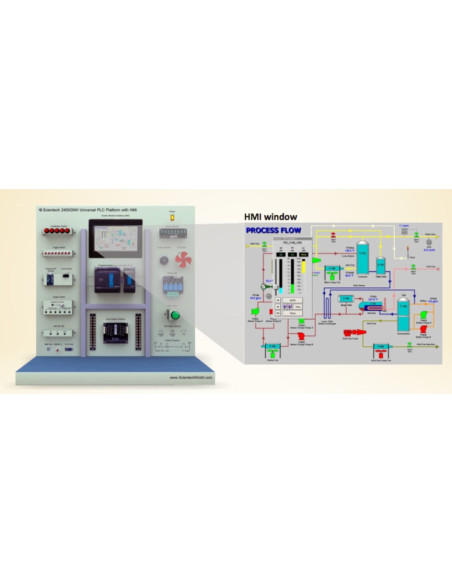

Communication of PLC with Human machine Interface (HMI) monitoring and controlling of PLC with HMI

7” Human Machine Interface (HMI)

PLC with 12 Digital Input , 8 Digital Output , 4 Analog Input and 2 Analog Output
Open platform to explore wide PLC applications
External RS485 Communication with PLC and HMI
Industrial look & feel
Toggle switches, Push to ON switch, Limit switch, IR Sensor , LED's , Buzzer, DC Motor, Pilot Lamp, Relay card

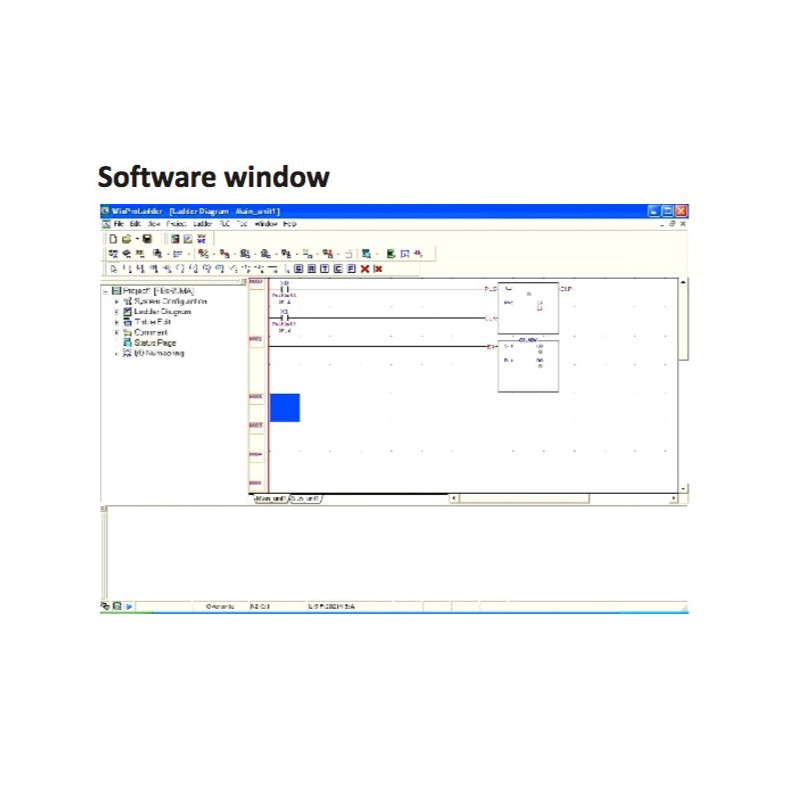

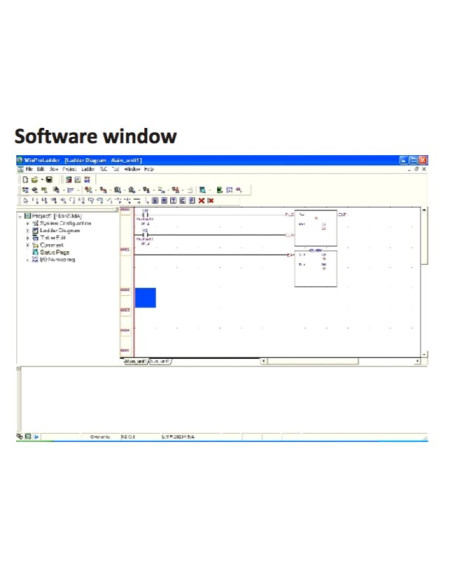

PC based Ladder programming
Extremely easy and student friendly software to develop different programs
Powerful instruction sets
Din rail mounting for PLC
High execution speed
Several sample Ladder programs
Choice of PLC and expansion modules
Easy downloading of programs
Practice Troubleshooting skills
Compact tabletop ergonomic design
Ready Experimental details
Robust Construction

Category: PLC

Scientech2400GNH

Download (975.5KB)
