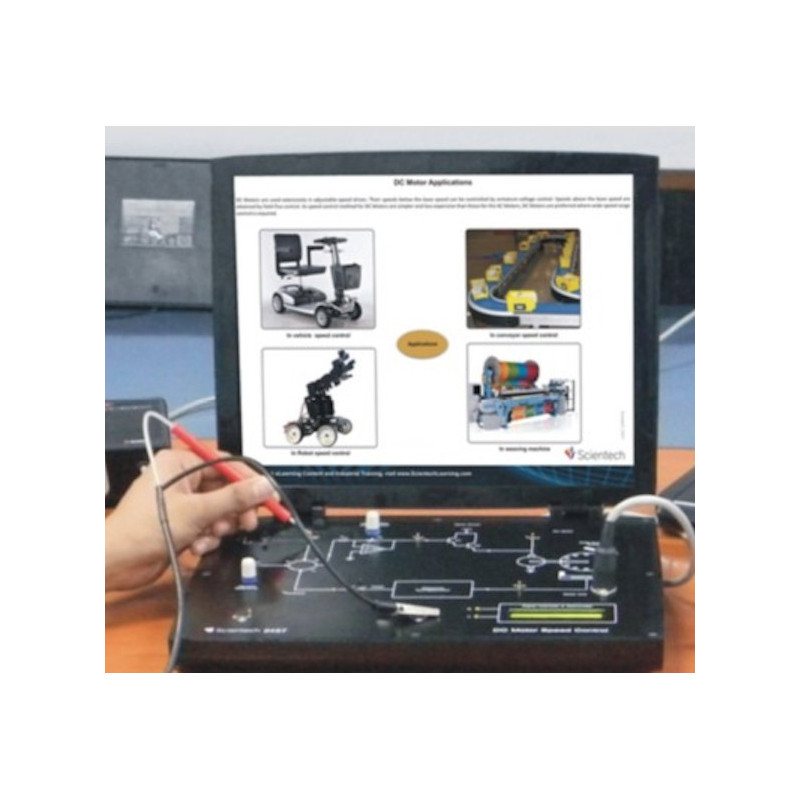

Scientech2457 TechBook for DC Motor Speed Control

Reference Scientech2457

Condition: New

Scientech's TechBooks are compact, easy-to-use learning platforms to provide a modern, portable, complete and practical way to learn Technology. Each TechBook is provided with detailed multimedia learning material that covers the basic theory, the step-by-step procedure for conducting the experiment and other useful information.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
SPECIFICATIONS
LIST OF EXPERIMENTS
Data sheet
Download

Category	Motors (AC/DC)

Scientech2457 Download (1.04M)

Scientech 2457 DC Motor Speed Control is built around a compact permanent magnet DC Motor. The system can readily be configured to control speed of DC Motor using Pulse Width Modulation technique. Motor load can be varied by using built in eddy current brake . Facilities are available to directly measure the principal performance features of the speed control system, viz, steady state error and load disturbance rejection, as a function of the forward path gain.

Closed loop motor speed control with eddy current brake
System contains PID Controller for controlling the speed of DC Motor
Slotted disk for speed measurement
Separate unit for Motor in a see through cabinet
LCD for speed and voltage display
Square wave generator
Precise signal conditioning
Sensitive, linear , stable and accurate
User friendly software
Easy to operate

Scope of Learning:

Study of effect of loading on the speed of the Motor in the open loop (Eddy Current Brake)
Effect of loading on the speed of the Motor in the closed loop
Study the speed control of a DC Motor
Study the speed control of a DC Motor using variable gain error amplifier
Study of steady state error variation with forward gain
Characteristics of tachometer with PC interface
Study the speed control of a DC Motor using variable gain error amplifier using PC interface
