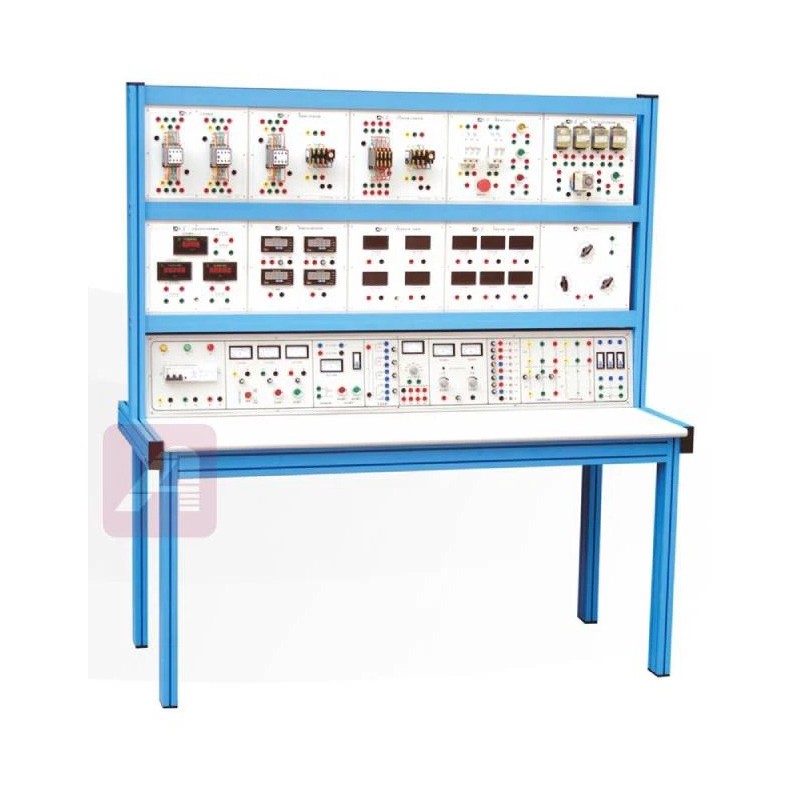

Name: YL-195B Electrical and Motor Control Training Equipment
Brand: Yalong Intelligent
SKU: YL-195B

Reference: YL-195B - Manufacturer: Yalong Intelligent

◆ The YL-195B Electrical and Motor Control Training Equipment adopts a modular structure and is designed according to current advanced manufacturing technology, common motors, and electrical circuit requirements.

◆ It is equipped with advanced multifunctional and visual measuring equipment for speed, torque, and power.

Ask for Quote

► Mobile frame: The hanging plate (YALONG standard hanging plate module) can be hung on the frame, extending it to complete various experiments. It also comes with a mobile cabinet, which facilitates the storage of necessary tools and experimental connection cables.

► The 380V three-phase power supply is isolated by an isolation transformer, and the power is supplied via three-phase power supply. It is equipped with an air switch with leakage protection and a fuse to ensure safety.

► It provides a basic platform for the comprehensive experiment with various AC/DC power supplies and basic instruments.

► The specified low-voltage motor is used, the DC motor is a DC servo motor. The pedestal adopts a precision guide connection method, providing flexible and precise coordination.

► The instrument used to measure rotational speed, torque, and mechanical power, displayed by three sets of compact 3.5-inch digital display tubes, is a YALONG patented product. Main power supply part: Includes 1 three-phase main power switch (with protection against electric leakage and short circuit), 3 fuses, 1 green pushbutton switch (with light), 3 V-headed pointer-type AC voltmeters, and 6 sheath bases. Module material: high-strength iron-sprayed plastics, the panel pattern and letter symbol are screen-printed with imported printing ink.

► Three-phase AC/DC adjustable power supply part: 1 DC 0-300V pointer-type voltmeter, 3 AC 0-300V digital voltmeters, 4 fuses, 1 red and green pushbutton switch, 1 sawsaw switch, and 8 sheath bases. Module material: high-strength iron-sprayed plastics, the panel pattern and letter symbol are screen-printed with imported printing ink.

► AC Adjustable Power and Single-Pole Switch: 1 DC 0-300V pointer-type voltmeter, 1 fuse, 1 red and green pushbutton switch each, 4 air switches, 1 rocker switch, 1 capacitance switch, 1 inductance switch, 16 base covers. Module material: high-strength iron-sprayed plastics, the panel pattern and letter symbol are screen-printed with imported printing ink;

► DC Power Part: 1 DC 0-30V pointer-type voltmeter, 1 DC 0-2A pointer-type ammeter, 2 LED indicator lights, 10 fuses, 2 potentiometers, 11 base covers. Module material: high-strength iron-sprayed plastics, the panel pattern and letter symbol are screen-printed with imported printing ink;

● Operating power: Three-phase, five-wire AC 380V ± 10%, 50Hz;

● Temperature: ≤ 10-40°C; Ambient humidity: ≤ 90% (25°C);

● Dimensions: (L*W*H) = 1600*850*1800mm;

● Total power consumption: ≤ 1.5KW;

● Safety protection: Grounding, lead protection, and insulated safety plugs, which comply with relevant GB standards. The material meets environmental standards.

● Physical Measurement of a DC Generator;

● Physical Measurement of a Separately Excited DC Motor;

● Investigating the Speed Regulation Characteristics of a Separately Excited DC Motor;

● Measuring the Mechanical Characteristics of a Series-Excited and Compound-Excited DC Motor;

● Physical Investigation of the Operational Characteristics of a Single-Phase Transformer;

● Parallel Operation of a Single-Phase Transformer;

● Recognizing and Wiring the Three-Phase Transformer's Link Group;

● Investigating the Working Performance of a Three-Phase Squirrel-Cage Induction Motor;

● Measuring the Mechanical Characteristics of a Three-Phase Squirrel-Cage Induction Motor;

● Investigating the Operating Characteristics of a Three-Phase Wound-Rotor Induction Motor;

● Investigating the Operating Characteristics of a Single-Phase Split-Phase Capacitor Induction Motor; 12. Investigating the Operating Characteristics of a Three-Phase Synchronous Motor;

● Positive and Negative Rotation Control Circuit of a Three-Phase Induction Motor;

● Automatic workstation round-trip control circuit;

● Sequential control circuit for a three-phase synchronous motor;

● Y-to-Delta control circuit for a three-phase synchronous motor;

● Dynamic braking circuit for a three-phase synchronous motor;

● Control and starting circuit for a three-phase wound-rotor synchronous motor;

● Electrical control circuit for a C620 lathe;

● Electrical control circuit for a M7130 surface grinder;
